TECHTOP NEMA Premium Eff. Motor, GR3-CI-TF-145TC-4-B-D-1.5, 1.5 HP For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

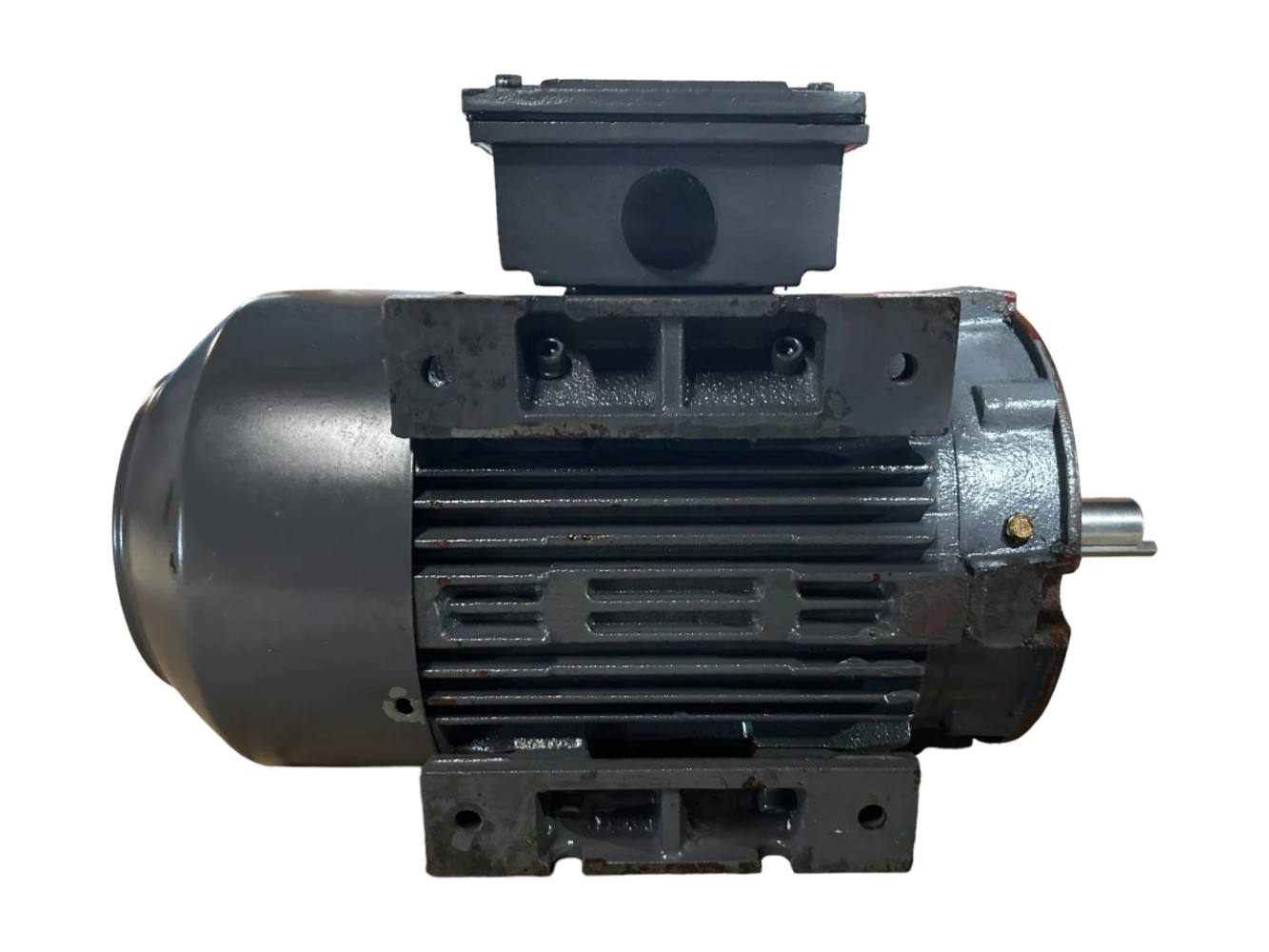

TECHTOP NEMA Premium Eff. Motor, GR3-CI-TF-145TC-4-B-D-1.5, 1.5 HP:
$164.99

TECHTOP NEMA Premium Eff. Motor, GR3-CI-TF-145TC-4-B-D-1.5, 1.5 HP, 208-230/460V, 4P (1800 RPM), TEFC, C-Flange Mounted, Cast Iron, 145TC Frame -USED No Box PRODUCT DISCLOSURE: All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

External Packaging has been subjected to smoke damages. Parts are inspected and cleaned if needed , prior to shipment. All parts are NEW/NEVER USED and fully functional.

Standard Features
- Inverter Rated - 15:1 Constant Torque
- MG 1 Part 31 Compliant for VFD use
- IP 55 Protection - 40°C Ambient Rating
- Dual Oversized Bearings
- 1045 Steel Shaft (through 326T), 4140 (326T & up)
- Multi mount Removable Feet through 326T
- One-Way Brass Condensation Drain
- 1.25 Service Factor to 50HP (1.15 for larger frames)
- Zerk Regreasable Bearings 254T & Larger
- Conduit Box is 90° Rotatable
- Double Lip Oil Seal on DE & ODE
- IVacuum Pressure Impregnated Varnish
- Tropicalization Winding Protection
- Nipple Seals Between Conduit Box & Body
- Rubber Slinger
- C & D Flanges Available
- Cast Iron Fan Covers Available on 364T & up
- Class F Insulation System with Class H Stator
- F1, F2, F0 Field Convertible ( Shipped F1)
- Class 1, Div 2, Groups A,B,C & D Certified
- EISA Compliant
Product Specs
hp 1.5 rpm 1800 phase 3 model GR3-CI-TF-145T-4-B-D-1.5 frame 145T volts 208-230/460 VAC enclosure TEFC poles 4
