Techtop 2 HP Electric Motor 1740 RPM 3 Phase 208-230/460V NEMA 56HC TEFC CB3-AL-:
$250.00

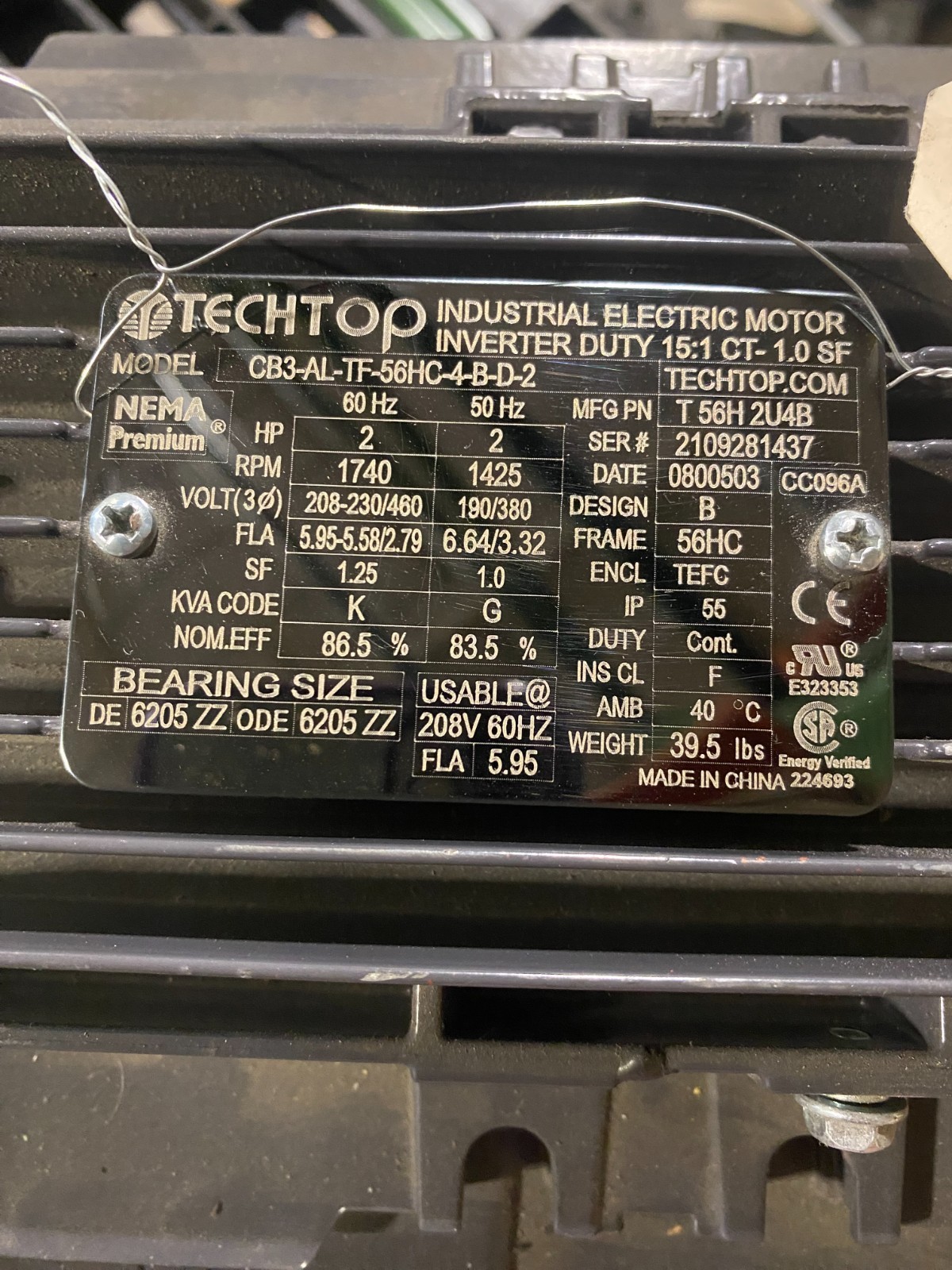

Techtop Cobra Line 2 HP Industrial Electric Motor.

Engineered for heavy-duty commercial and industrial applications, this versatile 3-phase motor delivers reliable performance with a standard 1740 RPM rating at 60Hz (208-230/460V) and dual-frequency capability reaching 1425 RPM at 50Hz (190/380V).

Built on a robust NEMA 56HC frame featuring a C-face mounting with removable feet, it allows for easy installation across a wide variety of equipment setups. The motor utilizes a Totally Enclosed Fan Cooled (TEFC) design with IP55 weather protection and Class F insulation, ensuring long-lasting operation even in harsh or demanding environments.

This model is VFD-compatible with a 15:1 constant torque rating, making it an ideal choice for machinery requiring precise variable speed control. Rated for continuous duty with a 1.25 service factor and NEMA Premium efficiency (86.5% nominal), it delivers smooth, energy-efficient power for pumps, blowers, compressors, and general machinery replacements.
