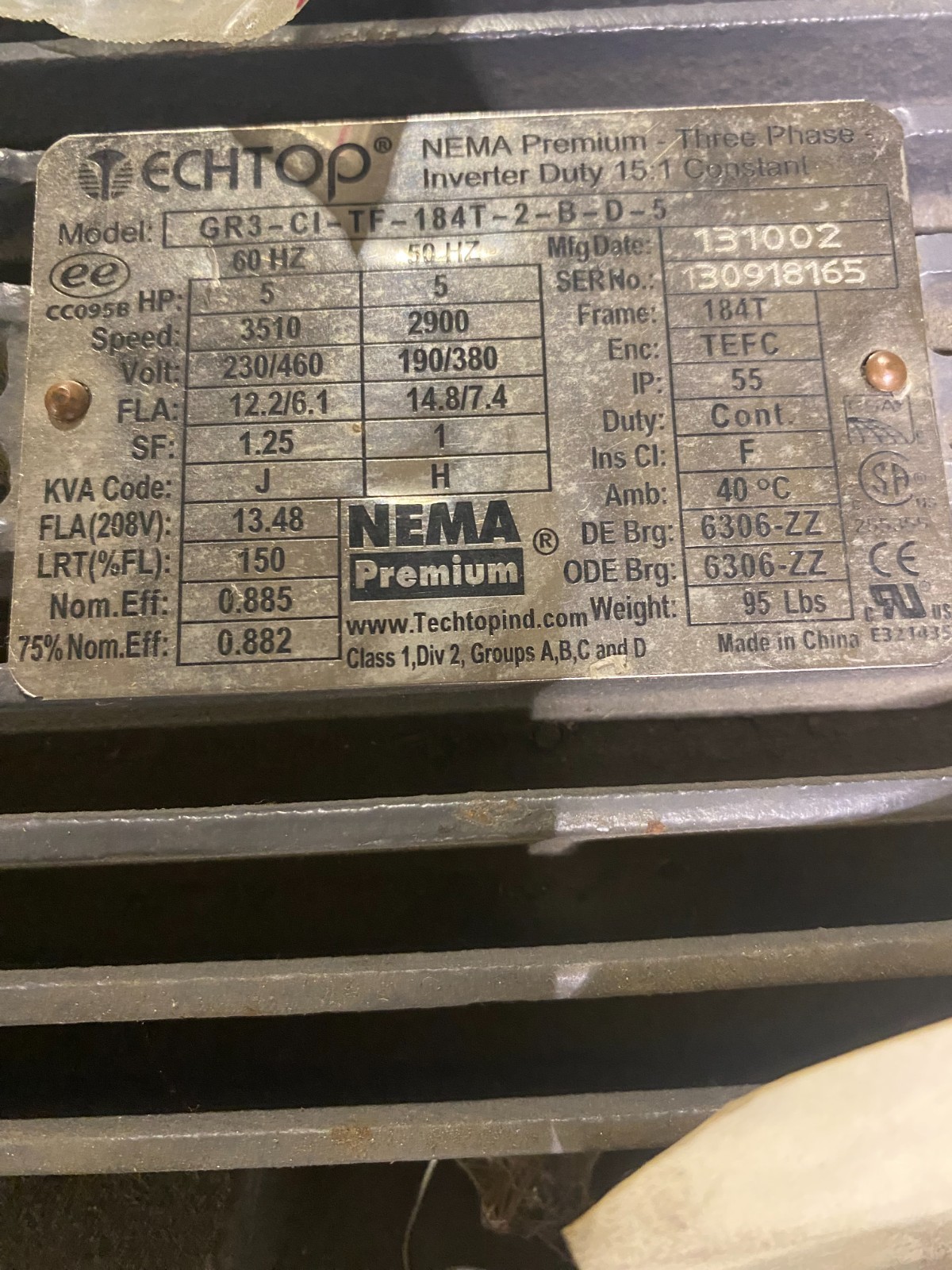

Techtop 5HP 3510RPM 230 460V 184T NEMA Premium 3 Phase Electric Motor:
$275.00
Techtop 5 HP 3-Phase Heavy Duty Industrial Electric Motor
Up for sale is a high-efficiency Techtop 5 HP Industrial Electric Motor (Model: GR3-CI-TF-184T-2-B-D-5). Built with a rugged cast-iron frame and TEFC (Totally Enclosed Fan Cooled) enclosure, this motor is designed for severe duty applications, industrial machinery, pumps, air compressors, and material handling systems.
Key Specifications & Technical Data:
• Brand: Techtop
• Model Number: GR3-CI-TF-184T-2-B-D-5
• Horsepower (HP): 5 HP
• Phase: 3 Phase (AC)
• Synchronous Speed: 3510 RPM @ 60Hz (2900 RPM @ 50Hz)
• Voltage Rating: 230/460 V @ 60Hz (190/380 V @ 50Hz)
• Full Load Amps (FLA): 12.2 / 6.1 A @ 60Hz (13.48 A @ 208V)
• NEMA Frame Size: 184T
• Shaft Diameter: 1-1/8\" (1.125 in) Keyed Shaft
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• IP Rating: IP55 (Dust & Splash Protected)
• Efficiency: NEMA Premium Efficient (Nominal Eff: 88.5%)
• Service Factor (SF): 1.25 @ 60Hz / 1.0 @ 50Hz
• Inverter Duty Rating: 15:1 Constant Torque
• Insulation Class: Class F
• NEMA Design: Design B
• Hazardous Location Rating: Class 1, Division 2 (Groups A, B, C, D)
• Duty Cycle: Continuous (CONT)
