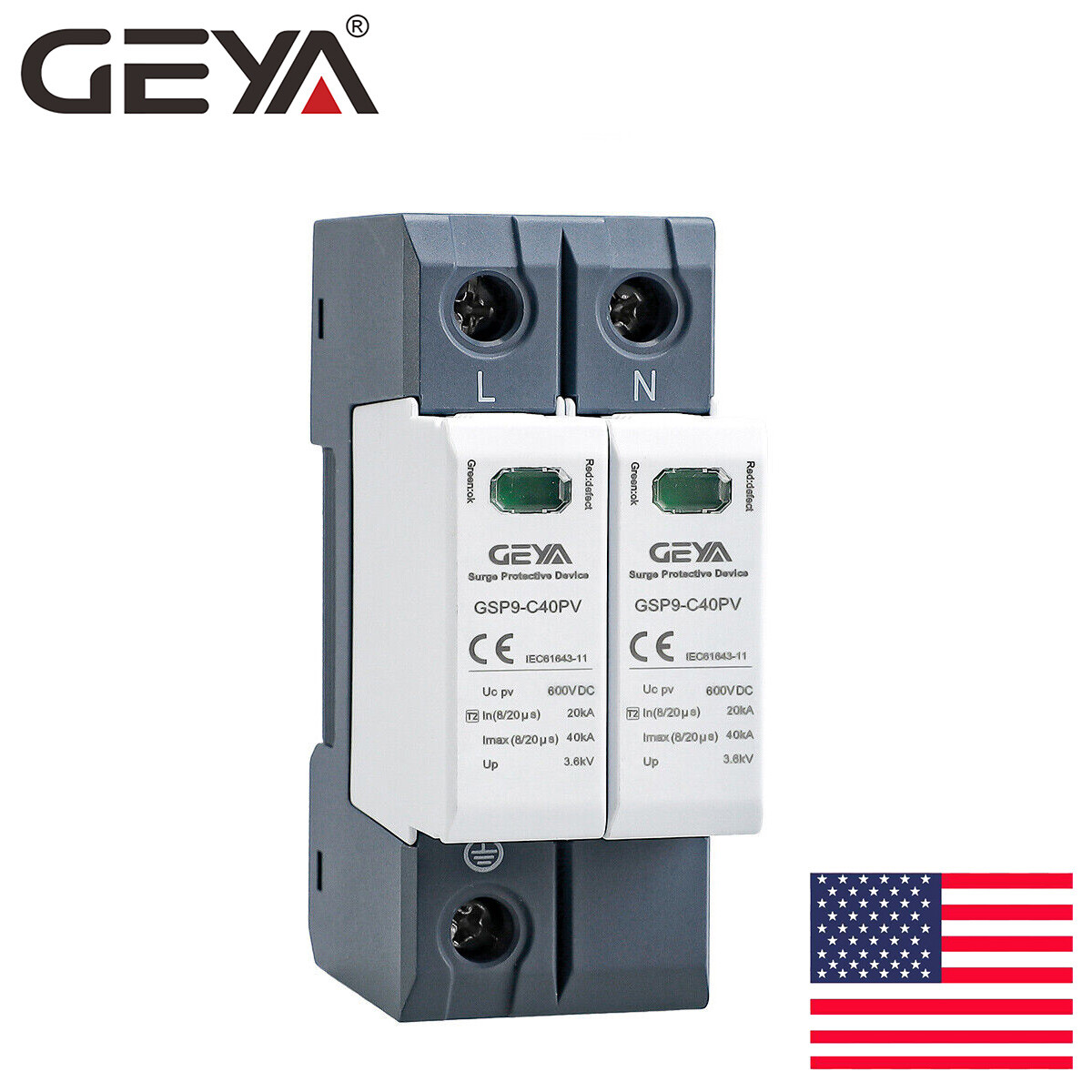

GEYA Surge Protector Protective Device DC 600V 2P 40kA Lighting Arrester Device:
$20.19

Store Categories Store Categories

Time Relay
Single Function Time Relay
Multi Function Time Relay
On/Off Asymmetric Cycler
Delay On Star/Delta
Delay Off Without Supply Vol
Double Delay Time Relay
Staircase Switch
Bluetooth Time Relay
Forward and reverse time relay
Monitoring Relay
Single Phase Voltage Relay
3 Phase Voltage Relay
Current Monitoring Relay
Level Control Relay
Temperature Control Relay
Light Control &Twlight relay
Memory&Latching Relay
Intermediate&Auxiliary Relay
Solid State Relay
Electromagnetic Relay
Voltage Protector
Transfer Switch
PV Soler <-> City Power
Grid Power <-> AC Generator
Manual changeover switch
Circuit Breaker
AC MCB
DC MCB
Type AC RCD RCCB
Type AC-S RCD RCCB
Type A RCD RCCB
Type A-SI RCD RCCB
Type B RCD RCCB
RCBO
Isolator-Main Switch
DPN MCB
MCCB
AFDD
MCB Recloser
RCCB Recloser
MPCB
WIFI MCB
WIFI RCCB
WIFI RCBO
PV Isolation switch
Surge Protection Device
AC SPD
DC SPD
AC Contactor
Automatic Household Contactor
Manual Household Contactor
Industrial Contactor
Relay Module PLC
Interface Relay Module (T73)
1NO1NC plug-in relay module
OMRON 1NO1NC Plug-in Type
OMRON 1NO1NC with Fuse
OMRON 2NO2NC Plug-in Type
Slim Relay Module PLC 6.2mm
Current Transformer
Photocell Switch
Proximity Switch
Digtal Timer Switch
Mechanical Timer Switch
Solar Storage system
Distribution Box
Junction Box
Plastic Distribution Box
Electrical accessories
Cable Glands
PG type nylon cable glands
Big Sale Clearance
GAEYAELE
10 PCS of Items
Meter
Voltage Meter
Current Meter
HZ Meter
Voltage&Current&HZ Meter
Home & Garden
Cutting Boards
Other

DC Surge Arrestor for PV GSPV8 Series

Product Description

This link is for US & PR,If you from other country or you need other voltage,Please click here.

Application

This DC surge protective device is applied low voltage standard IEC EN 61643-11 to protect against DC power line
system and other equipment from over voltage and instantaneous over voltage damage. Widely used in photovoltaic
comber box, power inverter, DC distribution cabinet etc. It has advantages of large discharge current, fast respond
time, low residual voltage. Max. PV voltage up to UCPV ≤1000V dc.

Main features

1. High discharge capacity, quick response, module pluggable;
2. Fast response time, din rail installation;
3. Double thermal disconnection devices, provide more reliable protection;
4. Green window means normal, red means defect, need to change module;
5. Remote alarm terminal optional.
6. T1+T2 surge protection.

Technical parameter

Model GSP9-C40PV Test standard IEC/EN 61643-11;GB18802.11 IEC test classification T1+T2/Class I+ II Max. PV voltage [ Uc pv ] 600/1000/1500V Nominal discharge current (8/20µs) 20kA Maximum discharge current(8/20µs) 40kA Iimp current (10/350µs) 6.25kA Poles 2P,3P Voltage protection level Up pv 2.6kV,3.6kV Response time Ta 25ns Connecting cable 4mm2(L-N); 6mm2(PE) Method of Installation 35mm Din Rail Matched fuse or circuit breaker 32A Type of remote signaling contact Switching contact(Optional) C+NC: Normally closed C+NO: Normally open C: Common contact Switching capacity AC:250V/0.5A DC:250V/0.1A,125V/0.2A,75V/0.5A Cross-sectional area for remote signal
contact Max. 1.5mm2 solid / flexible Operating temperature range 40°C...+80°C

Packing

Packaging containing: SPD *1 PCS & Rail 10mm *1 PCS
