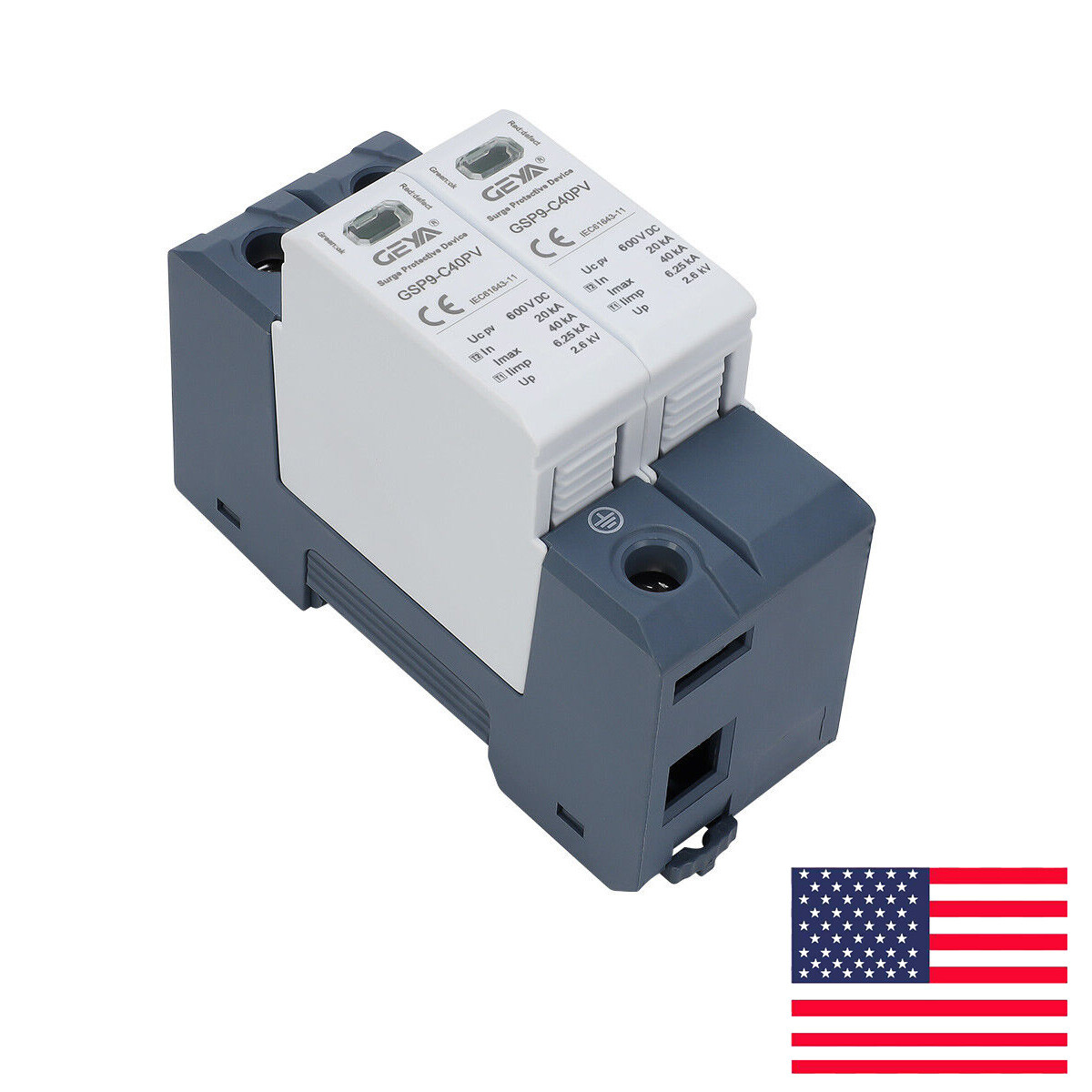

GEYA Solar PV DC SPD 2Pole 600V Surge Protector Lighting Arrester Device 40kA:
$18.16

Store Categories Store Categories

Time Relay
Single Function Time Relay
Multi Function Time Relay
On/Off Asymmetric Cycler
Delay On Star/Delta
Delay Off Without Supply Vol
Double Delay Time Relay
Staircase Switch
Bluetooth Time Relay
Forward and reverse time relay
Mini Circuit Breaker
4.5KA AC MCB
DC MCB
6KA AC MCB
RCCB Recloser
MCB Recloser
Type AC RCD RCCB
Type AC-S RCD RCCB
Type A RCD RCCB
Type B RCD RCCB
RCBO
Isolator-Main Switch
DPN MCB
MCCB
AFDD
MPCB
WIFI MCB
WIFI RCCB
WIFI RCBO
PV Isolation switch
Transfer Switch
Grid Power As Main power
Solar Power as Main power
Manual Changeover Switch
Monitoring Relay
Single Phase Voltage Relay
3 Phase Voltage Relay
Current Monitoring Relay
Level Control Relay
Temperature Control Relay
Light Control &Twlight relay
Memory&Latching Relay
Intermediate&Auxiliary Relay
Solid State Relay
Electromagnetic Relay
Voltage Protector
Surge Protection Device
AC SPD
DC SPD
Contactor
AC Contactor
DC Contactor
Relay Module PLC
Interface Relay Module (T73)
1NO1NC plug-in relay module
OMRON 1NO1NC Plug-in Type
OMRON 1NO1NC with Fuse
OMRON 2NO2NC Plug-in Type
Slim Relay Module PLC 6.2mm
Photocell Switch
Digtal Timer Switch
Mechanical Timer Switch
Enclosure
Big Sale Clearance
GAEYAELE
PV Bombined Box
10PCS of Items
Electrical accessories
Meter
Voltage Meter
Current Meter
HZ Meter
Voltage&Current&HZ Meter
Home & Garden
Cutting Board
Other

DC Surge Arrestor for PV GSPV8 Series

Product Description

This DC surge protective device is applied low voltage standard IEC EN 61643-11 to protect against DC power line
system and other equipment from over voltage and instantaneous over voltage damage. Widely used in photovoltaic
comber box, power inverter, DC distribution cabinet etc. It has advantages of large discharge current, fast respond
time, low residual voltage. Max. PV voltage up to UCPV ≤1000V dc.

Main features

1. High discharge capacity, quick response, module pluggable;
2. Fast response time, din rail installation;
3. Double thermal disconnection devices, provide more reliable protection;
4. Green window means normal, red means defect, need to change module;
5. Remote alarm terminal optional.
6. T1+T2 surge protection.

Technical parameter

Model GSP9-C40PV Test standard IEC/EN 61643-11;GB18802.11 IEC test classification T1+T2/Class I+ II Max. PV voltage [ Uc pv ] 600/1000/1500V Nominal discharge current (8/20µs) 20kA Maximum discharge current(8/20µs) 40kA Iimp current (10/350µs) 6.25kA Poles 2P,3P Voltage protection level Up pv 2.6kV,3.6kV Response time Ta 25ns Connecting cable 4mm2(L-N); 6mm2(PE) Method of Installation 35mm Din Rail Matched fuse or circuit breaker 32A Type of remote signaling contact Switching contact(Optional) C+NC: Normally closed C+NO: Normally open C: Common contact Switching capacity AC:250V/0.5A DC:250V/0.1A,125V/0.2A,75V/0.5A Cross-sectional area for remote signal
contact Max. 1.5mm2 solid / flexible Operating temperature range 40°C...+80°C

Packing

Packaging containing: SPD *1 PCS & Rail 10mm *1 PCS

More SPD for you consider

AC Type Model kA Pole Voltage Link GSP9-DP40 1P+N 20-40kA 1P+N 275V https://www..com/itm/115939485134 GSP9-DP40 3P+N 20-40kA 3P+N 275V https://www..com/itm/115939523293 GSP9-C40 1P 20-40kA 1P 275/385/400/440V https://www..com/itm/115939546216 GSP9-C40 2P 20-40kA 2P 275/385/400/440V https://www..com/itm/115940316514 GSP9-C40 3P 20-40kA 3P 275/385/400/440V https://www..com/itm/115940337437 GSP9-C40 4P 20-40kA 4P 275/385/400/440V https://www..com/itm/115940337437 GSP9-12.5 1P+N/2P 12.5kA 50kA 1P+N/2P 275V https://www..com/itm/115940388950 GSP9-12.5 3P+N/4P 12.5kA 50kA 3P+N/4P 275V https://www..com/itm/115940393787 DC Type Model kA Pole Voltage Link GSP9-C40PV 2P 20-40kA 2P 600/1000VDC https://www..com/itm/115587883322 GSP9-C40PV 3P 20-40kA 3P 1000/1500VDC

Enclosure (IP 65) Link 5/8/12/WAY https://www..com/itm/395031778179
