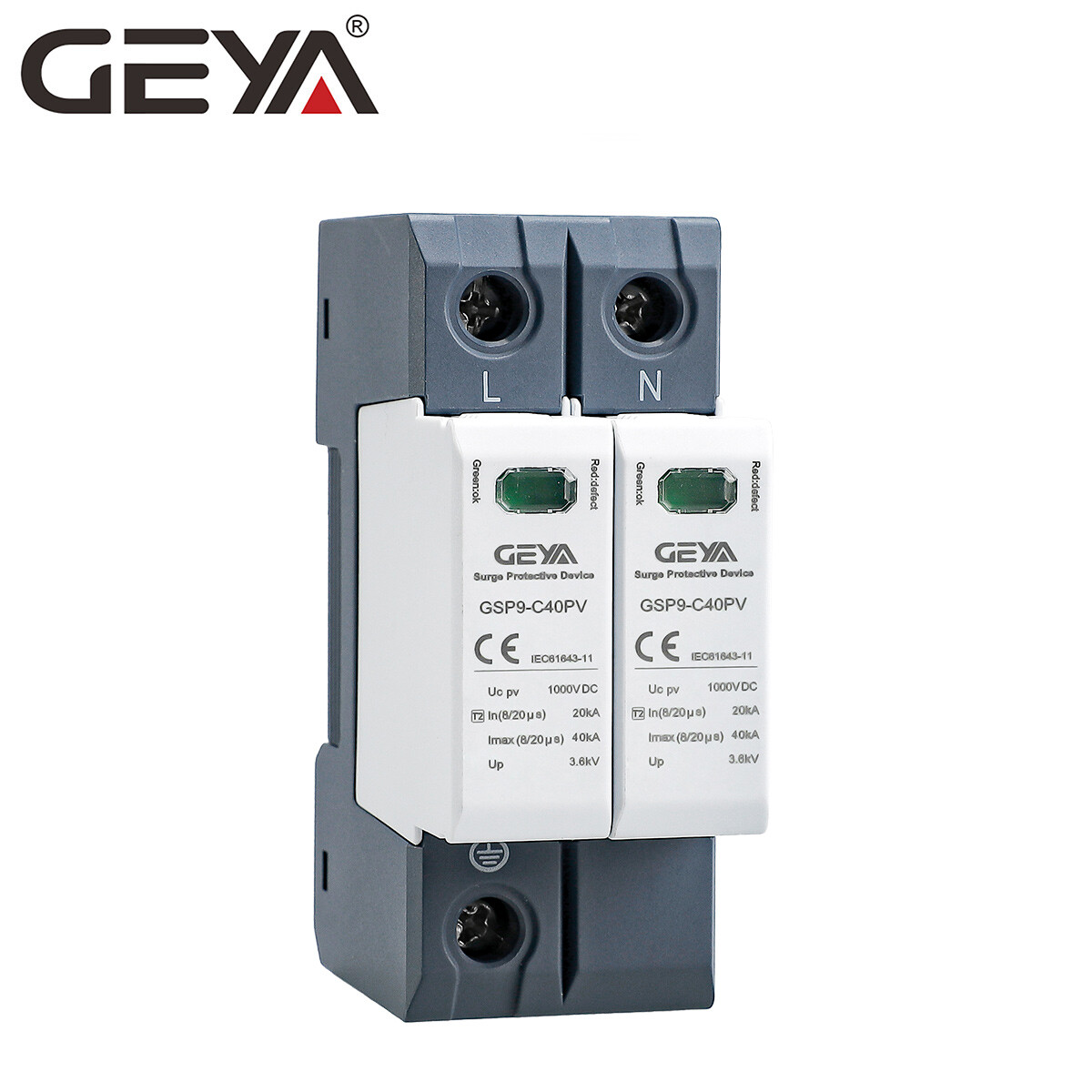

DC Surge Arrestor for PV GSP9-C40PV Series

Product Description

If you need products is equited remote signal contacts, please contact me

Application

This DC surge protective device is applied low voltage standard IEC EN 61643-11 to protect against DC power line
system and other equipment from over voltage and instantaneous over voltage damage. Widely used in photovoltaic
comber box, power inverter, DC distribution cabinet etc. It has advantages of large discharge current, fast respond
time, low residual voltage. Max. PV voltage up to UCPV ≤1000V dc.

Main features

1. High discharge capacity, quick response, module pluggable;
2. Fast response time, din rail installation;
3. Double thermal disconnection devices, provide more reliable protection;
4. Green window means normal, red means defect, need to change module;
5. Remote alarm terminal optional.
6. T1+T2 surge protection.

Technical parameter

Model GSP9-C40PV Test standard IEC/EN 61643-11;GB18802.11 IEC test classification T1+T2/Class I+ II Max. PV voltage [ Uc pv ] 600/1000/1500V Nominal discharge current (8/20µs) 20kA Maximum discharge current(8/20µs) 40kA Iimp current (10/350µs) 6.25kA Poles 2P,3P Voltage protection level Up pv 2.6kV,3.6kV Response time Ta 25ns Connecting cable 4mm2(L-N); 6mm2(PE) Method of Installation 35mm Din Rail Matched fuse or circuit breaker 32A Type of remote signaling contact Switching contact(Optional) C+NC: Normally closed C+NO: Normally open C: Common contact Switching capacity AC:250V/0.5A DC:250V/0.1A,125V/0.2A,75V/0.5A Cross-sectional area for remote signal
contact Max. 1.5mm2 solid / flexible Operating temperature range 40°C...+80°C

Packing

Packaging containing: SPD *1 PCS & Rail 10mm *1 PCS
