50' Belden 9314 14 AWG 1 Pair Shielded PLTC Instrumentation Cable 300V For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

50' Belden 9314 14 AWG 1 Pair Shielded PLTC Instrumentation Cable 300V:
$275.00

HomeView All ListingsStore PoliciesNewsletterresponseContact UsStore Categories

Aluminum URD Cable
Aluminum Service Drop Cable
Aluminum XHHW-2 Wire
Aluminum XLP USE-2
Aluminum SER
Alpha Wire
Belden Cable
Bus Drop Cable
Copper SER
Copper THHN THWN-2 Wire
Copper XHHW-2 Wire
Copper XLP USE-2
Diesel Locomotive Cable
Festoon Cable
Fire Alarm Cable
High Temperature Wire
Jumper Cable
Type G & GG-C
Thermostat Cable
SOOW Power Cable
NM-B Wire
Security Fire Alarm Cable
SIS Switchboard Wire
Solar Photovoltaic PV Wire
Stage Lighting Cable
Submersible Pump Cable
Tray Cable
Type W Power Cable
UF-B Cable
Welding Cable

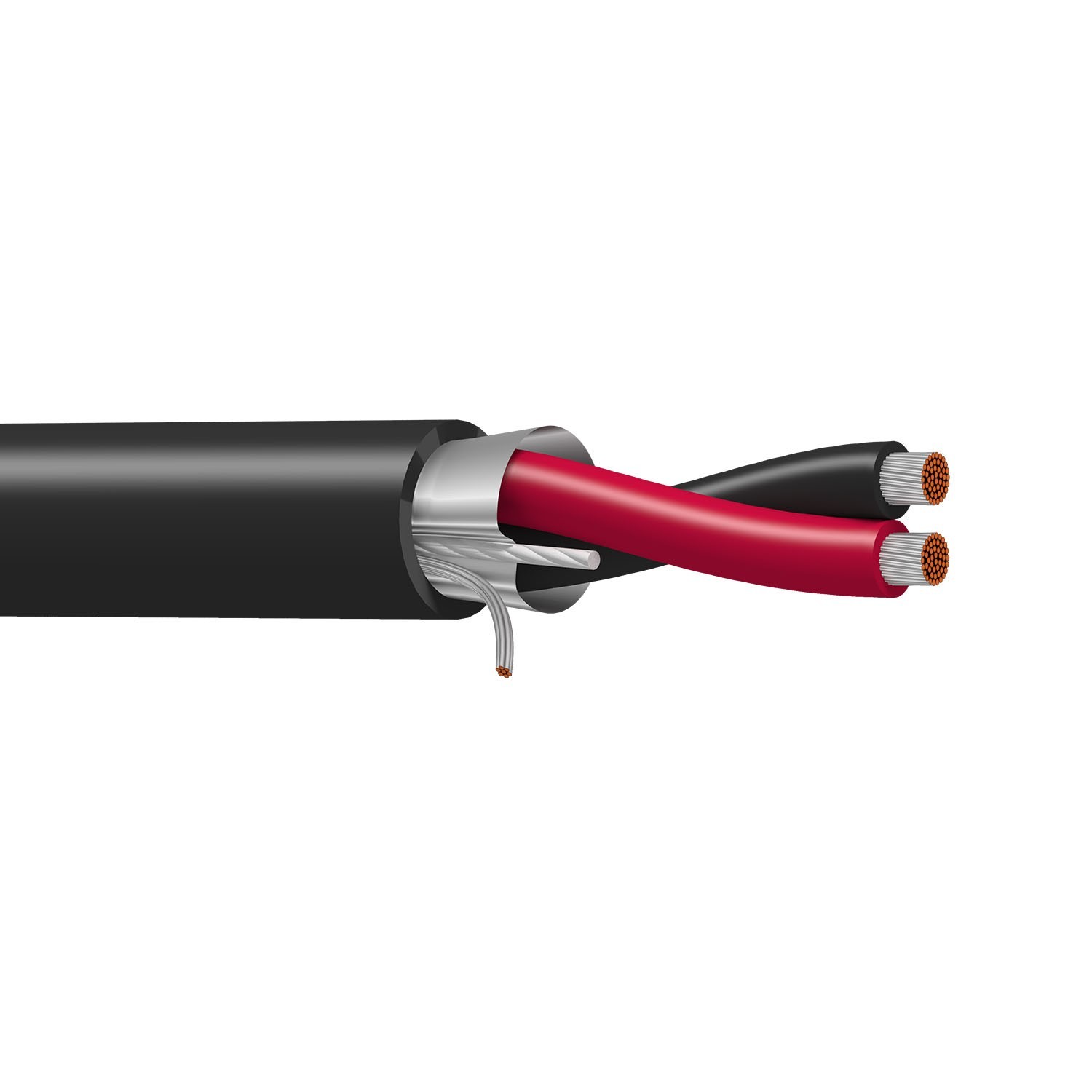

50' Belden 9314 14 AWG 1 Pair Shielded PLTC Instrumentation Cable 300V Click Thumbnails to EnlargeDESCRIPTION

• Belden 9314 14 AWG 1 Pair Overall Shielded PLTC Instrumentation Cable 300V

APPLICATION

• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

CONDUCTOR

• Tinned Copper

INSULATION

• PolyvinylChloride(PVC)

OUTER SHIELD

• Shield Type:Tape,Material:Bi-Laminate (Alum+Poly),Coverage:100%,Drainwire:16 AWG

JACKET

• Polyvinyl Chloride (PVC)

STANDARDS

•Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
•Flammability / Reaction to Fire: UL 1685 UL Loading, T-29-520, IEEE 1202, FT4
•NEC / UL Compliance: Article 725, Article 727, CL3R, ITC, PLTC
•AWM Compliance: AWM 2464
•European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
•APAC Compliance: China RoHS II (GB/T 26572-2011)

PRODUCT SPECIFICATIONSSize AWG 14Number of Pairs 1Number of Strands 42Insulation Thickness (inch)0.022Jacket Thickness (inch)0.042Overall Diameter (inch)0.325Weight (lbs/1000ft)63

HAVE A LARGE ORDER OVER $5000? ASK US IF WE CAN DO BETTER ON THE PRICE.

Shipping

***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***

Payment & Returns

***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***

About Nassau National Cable

(disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only)

We have been in business for over 60 years and are family owned and operated. We have been on the inc 5000 in 2014, 2015, and 2016 as one of the fastest growing privately owned companies. We look forward to serving you.
