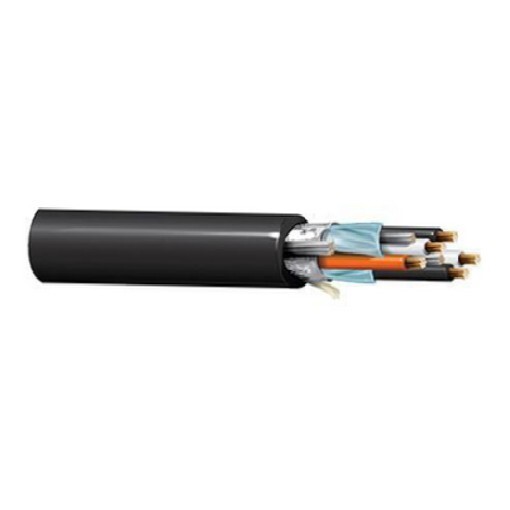

50' Belden 1075A 20 AWG 2 Pair Power Limited Tray Cable Black PVC Jacket 300V Click Thumbnails to EnlargeAPPLICATION

• Belden 1075A 20 AWG 2 Pair Power Limited Tray Cable is Suitable for Industrial Control, Raceways Cable Trays and Ducts, Digital Control, Encoders, Control Circuits, Distributed Control System (DCS), Programmable Logic Controller (PLC), Solenoids, Valves, Actuators, Positioners.

CONDUCTOR

• Bare Copper

INSULATION

• Polyvinyl Chloride (PVC)

SHIELD

• Inner Shield: Bi-Laminate (Alum+Poly)
• Outer Shield: Bi-Laminate (Alum+Poly)

JACKET

• Polyvinyl Chloride (PVC)

UL VOLTAGE RATING

• 300 V (PLTC, CMG, AWM 2464), 150 V (ITC)

STANDARDS

• Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
• Flammability/Reaction to Fire: UL 1685 FT4 Loading, FT4, T-29-520, IEEE 1202 FT4
• NEC/UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
• AWM Compliance: AWM 2464
• CEC/C(UL) Compliance: CMG
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• APAC Compliance: China RoHS II (GB/T 26572-2011)

PRODUCT SPECIFICATIONSSize AWG 20Number of Pairs 2Comm Wire(s)Size AWG 22Number of Conductors1Insulation Thickness (inches) 0.018Jacket Thickness (inches) 0.042Overall Diameter (inches) 0.365Weight (lbs/1000ft) 61
