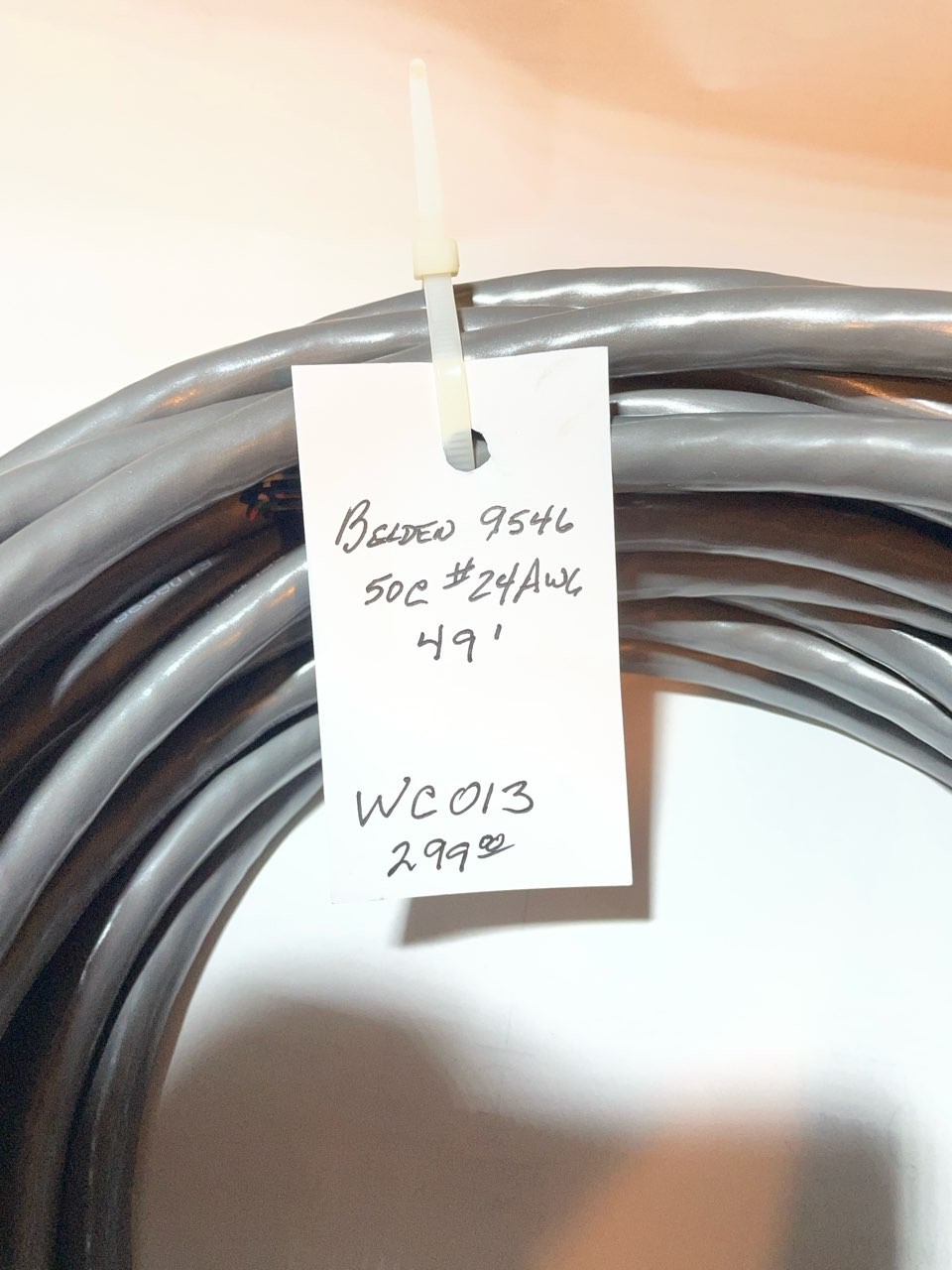

Belden 9546 Cable 50C #24AWG Overall Shield WC013:
$299.00

The Belden 9546 Cable is a high-quality, 50-conductor cable designed for industrial applications. With a wire gauge of 24AWG and a length of 49 feet, this cable is ideal for a variety of electrical setups. The overall shield and gray sheath color provide added protection and visibility for easy installation. Made with copper conductors, this cable offers excellent conductivity and reliability for your electrical equipment and supplies needs.

---

---

---

Belden 9546 Cable 50C #24AWG Overall Shield WC013

$299.00

---

Belden, 9546 w/ Amphenol 57-30500 Connectors, Used

$45.00

---

Belden 9942 --- 6-Cond. 22 AWG Double Shielded Cable, 100 FT.

$192.64

---
