100pcs 1N4004 Rectifier Diode 1A 400V IN4004 US S/H For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

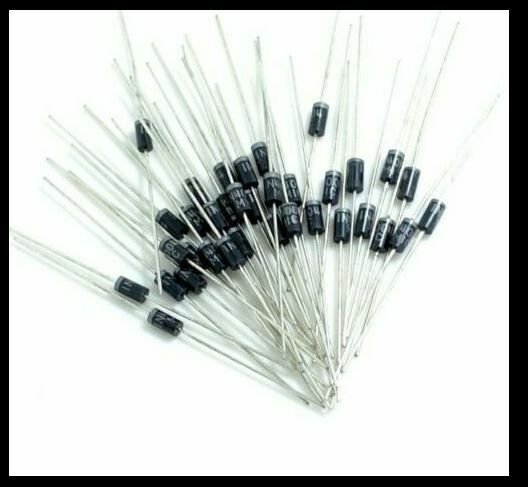

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 US S/H:
$6.99

100pcs 1N4004 Rectifier Diode 1A 400V IN4004
MIC 1N4004 DiodesQuality 1N4004 diodes at a great price! I have been distributing these diodes for some time. You will not be disappointed!Quantity:100 piecesSpecs:1N4004 Axial Lead Rectifier Diode
UL 94V-0 Rated Flame RetardantDO-41Case
Form: Repackaged from bulk lotMax. RMS Voltage: 280V
Max. Reverse Voltage: 400V
Max. Forward Voltage Drop: 1.1V (.7V typical)
Forward Current (25°C): 1A
Surge Current (8.3mS): 30A
Max. Reverse Current (25°C): 5uA
Junction Capacitance: 13pF

---

---

---

100pcs 1N4004 Rectifier Diode 1A 400V DO-41 Axial 1amp 400 Volt Electronic Diode

$9.99

---

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 US S/H

$6.99

---

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 DO-41 Axial 1Amp 400 Volt

$6.20

---
