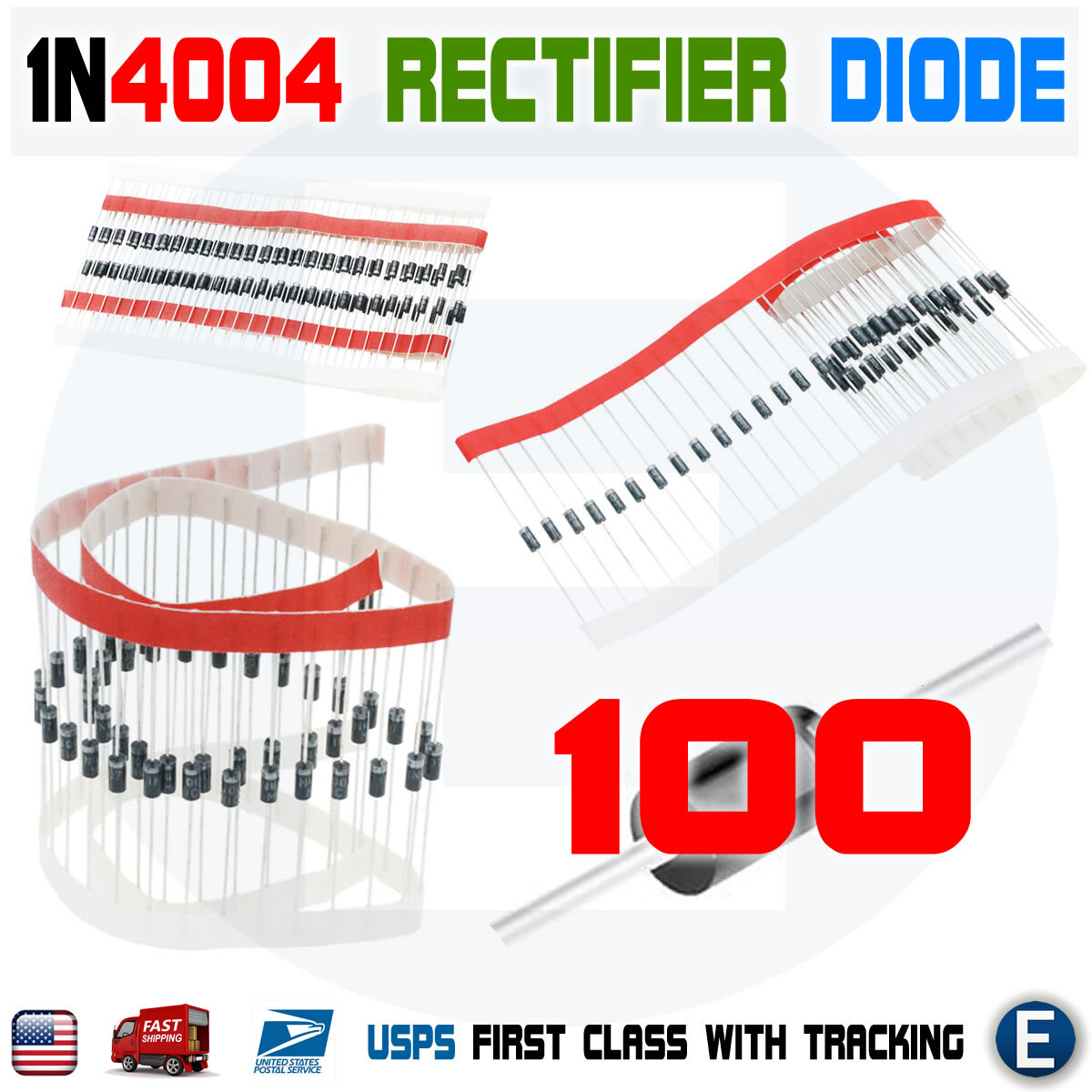

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 DO-41 Axial 1Amp 400 Volt:
$6.20

1N4004 Axial Lead Rectifier Diode
UL 94V-0 Rated Flame Retardant DO-41 Case

Max. RMS Voltage: 280V
Max. Reverse Voltage: 400V
Max. Forward Voltage Drop: 1.1V (.7V typical)
Forward Current (25°C): 1A
Surge Current (8.3mS): 30A
Max. Reverse Current (25°C): 5uA
Junction Capacitance: 13pF

Package Included:
100pcs 1N4004 Rectifier Diode 1A 400V IN4004 DO-41 Axial 1Amp 400 Volt

---

---

---

100pcs 1N4004 Rectifier Diode 1A 400V DO-41 Axial 1amp 400 Volt Electronic Diode

$9.99

---

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 US S/H

$6.99

---

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 DO-41 Axial 1Amp 400 Volt

$6.20

---
