100pcs 1N4004 Rectifier Diode 1A 400V DO-41 Axial 1amp 400 Volt Electronic Diode For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

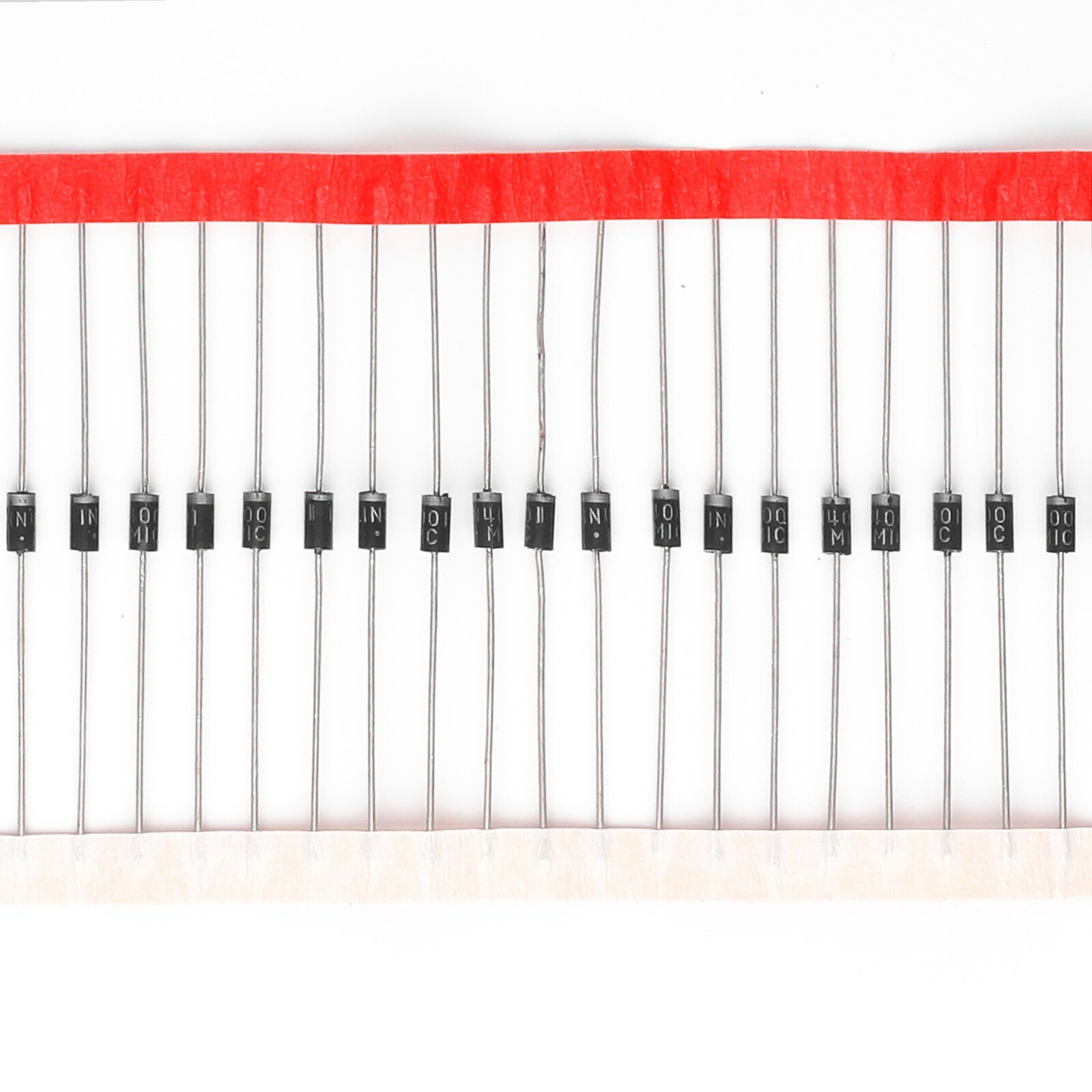

100pcs 1N4004 Rectifier Diode 1A 400V DO-41 Axial 1amp 400 Volt Electronic Diode:
$9.99

Part Number: 1N4004QTY: 100 PCSLead-Free / RoHS Compliant Electronics Component.This product is widely used in product development, student experiments, maintenance, production, etc.IN4004 Data: Forward rectified current:1A,Maximum recurrent peak reverse voltage:400VFeature:Low forward voltage/High current capability/Low leakage current/High surge capabilityCase:Molded plastic use UL 94V-0 recognized Flame retardant epoxyTerminals:Axial leads, solderable per MIL-STD-202Polarity:Color band denotes cathode

---

---

---

100pcs 1N4004 Rectifier Diode 1A 400V DO-41 Axial 1amp 400 Volt Electronic Diode

$9.99

---

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 US S/H

$6.99

---

100pcs 1N4004 Rectifier Diode 1A 400V IN4004 DO-41 Axial 1Amp 400 Volt

$6.20

---
