Zimmer Group MKS2501A Pneumatic Linear Guide Clamping Element NC MKS Series:
$370.00

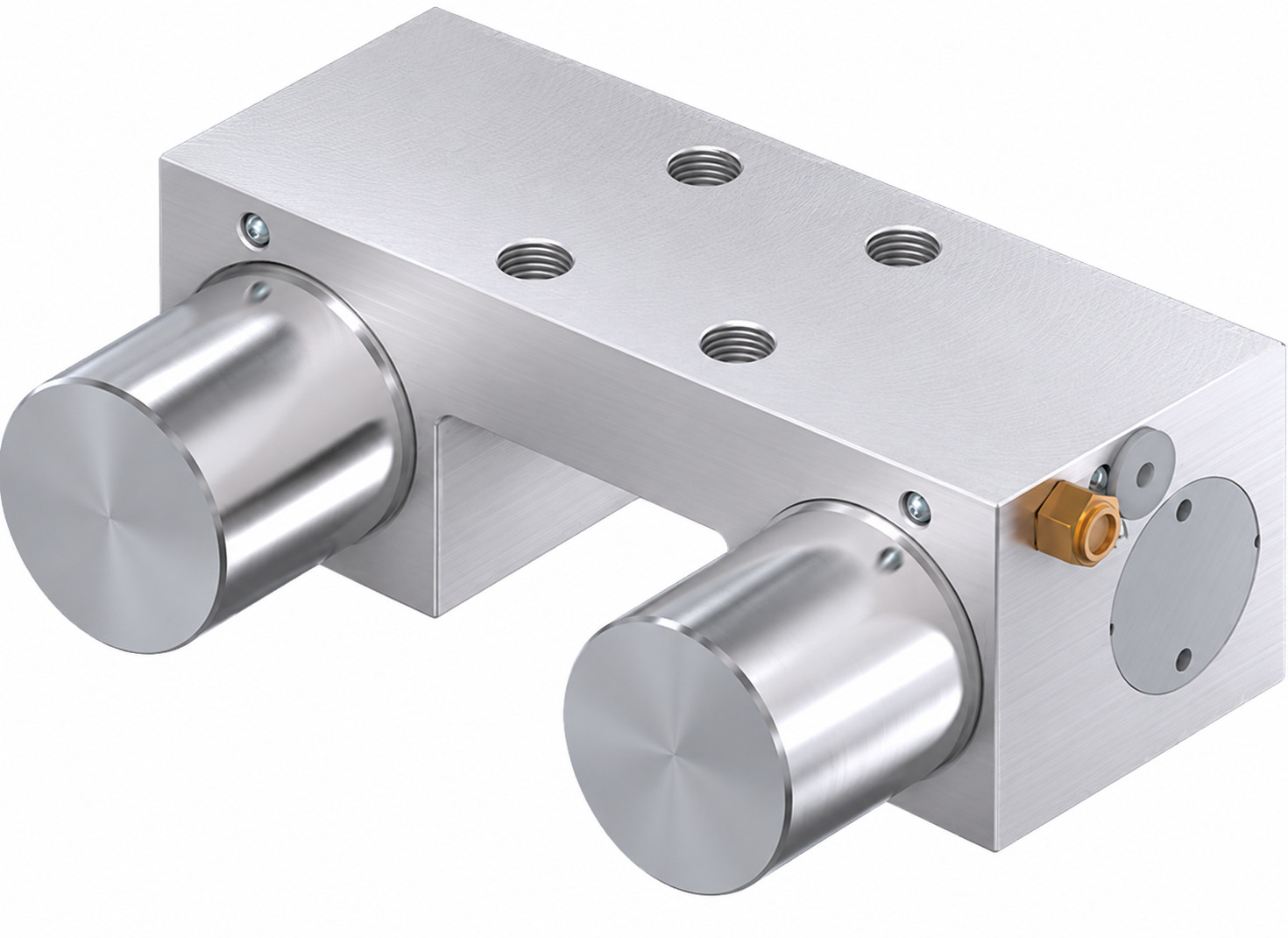

Zimmer Group MKS2501A Pneumatic Linear Guide Clamping Element

TheZimmer Group MKS2501Ais a professional pneumatic clamping element from theMKS Series, designed for use with profile rail linear guide systems in industrial automation and motion-control applications.

Featuring anNC (Normally Closed)design, the clamping element remains securely closed without pneumatic pressure. Its spring-loaded energy storage provides reliable clamping in the event of pressure or energy loss, making it suitable for applications where dependable holding and positioning are critical.

Key Features

Pneumatic linear guide clamping element
NC (Normally Closed)operation
Closed securely without pneumatic pressure
Standard holding force of750 N
Optional PLUS connection for increased holding force
Holding force with PLUS connection:1,400 N
Designed for common profile rail guide systems
High durability with5 million static clamping cycles
Fast opening and closing response
Suitable for industrial automation and positioning systems
Safety-oriented spring-loaded clamping design

Specifications

Manufacturer:Zimmer Group
Model / MPN:MKS2501A
Series:MKS
Product Type:Linear Guide Clamping – Normally Closed
Function:Clamping
Holding Force:750 N
Holding Force with PLUS Connection:1,400 N
Operating Pressure:5.5–6.5 bar
Nominal Operating Pressure:6 bar
Positioning Accuracy:±0.02 mm
Opening Time:0.02 sec
Closing Time:0.015 sec
Operating Temperature:-10°C to +70°C
Air Volume per Cycle:9 cm³
B10d Value:5,000,000
Installation Direction:From Above
Weight:0.4 kg / approx. 0.88 lb
Certifications:CE, UKCA, LABS, REACH, RoHS

Applications

Ideal for use in:

Linear motion systems
Industrial automation
Machine tools
Positioning equipment
Robotics and handling systems
Manufacturing equipment
Safety-related linear guide applications

TheZimmer Group MKS2501Aprovides reliable pneumatic clamping with fail-safe normally closed operation, high holding force, and excellent positioning accuracy for demanding industrial applications.
