Telemecanique Square D Altivar 58 VFD | 20HP 15kW 460V | ATV58HD23N4Z For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Telemecanique Square D Altivar 58 VFD | 20HP 15kW 460V | ATV58HD23N4Z:
$359.10

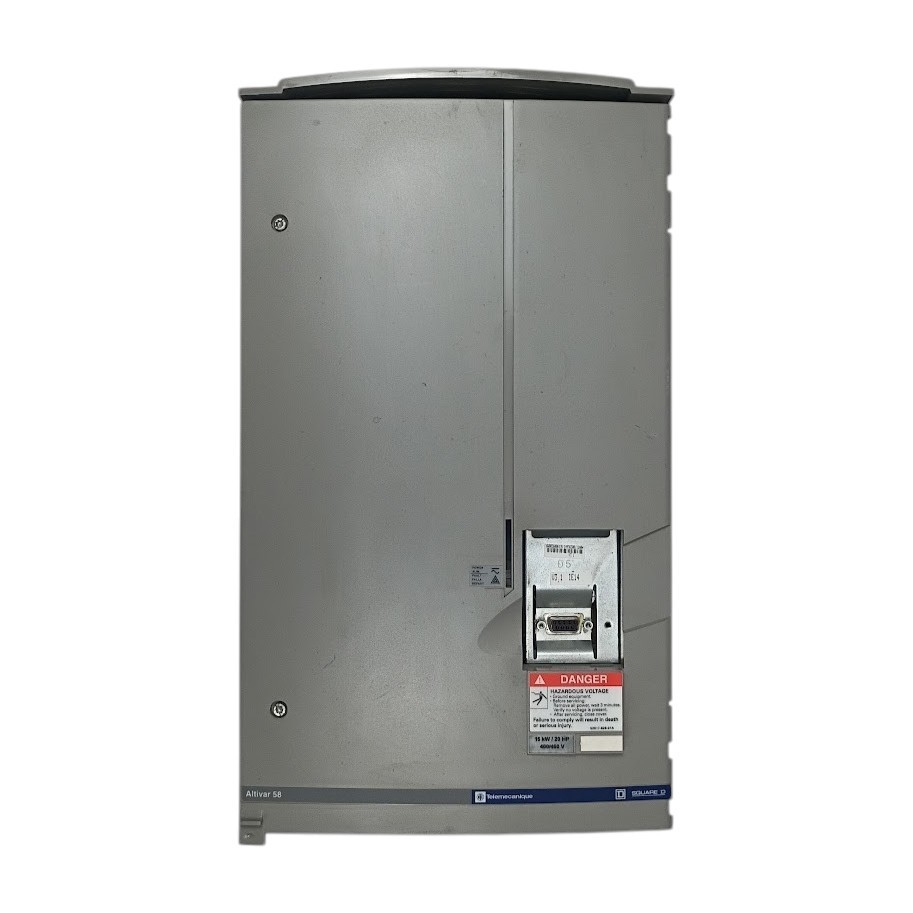

Up for sale is a Telemecanique / Square D Altivar 58 Variable Frequency Drive (VFD). This unit was pulled from a working environment and is in good physical condition with typical wear from industrial use.Specifications:

• 15 kW / 20 HP
• 400–460V 3-phase input
• 3-phase output (voltage proportional to input)
• 33A continuous output
• 0.1–500 Hz output frequency (programmable)

---

---

---

TELEMECANIQUE SQUARE D SCHNEIDER XUC9ARCTU78 SENSOR - MOUNT - REFLECTOR - CABLE

$132.49

---

Telemecanique Square D Altivar 58 VFD | 20HP 15kW 460V | ATV58HD23N4Z

$359.10

---

Telemecanique Square D Altivar 58 TRX VFD ATV58HD23N4XZ 20/25HP 460V 3PH

$359.10

---
