Telemecanique Square D Altivar 58 TRX VFD ATV58HD23N4XZ 20/25HP 460V 3PH For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

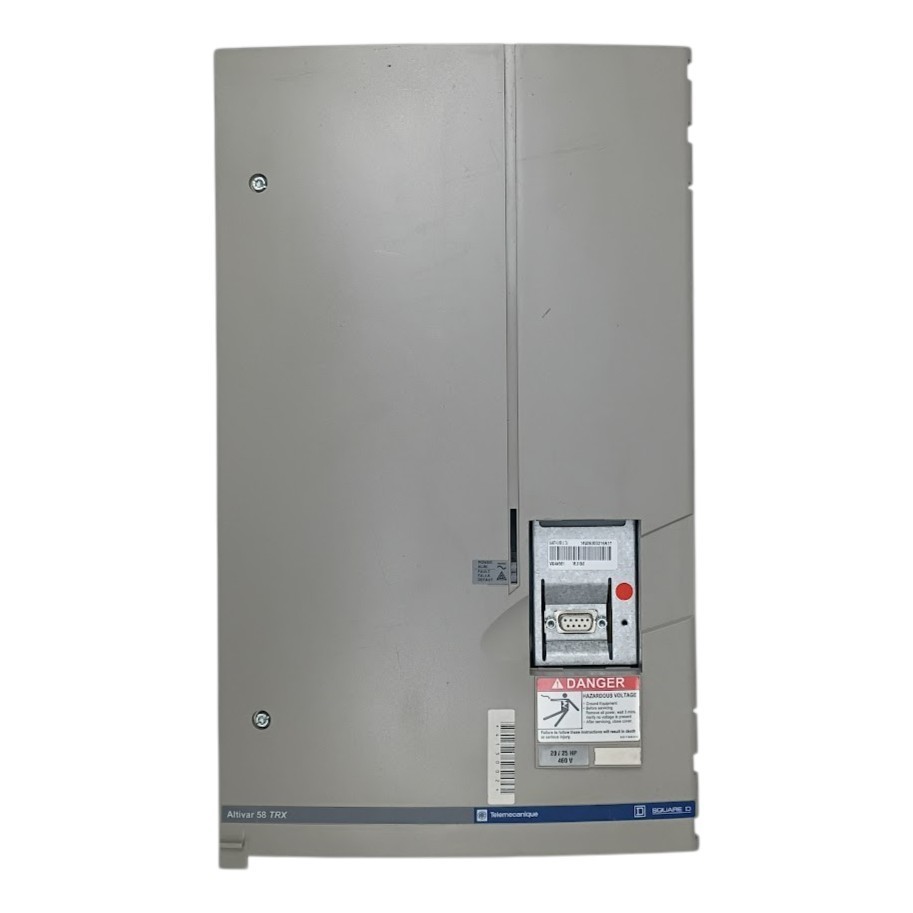

Telemecanique Square D Altivar 58 TRX VFD ATV58HD23N4XZ 20/25HP 460V 3PH:
$359.10

Up for sale is a Telemecanique / Square D Altivar 58 TRX Variable Frequency Drive. This is a heavy-duty industrial drive rated for 20HP (Constant Torque) or 25HP (Variable Torque) applications.Specifications:

• Brand: Telemecanique / Square D

• Model: ATV58HD23N4XZ

• Series: Altivar 58 TRX

• Input Voltage: 460V / 3 Phase / 50/60Hz

• Output Voltage: 0-460V / 3 Phase

• Horsepower Rating: * Constant Torque: 20 HP (33A Output)

• Variable Torque: 25 HP (34A Output)

• Frequency Range: 0.1 to 500 Hz

---

---

---
