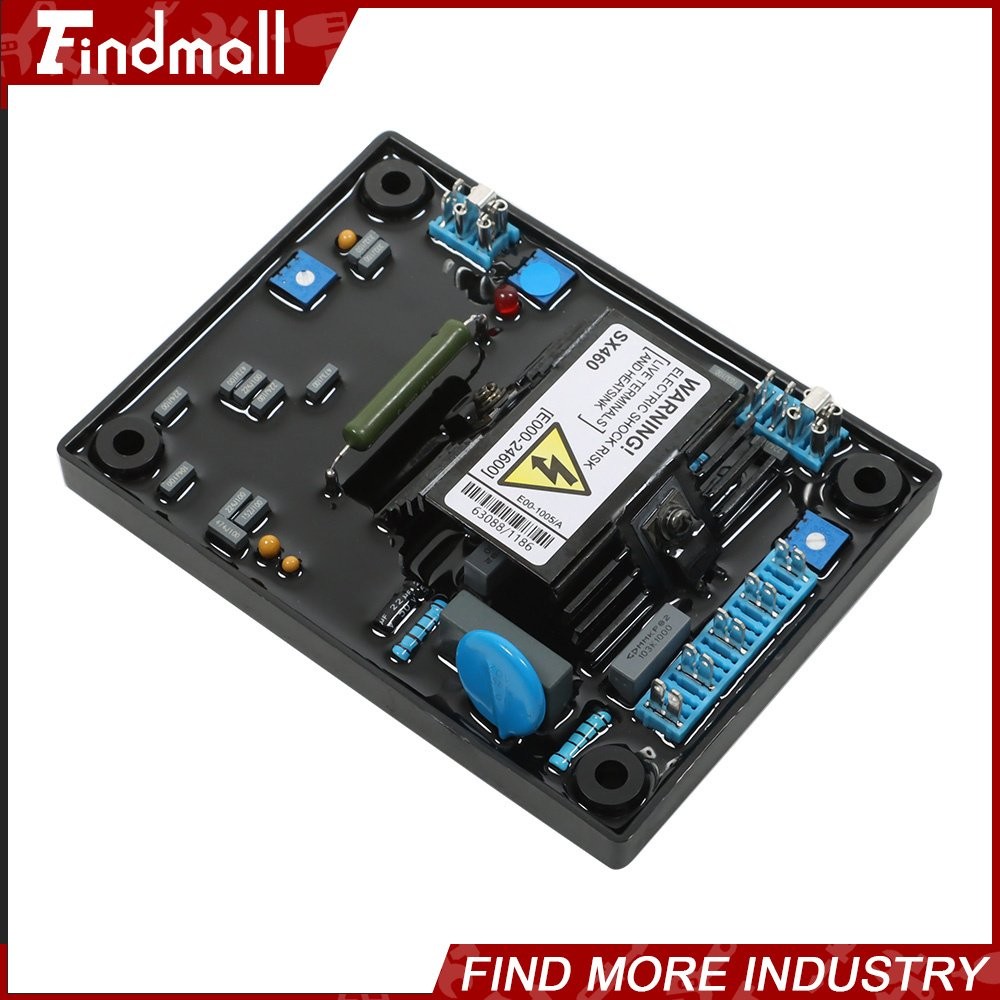

Replacement AVR SX460 Automatic Voltage Volt Regulator For Stamford Generator:
$15.86

Specifications：

AVR SX460 Automatic Voltage Regulator Replacement For Generator

100% Brand New And High Voltage: Jumper Selectable 95-132V AC Or 190-264V AC

Frequency: 50-60 HZ Nominal

Phase: 1

Output Voltage: Max 90V DC At 207V AC Input

Current: Continuous 4 A DC

Intermittent 6 A For 10 Secs

Resistance: 15 Ohms Drift

0.05% Per Deg. C Change In AVR Ambient

Typical System Response

AVR Response: 20 ms

Filed Current To 90%: 80 ms

Replacement AVR SX460 Automatic Voltage Volt Regulator For Stamford Generator

Specifications：

AVR SX460 Automatic Voltage Regulator Replacement For Generator

100% Brand New And High Quality

Desc:SX460

Weight: Voltage: Jumper Selectable 95-132V AC Or 190-264V AC

Frequency: 50-60 HZ Nominal

Phase: 1

Output Voltage: Max 90V DC At 207V AC Input

Current: Continuous 4 A DC

Intermittent 6 A For 10 Secs

Resistance: 15 Ohms Drift

0.05% Per Deg. C Change In AVR Ambient

Typical System Response

AVR Response: 20 ms

Filed Current To 90%: 80 ms

Machine Volts To 97%: 300 ms

External Voltage Adjustment

+/-10% With 1 K Ohm 1 Watt Trimmer

Under Frequency Protection

Set Point: 95% Hz

Slope: 170% Down To 30 HZ

Unit Power Dissipation

10 Watts Maximum

Build Up Voltage

4 Volts @ AVR 20-100 Hz50mm/sec

100Hz -2kHz 3.3g

Operating Temperature: -40°C To + 60°C

Storage Temperature: -55°C + 80°C

Relative Humidity 0-70°C: 95%

Size: 13.4cm × 9.8cm × 3.5cm

Package Including：

1 × SX460 Automatic Voltage Regulator

W/ Product Instruction

Item SpecificsCountry of Origin United StatesBrand findmallMPN SX460Type Automatic Voltage RegulatorWeight 0.35KGVolume 155 × 105 × 55mmInput Voltage Jumper Selectable 95-132V AC Or 190-264V ACFrequency 50-60 HZ NominalCurrent Continuous 4 A DCEquipment Type Voltage RegulatorModel SX460Warranty 1 Year
