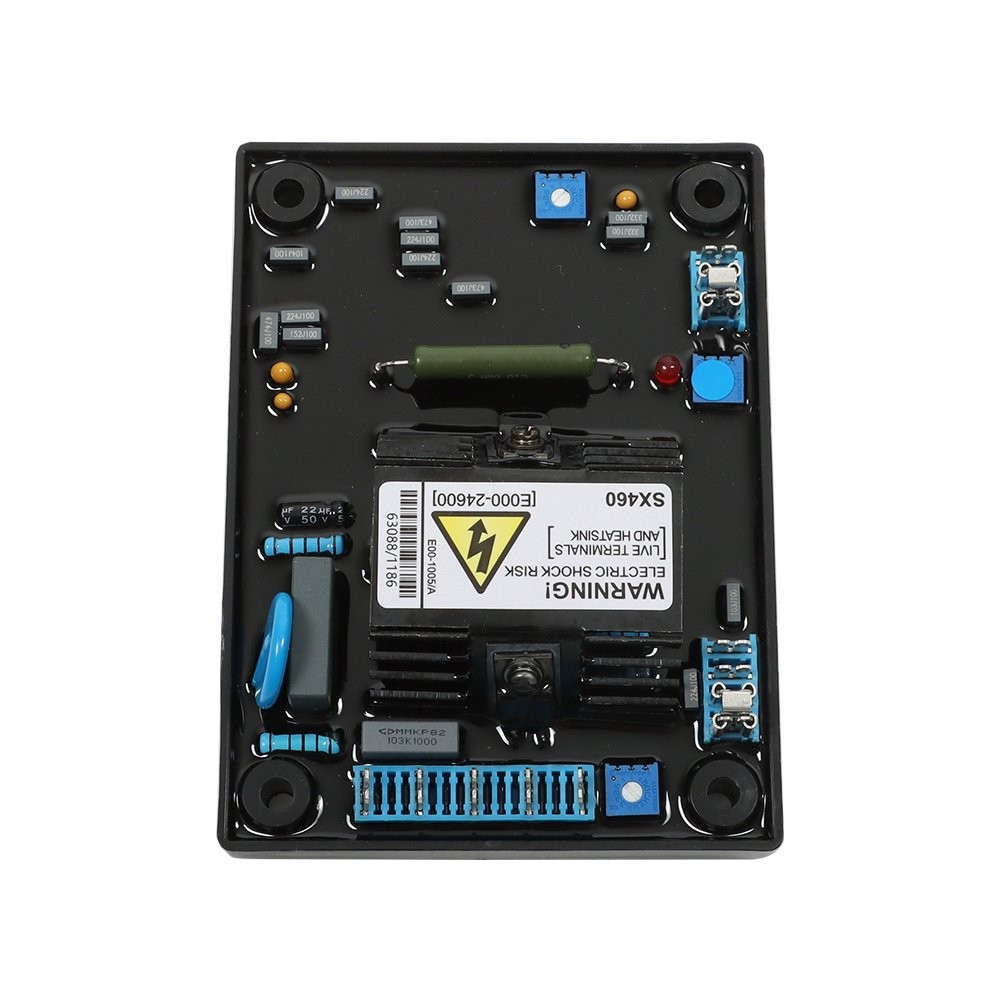

Replacement AVR SX460 Automatic Voltage Volt Regulator For Stamford Generator For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Replacement AVR SX460 Automatic Voltage Volt Regulator For Stamford Generator:
$15.97

Feature：

AVR SX460 Automatic Voltage Regulator Replacement For Generator

100% Brand New And High Voltage: Jumper Selectable 95-132V AC Or 190-264V AC

Frequency: 50-60 HZ Nominal

Phase: 1

Output Voltage: Max 90V DC At 207V AC Input

Current: Continuous 4 A DC

Intermittent 6 A For 10 Secs

Resistance: 15 Ohms Drift

0.05% Per Deg. C Change In AVR Ambient

Typical System Response

AVR Response: 20 ms

Filed Current To 90%: 80 ms

Machine Volts To 97%: 300 ms

Replacement AVR SX460 Automatic Voltage Volt Regulator For Stamford Generator

Feature：

AVR SX460 Automatic Voltage Regulator Replacement For Generator

100% Brand New And High Quality

Desc:SX460

Weight: Voltage: Jumper Selectable 95-132V AC Or 190-264V AC

Frequency: 50-60 HZ Nominal

Phase: 1

Output Voltage: Max 90V DC At 207V AC Input

Current: Continuous 4 A DC

Intermittent 6 A For 10 Secs

Resistance: 15 Ohms Drift

0.05% Per Deg. C Change In AVR Ambient

Typical System Response

AVR Response: 20 ms

Filed Current To 90%: 80 ms

Machine Volts To 97%: 300 ms

External Voltage Adjustment

+/-10% With 1 K Ohm 1 Watt Trimmer

Under Frequency Protection

Set Point: 95% Hz

Slope: 170% Down To 30 HZ

Unit Power Dissipation

10 Watts Maximum

Build Up Voltage

4 Volts @ AVR 20-100 Hz50mm/sec

100Hz -2kHz 3.3g

Operating Temperature: -40°C To + 60°C

Storage Temperature: -55°C + 80°C

Relative Humidity 0-70°C: 95%

Size: 13.4cm × 9.8cm × 3.5cm

Package List:

1 × SX460 Automatic Voltage Regulator

W/ Product Product Has Passed Strict Quality Testing

Durable And Easy To Install And Replace

Cost-Effective, The Best After-Sales Service

Quality Assurance For Your Peace Of Mind

Item SpecificsCountry of Origin United StatesBrand findmallMPN SX460Type Automatic Voltage RegulatorWeight 0.35KGVolume 155 × 105 × 55mmInput Voltage Jumper Selectable 95-132V AC Or 190-264V ACFrequency 50-60 HZ NominalCurrent Continuous 4 A DCEquipment Type Voltage RegulatorManufacturer Warranty 1 YearModel SX460
Introduction of Promotion

Fold over fold

Payment

Shipping

Usually your Items will be shipped within 1-3 business day after your payment is cleared.

Returns

Refund is valid within 30 days after thepayment date

Item must be returned in original packing same as reached

Contact Us If you are satisfied with the product you received,please leave us positive response and 5 scores .Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.We care about our valued customers, and will always try to help you.

CNCHand ToolsMetalworking SuppliesGenerator AccessoriesIndustrial Control Module Replacement AVR SX460 Automatic Voltage Volt Regulator For Stamford Generator

Feature：

AVR SX460 Automatic Voltage Regulator Replacement For Generator

100% Brand New And High Quality

Desc:SX460

Weight: Voltage: Jumper Selectable 95-132V AC Or 190-264V AC

Frequency: 50-60 HZ Nominal

Phase: 1

Output Voltage: Max 90V DC At 207V AC Input

Current: Continuous 4 A DC

Intermittent 6 A For 10 Secs

Resistance: 15 Ohms Drift

0.05% Per Deg. C Change In AVR Ambient

Typical System Response

AVR Response: 20 ms

Filed Current To 90%: 80 ms

Machine Volts To 97%: 300 ms

External Voltage Adjustment

+/-10% With 1 K Ohm 1 Watt Trimmer

Under Frequency Protection

Set Point: 95% Hz

Slope: 170% Down To 30 HZ

Unit Power Dissipation

10 Watts Maximum

Build Up Voltage

4 Volts @ AVR 20-100 Hz50mm/sec

100Hz -2kHz 3.3g

Operating Temperature: -40°C To + 60°C

Storage Temperature: -55°C + 80°C

Relative Humidity 0-70°C: 95%

Size: 13.4cm × 9.8cm × 3.5cm

Package List:

1 × SX460 Automatic Voltage Regulator

W/ Product Product Has Passed Strict Quality Testing

Durable And Easy To Install And Replace

Cost-Effective, The Best After-Sales Service

Quality Assurance For Your Peace Of Mind

Item SpecificsCountry of Origin :United StatesBrand :findmallMPN :SX460Type :Automatic Voltage RegulatorWeight :0.35KGVolume :155 × 105 × 55mmInput Voltage :Jumper Selectable 95-132V AC Or 190-264V ACFrequency :50-60 HZ NominalCurrent :Continuous 4 A DCEquipment Type :Voltage RegulatorManufacturer Warranty :1 YearModel :SX460
Introduction of Promotion

Fold over fold

Payment

Shipping

Usually your Items will be shipped within 1-3 business day after your payment is cleared.

Returns

Refund is valid within 30 days after thepayment date

Item must be returned in original packing same as reached
