On eBay Now...Renishaw RSLM 1130mm High Accuracy Linear Scale A-9682-1130-01 ±0.7µm For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

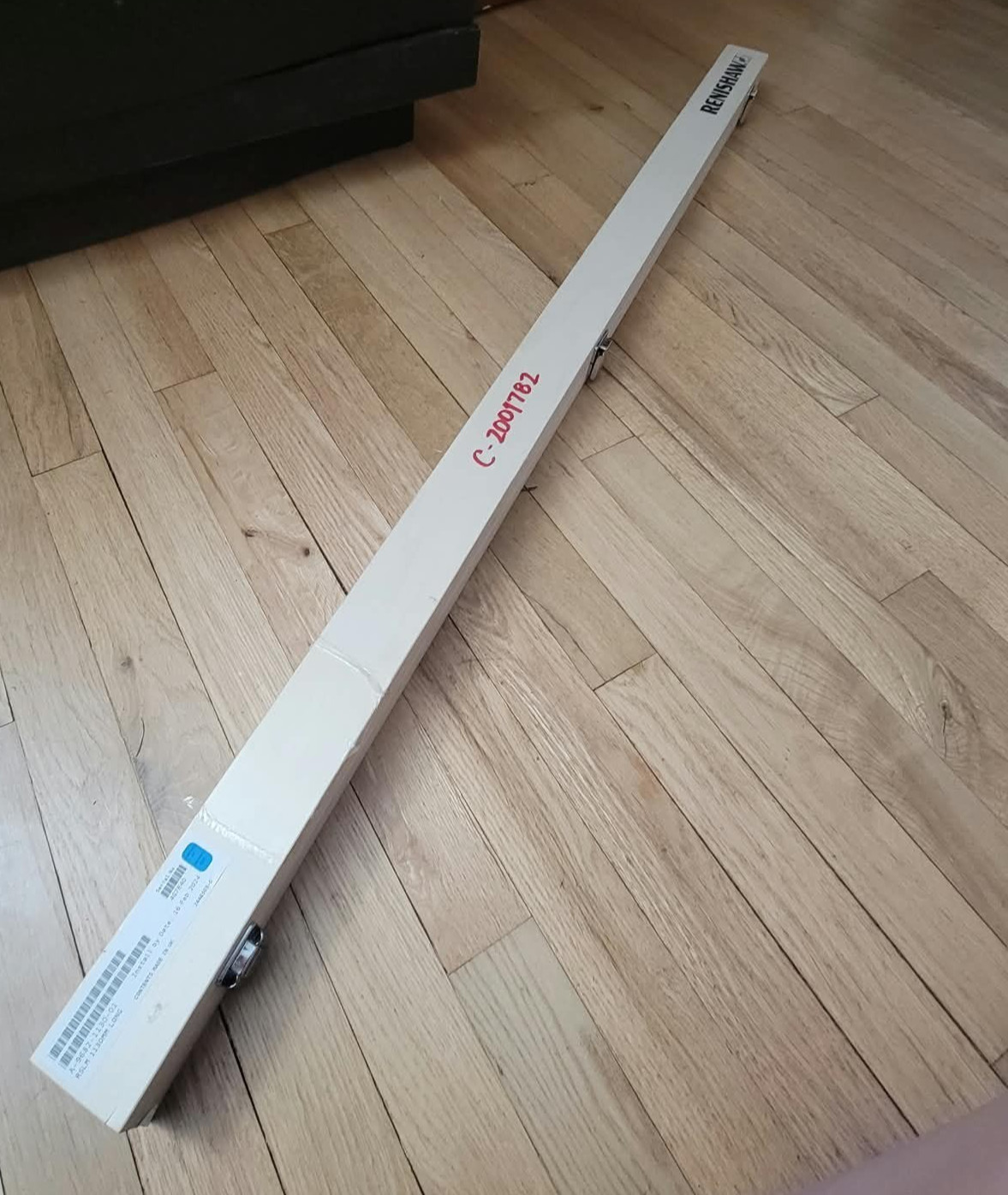

Renishaw RSLM 1130mm High Accuracy Linear Scale A-9682-1130-01 ±0.7µm:
$539.99
Renishaw RSLM high-accuracy incremental linear encoder scale, part number A-9682-1130-01 / A-9682-1130, with a scale length of 1130 mm.
This is a precision stainless-steel linear scale designed for demanding motion-control, metrology, semiconductor, machine-tool, inspection, and precision automation applications.
The included factory calibration certificate is specific to serial number 4G7E40 and shows exceptionally good measured performance:
- Specified accuracy: ±2.25 µm
- Measured accuracy: ±0.7 µm
- Scale length: 1130 mm
- Thermal expansion: 10.1 ±0.2 µm/m/°C
- Calibration traceable to international standards
Renishaw RSLM scales use a 20 µm optical pitch and are designed for use with compatible Renishaw VIONiC and TONiC encoder readheads.
Renishaw RSLM 1130mm High Accuracy Linear Scale A-9682-1130-01 ±0.7µm
$539.99
Renishaw T1011-50A TONiC Linear Encoder Readhead 5m RELM RSLM Open Box
$269.99
Renishaw A-9682-1230-01 RSLM High Accuracy Linear Scale, 1230mm Long, 20µm Pitch
$1185.00
