Renishaw T1011-50A TONiC Linear Encoder Readhead 5m RELM RSLM Open Box:
$269.99

Designed for use with Renishaw 20 µm pitch RELM/RELE ZeroMet and RSLM/RSLE/RSLC stainless-steel linear encoder scales. A compatible Renishaw TONiC interface, scale and machine controller are required and are not included.

Specifications:

Manufacturer: Renishaw
Model/MPN: T1011-50A
Series: TONiC
Type: Optical incremental linear encoder readhead
Cable length: 5 meters
Connector: Interboard connector
Scale pitch: 20 µm
Maximum operating speed: 10 m/s
Ride height: 2.1 mm ±0.15 mm
Operating temperature: 0°C to 70°C
Protection rating: IP40
Readhead dimensions: approximately 35 × 13.5 × 10 mm
Serial number: 4Y7R80
Country of manufacture: United Kingdom

TONiC readheads incorporate an optical IN-TRAC reference-mark sensor, dual limit detection and dynamic signal processing for precision motion-control applications.

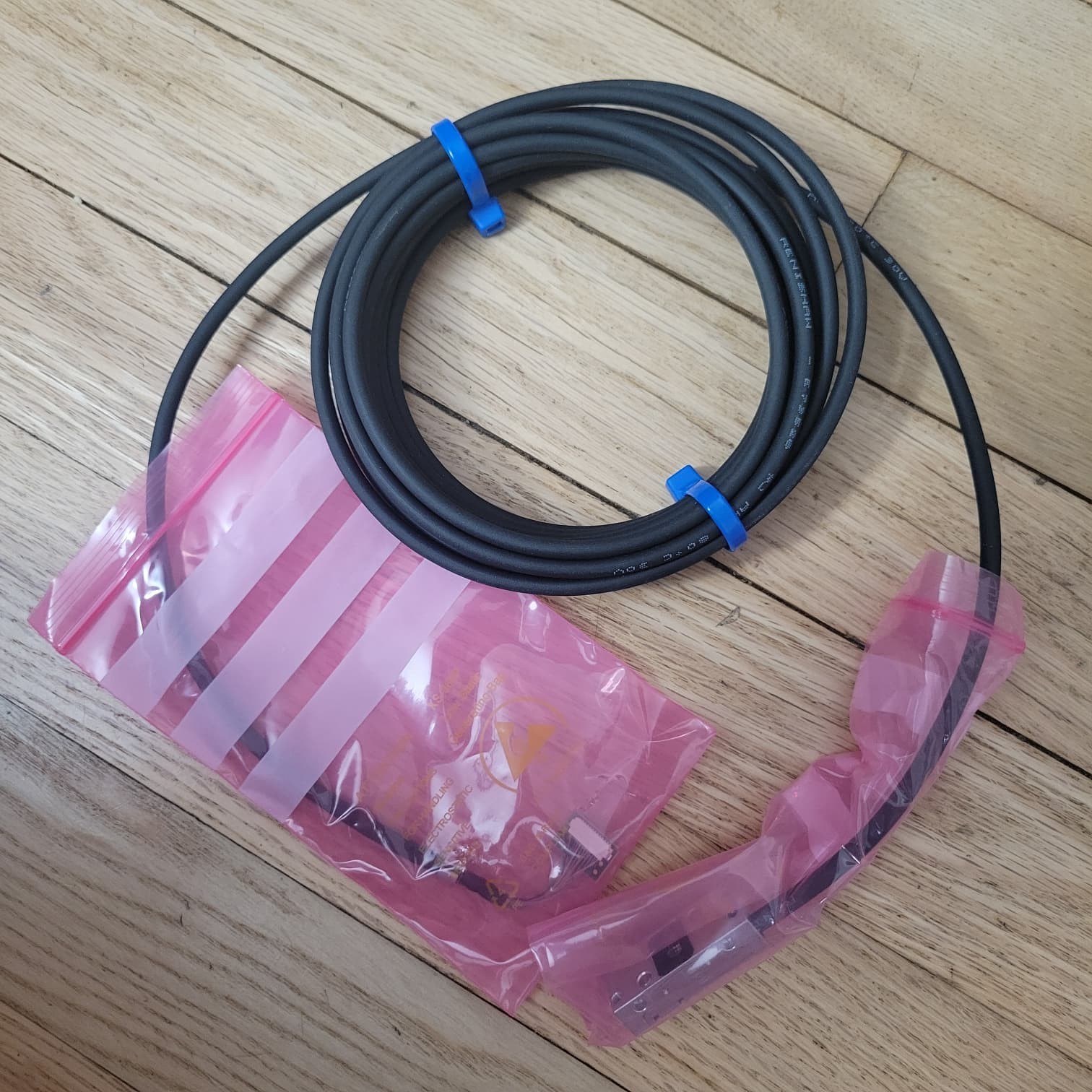

Included:

Renishaw T1011-50A readhead
Attached 5 m cable
Interboard connector
Green 2.1 mm setup shim
Original Renishaw packaging

Only the items shown in the photographs are included. No scale, TONiC Ti interface, extension cable or controller is included.

Sold as pictured and as-is, with no warranty expressed or implied. Buyer is responsible for confirming compatibility and configuration before purchase.
