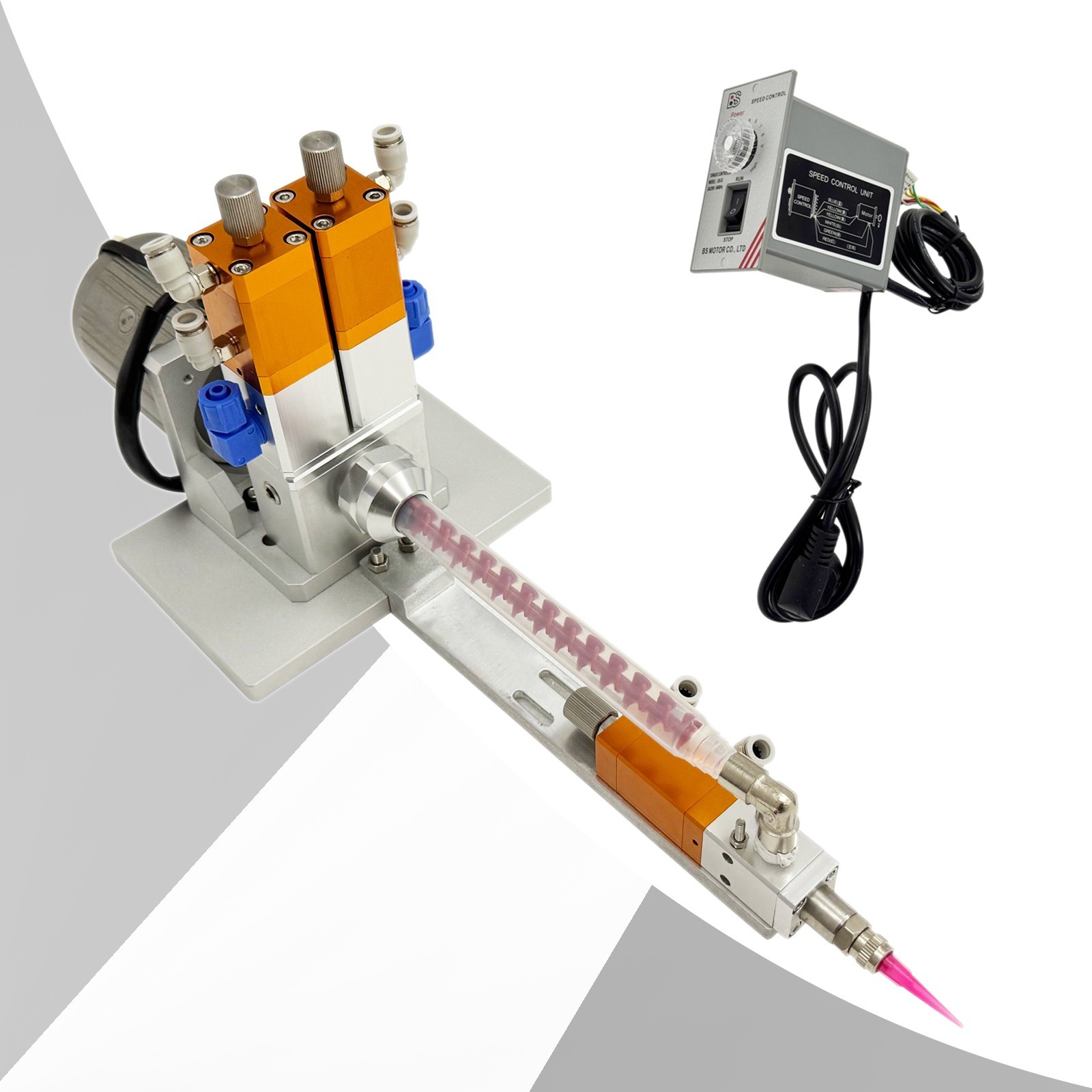

QLH-105F 110V Electric Anti-drip Double Liquid Mixing Valve 1 - 1,000,000 cps:
$542.38

Electric Anti-drip Mixing Valve AB Double Liquid Dispensing Valve 110V - Technical Documentation Electric Anti-drip Mixing Valve AB Double Liquid Dispensing Valve 110V INTBUYING® Document ID: TD-057189 Version: 1.0 Product Overview

The electric dispensing valve is a professional-grade solution for uniform mixing and precise dispensing of dual-component liquids. Engineered with high-quality materials for structural integrity and extended service life. Features anti-drip structural design for precision dispensing operations and environmental protection. Optimizes workflow efficiency by reducing time, labor, and material loss. Suitable for applications in electronic packaging, precision adhesion, new energy manufacturing, medical equipment, and automotive electronics.

Product Parameters Model QLH-105F Voltage AC110V/60Hz Type Double-acting air cylinder backward suction Air cylinder Double-acting air cylinder Main material Stainless steel + POM + aluminum alloy anodizing Operation viscosity 1-1,000,000cps Minimum output amount 0.01ml Feeding pressure <300kg Size of feeding inlet 1/8\" npt(f) Operating speed <600/min Output pressure adjusting range 0-0.06mpa Product size 44×15×18cm (17.3×5.9×7.1 inches) Net weight 3.2kg (7.1LBS) Product Features Precision Dispensing

Uniform dispensing with anti-drip technology. High controllability of dispensing operation minimizes waste and prevents environmental contamination.

Efficient Mixing

Real-time sufficient mixing of dual liquids with optimal stirring effect. Ensures high mixing uniformity for consistent results.

Independent Control

Dual channel independent control system provides high mixing precision and stability. Adaptable to multiple mixing proportions.

High-Quality Motor

Premium motor ensures stable operation with consistent driving force. High durability construction extends service life.

Adjustable Speed

Quick and convenient dispensing speed regulation and control. Simplified connection process for enhanced usability.

Secure Mounting

Optimized fixing and supporting system ensures high reliability and practicability. Robust construction for long-term durability.

Product Advantages

Precision Engineering - Crafted with high-quality stainless steel and aluminum alloy materials. Precision CNC lathe machining ensures exquisite structure, high precision, wear and corrosion resistance with extended service life.
Anti-Drip Performance - Precision dispensing operation with quick backward suction response. Glue discharges evenly without dripping or stringing for clean operation.
Air Compression Drive - Air compression driven system with fluid sealing structure. Reduced sealing piece replacement requirements. Efficient operation with significant cost savings and convenient maintenance.

Operation Method

Follow these procedures for optimal valve performance and operational safety.

A. Preparation before operation

Read the instruction manual thoroughly before operation.
Inspect valve appearance for moisture or damage. Do not operate faulty equipment.
Confirm medium flow direction and verify valve opening/closing indicators.
For devices idle for 3+ months: Check clutch, ensure handle in manual position, verify motor insulation, steering and electrical circuits.

B. Starting and Running

Connect external power supply, activate power switch (indicator light illuminates).
Select operation mode:
- Local control: Switch to RUN position (motor activates). Adjust motor speed via SPEED CONTROL knob.
Execute operation: Press \"on\" or \"off\" button to activate valve. Automatic stop at full open/close position.
Adjust discharge volume to required setting (minimum 0.01ml) per application requirements.

C. Operation completion

Reset system: Adjust speed control knob to minimum, set timer to \"zero\" (if applicable), deactivate power switch, disconnect power.
Clean mixing rod thoroughly. Ensure no water droplets or residue remain.

Operational Attention

Adhere to these safety and operational guidelines for optimal performance and equipment longevity.

Operation monitoring: Monitor valve opening/closing indication and valve stem running during operation. Verify opening/closing degree meets requirements. Stop immediately for abnormal indications or noises.
Stroke control: During initial full open/close operation after stroke and over-torque controller setup, monitor stroke control. Manually stop if automatic stop fails at position limits.
Close in place: For field operation to full close position, stop electric valve closure slightly before complete closure. Use micro motion for final closure positioning.
Power management: Deactivate electric valve power supply after successful operation completion.
Special operation:
- Multi-valve operation: Observe proper operation sequence. Ensure compliance with production process requirements.
- Ball valves, gate valves, globe valves and butterfly valves operate only in fully open or fully closed positions. Regulation use strictly prohibited.
Maintenance safety: Disconnect power supply before cleaning or inspecting electric valves.
