On eBay Now...Peak Atlas LCR45 Passive Component Impedance Analyzer and 2 Test Lead/Probe Sets For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

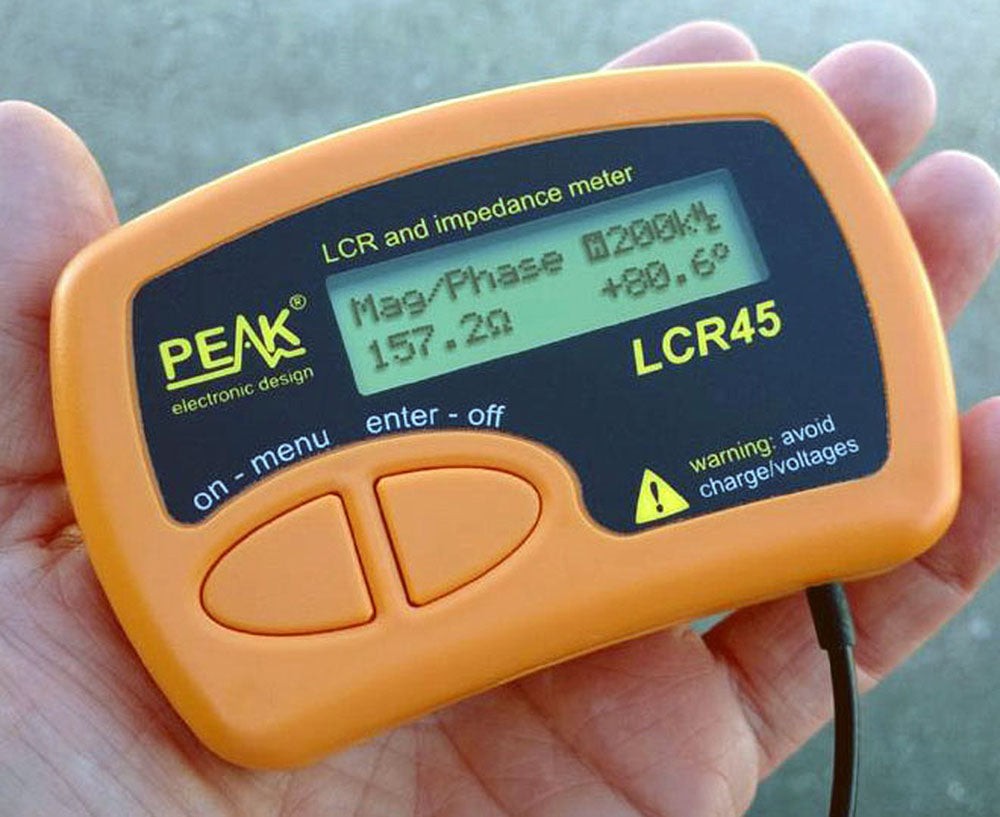

Peak Atlas LCR45 Passive Component Impedance Analyzer and 2 Test Lead/Probe Sets:
$205.85
The new Altas LCR45 builds on the success of the LCR40 Passive Component Analyser. With a new micro, including 12 bit ADCs and new software written from the ground up, the LCR45 is more than just evolution, it incorporates advanced maths based on complex impedance analysis and allows enhanced component value measurement, i.e. 0.2uH, 0.2pF and 0.2 Ohms resolution, as well as a comprehensive and detailed impedance display. The Atlas LCR is supplied with our new detachable micro-hooks, allowing the use of the optional SMT Tweezers, prods and chunky grabbers. Supplied fully assembled, tested and aligned with a factory warranty this is an indispensable piece of test equipment for a system designer or product technician. Included are two sets of probes, the gold coated croc clips and the surface mount probes for in-circuit testing of SMD components.
Peak Atlas ESR70 Gold ESR Analyzer Equivalent Resistance Meter w Audible Alerts
$154.94
Peak Atlas ESR70 Gold, DCA55 + Accessories Kit
$295.95
Peak Atlas LCR45 Passive Component Impedance Analyzer and 2 Test Lead/Probe Sets
$205.85
