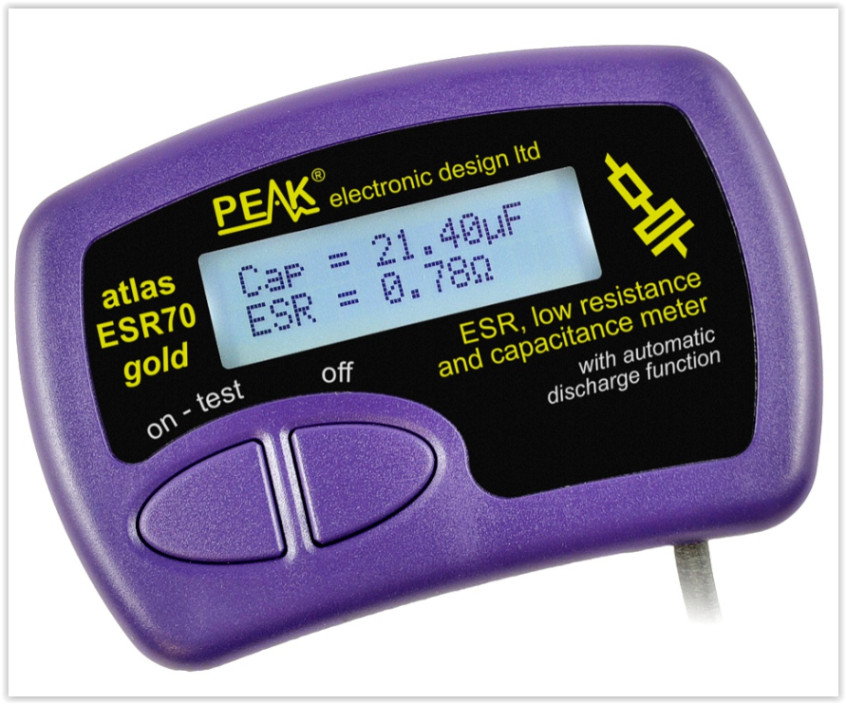

Peak Atlas ESR70 Gold ESR Analyzer Equivalent Resistance Meter w Audible Alerts:
$148.94

Latest and Newest Version of Peak Atlas ESR70 -
Atlas ESR Gold - Equivalent Series Resistance Meter
60 Days Warranty Plus Factory WarrantyAuthorized Distributor

Improved LCD with better backlight.
10x faster capacitance measurement for large capacitors.
Enhanced user options system.
New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements.
Much wider capacitance measurement range now 0.3uF to 90,000uF (was 1uF to 22,000uF).

Specification Summary:

Uses a single AAA Alkaline cell (included).
Alphanumeric LCD with backlight.
Automatic analysis-start when you apply the probes.
Automatic capacitor discharge using controlled discharge function.
ESR (and low DC resistance) measurement (even in-circuit).
Capacitance measurement (if testing out-of-circuit).
Audible alerts for various ESR levels.
Extended ESR measurement range up to 40 Ohms.
Optional probe alternatives easily - Equivalent Series Resistance Meter.
Extra-long and extra-flexible test cables (450mm of Silicone covered cable).
2mm plugs and sockets with removeable gold plated crocodile clips.
Comprehensive illustrated user guide.
AAA Alkaline cell.

Technical Specifications:ESR range: 0.00 Ohms to 40.0 Ohms
ESR accuracy: ±2% (typical)
ESR resolution (ESR<2 Ohms): 0.01 Ohms to 0.02 Ohms
ESR resolution (ESR>2 Ohms): 0.1 Ohms to 0.2 Ohms
Capacitance range: 0.3uF to 90,000uF
ESR test frequency: 50-100kHz ±4%
ESR test voltage (into 40 Ohms): 40mV (typical)
Operating temperature range: 15°C to 35°C (60°F to 95°F)
Battery type: AAA Alkaline (1.5V) Supplied
Auto-off period: 1 minute (typical)Analyser type: ESR and Capacitance. Component types: Capacitors (>0.3uF). ESR range: 0.00 Ohms to 40.0 Ohms. ESR resolution: From 0.01 Ohms. In-circuit use: ESR only. Capacitance range: 0.3uF to 90000uF. Battery type: 1.5V Alkaline AAA Cell (supplied). Life typically 1500 ops. Display type: Alphanumeric LCD (with backlight)
