Newport 562 XYZ Linear Stage, ULTRAlign, 0.5 in., Right-Handed, Mint Condition For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

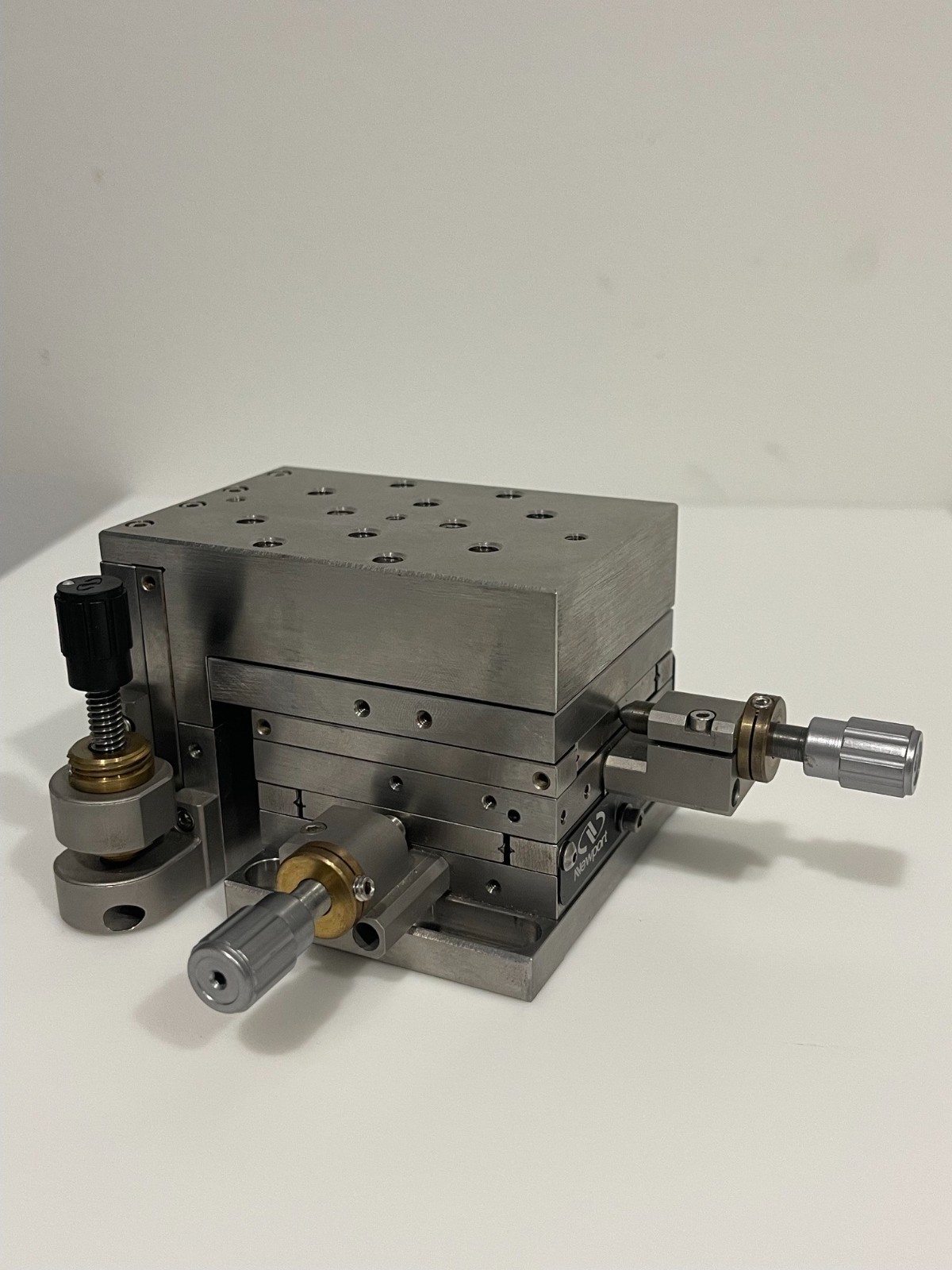

Newport 562 XYZ Linear Stage, ULTRAlign, 0.5 in., Right-Handed, Mint Condition:
$1199.00

Newport 562 XYZ Linear Stage, ULTRAlign, 0.5 in., Right-Handed, 8-32 and 1/4
A Newport 562 is a high-precision ULTRAlign Precision Linear Stage made by MKS Newport for optical, research, and industrial manufacturing applicationsKey Specifications

• Type: Multi-axis (XYZ) linear positioning stage.
• Travel Range: 0.5 inches (12.7 mm to 13 mm) per axis.
• Load Capacity: 35 lbs (156 N) centered.
• Angular Deviation: Less than 100 microradians (μrad) about any axis.
• Material: Stainless steel with thermally matched, hardened steel crossed-roller bearings.

Design and Use

• Applications: Used heavily in fiber optic alignment, photonics research, and precision industrial setups.
• Actuators: Requires three separate actuators (manual or motorized micrometers/adjustment screws) mounted below the top surface to accommodate larger loads.
• Configurations: Available in both imperial/metric thread options and left-handed or right-handed layouts for ergonomic workspace placement.

Tested is Good!
Note:The item is fully functional and is in mint condition as seen in the photos, please see all the photos for the exact specifications and condition of the item.

NOTE TO BUYER:

·Please contact us first to solve any issue and we will respond within 24 hours. We will do our best and help you provide the solution.

·We only sell to buyers with a US address.

·If you were satisfied with our products and services, please take a moment to give us a nice response and rating.

·Items are provided as is. Just like in the photo. please refer to the photos for damages and scratches

·If item is NOT as described or differs from pictures, buyer has 30 days to return

·All orders will be scheduled to ship within 2 business days AFTER payment has been confirmed.

·All items are professionally packed to arrive undamaged.

---

---

---

Newport 562 XYZ Linear Stage, ULTRAlign, 0.5 in., Right-Handed, Mint Condition

$1199.00

---

Newport 562 Series

$2000.00

---

Newport M-462 Crossed-Roller & 562 two axis & Crossed Roller Linear Stage (9969)

$244.15

---
