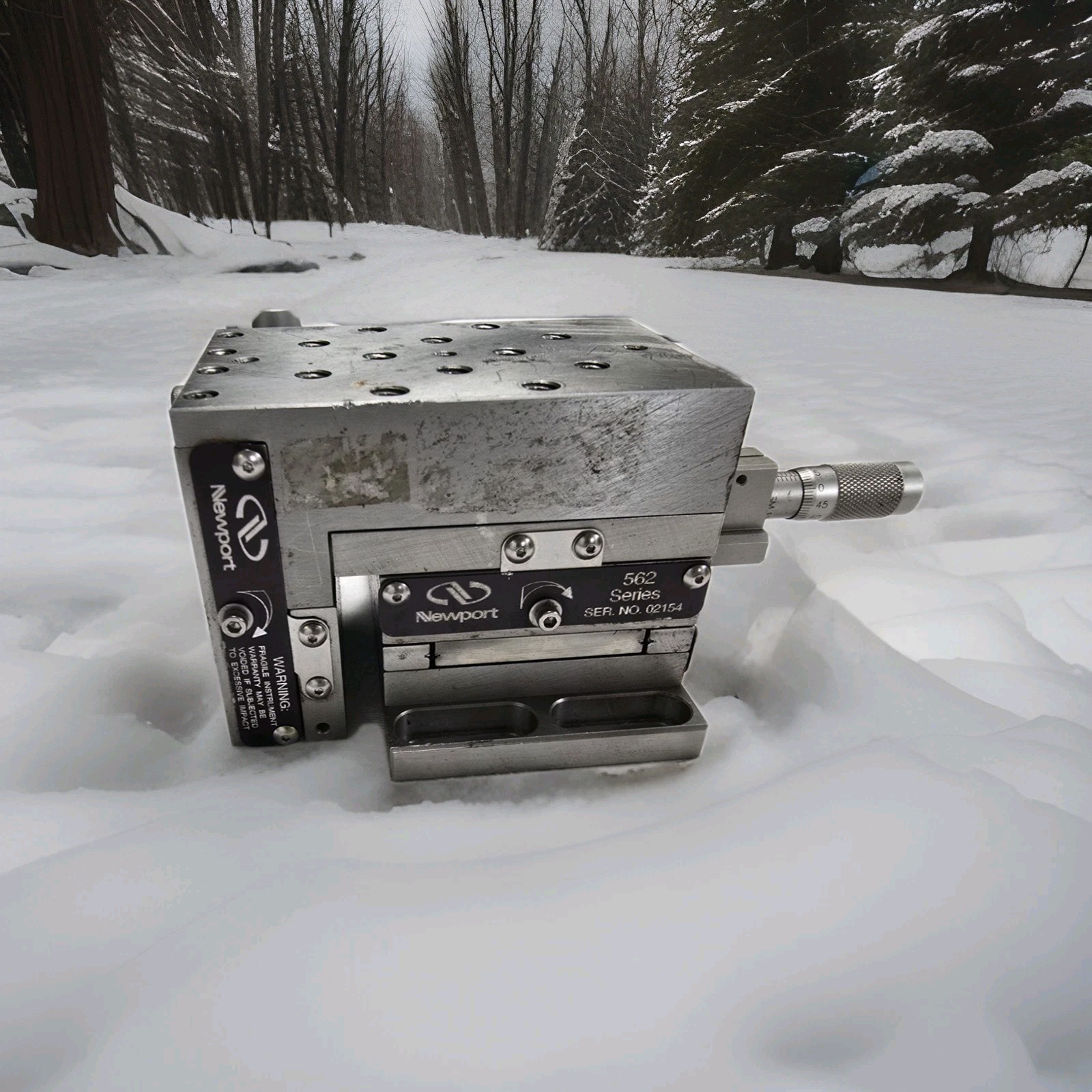

Newport 562 Series:
$2000.00

As is. Fully working14 days returns acceptedSpecifications

• Stage TypeRight-Handed
• Axes of TravelX, Y, Z
• Maximum Stage Travel12.7 mm
• Centered Normal Load Capacity156 N
• Angular Deviation<100 µrad
• MaterialStainless Steel
• BearingsCrossed-Roller Bearings
• Drive LocationCenter drive
• Platform Size63 x 95.3 mm

• Height69.9 mm
• Thread Type8-32 and 1/4-20
• Recommended Adjustment ScrewAJS100-0.5
• Recommended Vernier MicrometerSM-13
• Recommended Lockable MicrometerDM-13L
• Recommended TRA Motorized ActuatorTRA12CCorTRA12PPD
• Recommended TRB Motorized ActuatorTRB12CCorTRB12PP
• Recommended LTA Motorized ActuatorLTA-HS

---

---

---

Newport 562 XYZ Linear Stage, ULTRAlign, 0.5 in., Right-Handed, Mint Condition

$1199.00

---

Newport 562 Series

$2000.00

---

Newport M-462 Crossed-Roller & 562 two axis & Crossed Roller Linear Stage (9969)

$244.15

---
