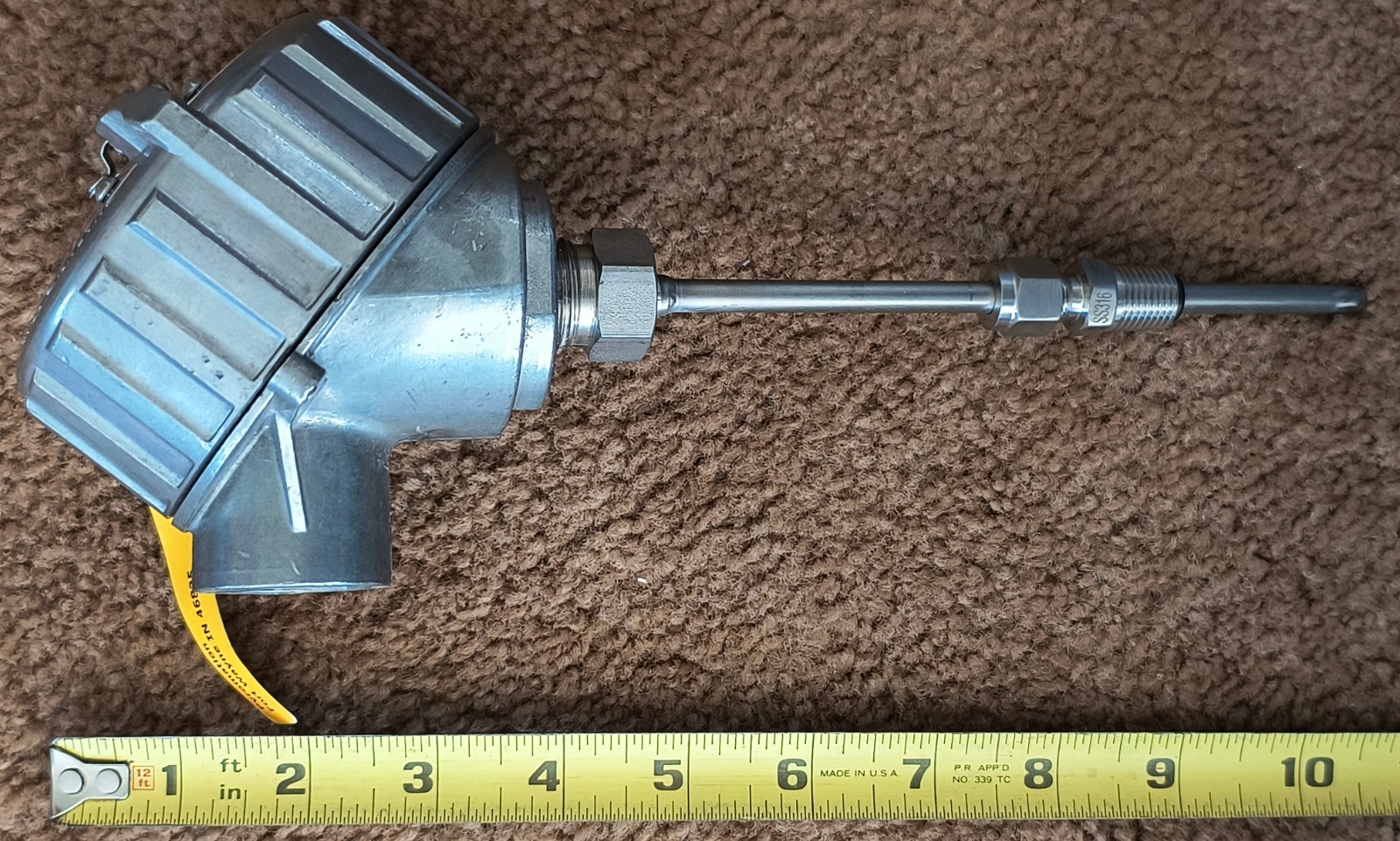

NEW Pyromation K48U-006-12BL-9HP93 XP Explosion-Proof Thermocouple 1" NPT Z796:
$79.98

New Pyromation Explosion-Proof Fixed-Element Thermocouple Sensor – Model K48U-006-12BL-9HP93,Z,(Z796) – Ideal for Hazardous Locations in Oil/Gas, Chemical, and Industrial Applications

This brand-new, never-used Pyromation thermocouple assembly is designed for reliable temperature measurement in explosive environments. Manufactured by Pyromation Inc., it's certified for hazardous areas, preventing ignition of surrounding flammable mixtures. Perfect for refineries, gas processing plants, or any setup requiring Class I Div 1 safety. This is a passive sensor with no transmitter included.

Key Features:

Explosion-Proof Design: Built to meet stringent safety standards for hazardous locations, with aluminum explosion-proof connection head (9HP93) and bayonet lock fitting for adjustable mounting.
Type K Single Thermocouple: Provides accurate sensing with ungrounded junction for isolation and durability.
Robust Construction: 316 stainless steel sheath (1/4" diameter, 6" length) resists corrosion and handles extreme conditions.
Fitting:1/2" NPT Stainless Steel Bushing (No Process Threads)
1" Female NPT Connector: Features a 1" female NPT port (exterior diameter ~1.375", unthreaded interior ~1.0625", threaded interior ~0.9375") for secure connection to compatible 1" male NPT fittings or conduit.
Installation Ease: Seal conduits within 18 inches for compliance; supports direct process installation.

Condition & Packaging: This item is in pristine, new condition – never installed or used. It comes without original packaging but will be securely packed for shipping.

Why Buy This? If you're searching for a high-quality, explosion-proof temperature sensor like Rosemount or Omega alternatives, this Pyromation model offers superior certifications and build quality at a competitive price. Ideal for engineers needing FM/cULus-approved gear for petrochemical, manufacturing, or power sectors.

Returns: 30-day returns accepted with a full refund, and I'll pay the return shipping.

Specifications

Manufacturer: Pyromation Inc.
Part Number: Explosion-Proof Fixed-Element Thermocouple Assembly
Sensor Type: Type K Single Thermocouple (Ungrounded Junction)
Sheath Specifications: 1/4" Diameter, 6" Length, 316 Stainless Steel, MgO Insulated
Connection Head: Aluminum Explosion-Proof (9HP93)
Connector/Port: 1" Female NPT (Exterior Diameter ~1.375", Unthreaded Interior ~1.0625", Threaded Interior ~0.9375")
Hazardous Location Classifications:
- CLASS I DIV 1 GR A (Ambient Temp -20°C to +100°C)
- CLASS I DIV 1 GR B,C,D
- CLASS II DIV 1 GR E,F,G
- CLASS III
- IP66; Ambient Temp -40°C to dir="auto">
- WARNING DO NOT OPEN WHEN ENERGIZED
- CONDUIT SEAL REQUIRED WITHIN 18"
Certifications & Ratings: FM, cULus, Type 4X, IP66
Mounting/Connection Details: Compatible with 1" male NPT fittings for secure conduit or process connection
Input/Output: N/A (Passive Sensor)
