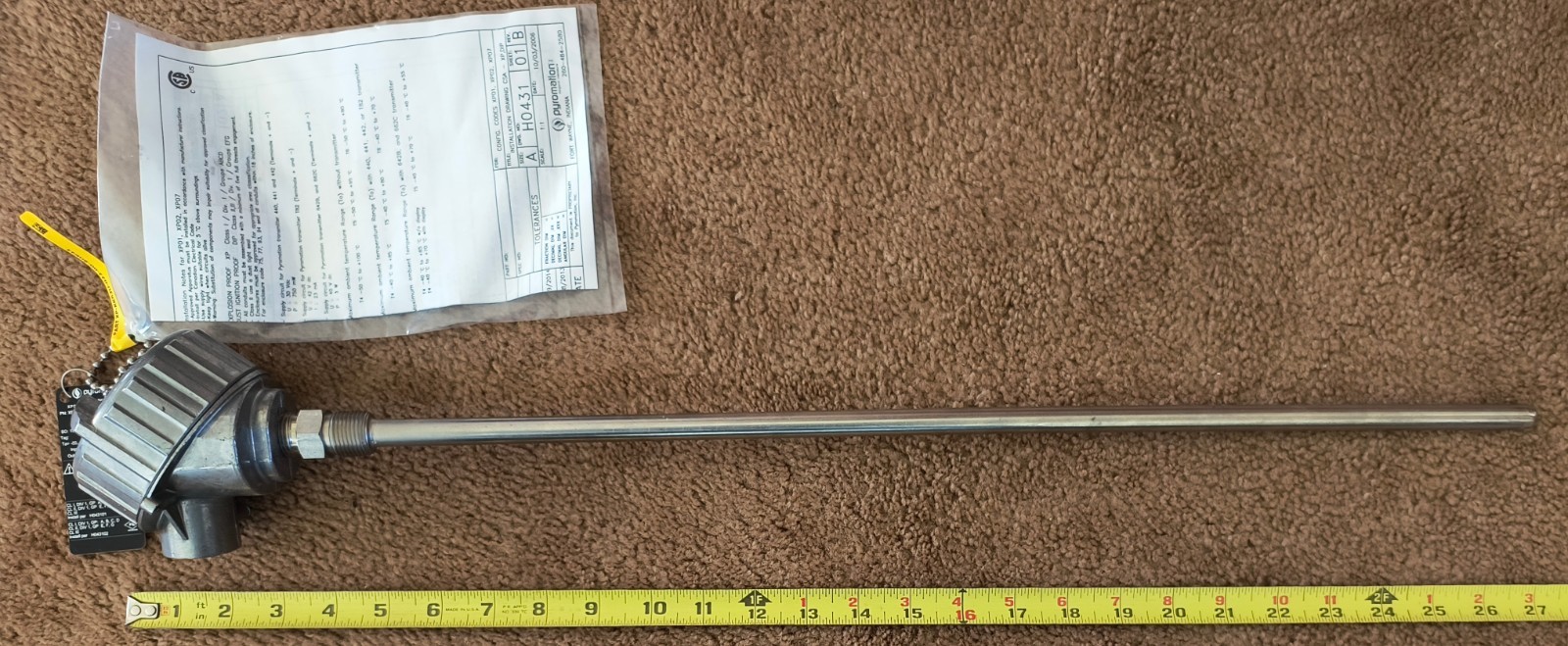

NEW Pyromation XP-KK83U-022-00-8HN93 XP02 Explosion-Proof Thermocouple 22":
$84.98

New Pyromation XP02 Explosion-Proof Fixed-Element Thermocouple Sensor – Model XP-KK83U-022-00-8HN93 – Ideal for Hazardous Locations in Oil/Gas, Chemical, and Industrial Applications

This brand-new, never-used Pyromation thermocouple assembly is designed for reliable temperature measurement in explosive environments. Manufactured in 2019 by Pyromation Inc. (Fort Wayne, IN), it's CSA-certified for U.S. and Canadian hazardous areas, extinguishing internal flames to prevent ignition of surrounding flammable mixtures. Perfect for refineries, gas processing plants, or any setup requiring Class I Div 1 safety. No transmitter included (passive sensor; Input/Output N/A), but compatible with Pyromation models for easy integration. If you're searching for a high-quality, explosion-proof temperature sensor like Rosemount or Omega alternatives, this Pyromation model offers superior certifications and build quality at a competitive price. Ideal for engineers needing FM/cULus-approved gear for petrochemical, manufacturing, or power sectors.

Key Features:

Explosion-Proof Design: Built to meet stringent safety standards for hazardous locations, with aluminum explosion-proof connection head and 1/2" NPT stainless steel bushing.
Type K Duplex Thermocouple: Provides accurate, redundant sensing with ungrounded junction for isolation and durability.
Robust Construction: 316 stainless steel sheath (1/2" diameter, 22" length) resists corrosion and handles extreme conditions.
Versatile Compatibility: Pairs with optional transmitters (e.g., 440/441/442 series) for 4-20 mA output; supports direct process installation without thermowell.
1" Female NPT Connector: Features a 1" female NPT port (exterior diameter ~1.375", unthreaded interior ~1.0625", threaded interior ~0.9375") for secure connection to compatible 1" male NPT fittings or conduit.
Installation Ease: Includes drawing reference H0431 (Rev B, 10/03/2006) for setup guidance; seal conduits within 18 inches for compliance.

Condition & Packaging: This item is in pristine, new condition – never installed or used. Serial/Order Info: SO 1310729-2, Tag:, XP02.

Returns: 30-day returns accepted with a full refund, and I'll pay the return shipping.

Specifications

Manufacturer: Pyromation Inc., Fort Wayne IN 46825 USA (2019)
Part Number: XP-KK83U-022-00-8HN93
Model: XP02 (Explosion-Proof Fixed-Element Thermocouple Assembly)
Sensor Type: Type K Duplex Thermocouple (Ungrounded Junction)
Sheath Specifications: 1/2" Diameter, 22" Length, 316 Stainless Steel
Connection Head: Aluminum Explosion-Proof, 1/2" NPT Stainless Steel Bushing (No Process Threads)
Connector/Port: 1" Female NPT (Exterior Diameter ~1.375", Unthreaded Interior ~1.0625", Threaded Interior ~0.9375")
Hazardous Location Classifications:
- CLASS I DIV 1 GR A (Ambient Temp -20°C to +100°C)
- CLASS I DIV 1 GR B,C,D
- CLASS II DIV 1 GR E,F,G
- CLASS III
- IP66; Ambient Temp -40°C to +100°C
- CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; CL III
Temperature Ratings (Ta): -50...+80/95/100°C (T6/T5/T4)
Maximum Ambient Temperature Ranges:
- Without Transmitter: T4 (-50°C to +100°C), T5 (-50°C to +95°C), T6 (-50°C to +80°C)
- With 440, 441, 442, or TB2 Transmitter: T4 (-40°C to +85°C), T5 (-40°C to +80°C), T6 (-40°C to +70°C)
- With 642B, 662C Transmitter: T4 (-40°C to +85°C w/o display, -40°C to +70°C with display), T5 (-40°C to +70°C), T6 (-40°C to +55°C)
Supply Circuit (Transmitter Compatibility):
- 440/441/442: U ≤ 30 Vdc, I ≤ 750 mW
- TB2: U ≤ 42 Vdc, I ≤ 23 mA
- 642B/662C: U ≤ 40 Vdc, P ≤ 3 W
Enclosure Compatibility:
- Codes 71/81: CL. I, DIV. 1, GP C, D; CL II, III / DIV. 1, GP E, F, G
- Codes 72/82: CL. I, DIV. 1, GP B, C, D; CL II, III / DIV. 1, GP E, F, G
- Codes 74, 75, 76, 77, 84, 93, 94: CL. I, DIV. 1, GP A, B, C, D; CL II, III / DIV. 1, GP E, F, G
Certifications & Ratings: FM, cULus, Type 4X, IP66; CSA for Explosion-Proof/Dust-Ignition Proof
Safety & Installation:
- WARNING: DO NOT OPEN WHEN ENERGIZED / DO NOT REMOVE COVER WHEN CIRCUIT IS ALIVE
- CONDUIT SEAL REQUIRED WITHIN 18"
- Install per H043102, Canadian Electrical Code; Use wires rated 5°C above surroundings; Keep tight when circuits live
- Warning: Substitution of components may impair suitability for approved Reference: Drawing No. H0431, Sheet 01, Rev B (10/03/2006). Note: 2019 tag date likely indicates manufacturing/certification, with unchanged design since 2006.
- Input/Output: N/A (Passive Sensor)
- Mounting/Connection Details: Compatible with 1" male NPT fittings for secure conduit or process connection
