Litz Hitech CV-800 Vertical Machining Center w/ 4th Axis Rotary Table For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

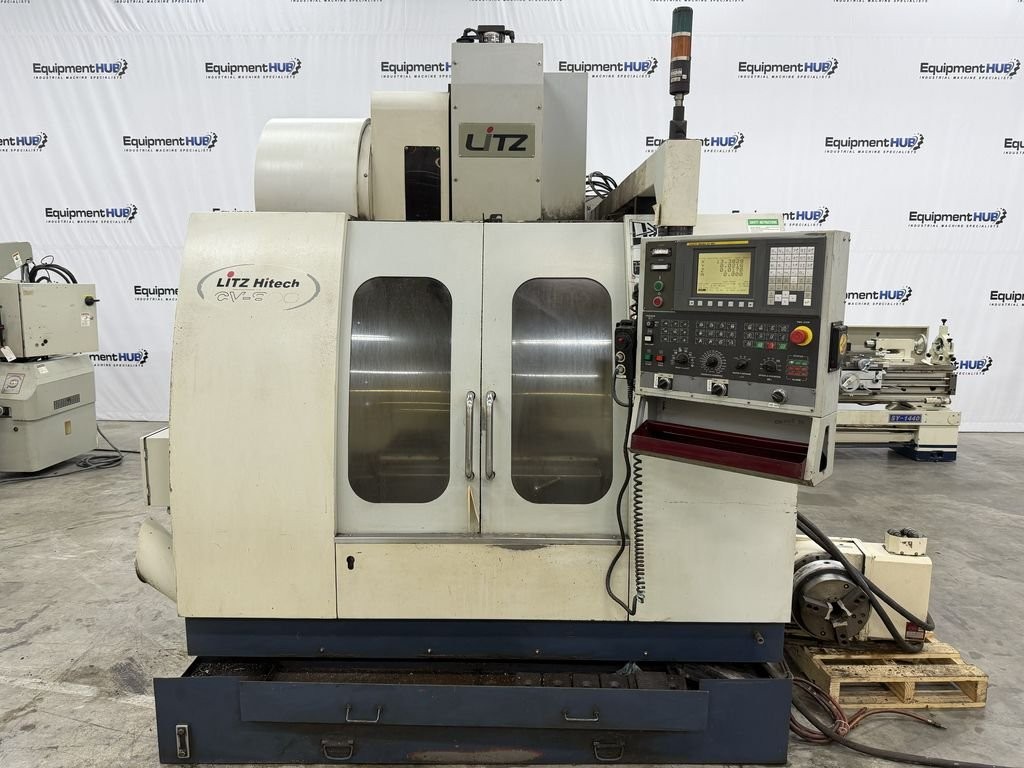

Litz Hitech CV-800 Vertical Machining Center w/ 4th Axis Rotary Table:
$18500.00

Stock Number 190260011

Click a thumbnail to enlarge

Litz Hitech CV-800 Vertical Machining Center w/ 4th Axis Rotary Table General Info

Stock #: 190260011
Location: Decatur, GA
Brand: Litz Hitech
Model: CV-800
Serial #: 3A07A0897
Year: 2007
Approx. Shipping Weight: 12,000 Lbs.
Approx. Shipping Dimensions: 8′ L x 8′ W x 8′ H

Specifications

Table Size: 39.4″ x 19.7″
X-Axis Travel: 31.5″
Y-Axis Travel: 19.7″
Z-Axis Travel: 21.3″
Spindle Speed: 8,000 RPM
Tool Magazine Capacity: 24-Position
Spindle Power: 15 HP
Spindle Taper: BT40
Electrical: 220V/3PH

Equipped With

Fanuc Series 0I-Mc 4-Axis CNC Control, 24-Position Carousel Automatic Tool Changer With BT40 Tooling, Tsudakoma Rna-320R 4Th Axis CNC Rotary Table With 3-Jaw Chuck (Made In Japan), Full Enclosure With Sliding Doors, Flood Coolant System

Additional Info

The Litz Hitech CV-800 Vertical Machining Center can be demoed upon request. Check out the video on the listing to see it in operation.
