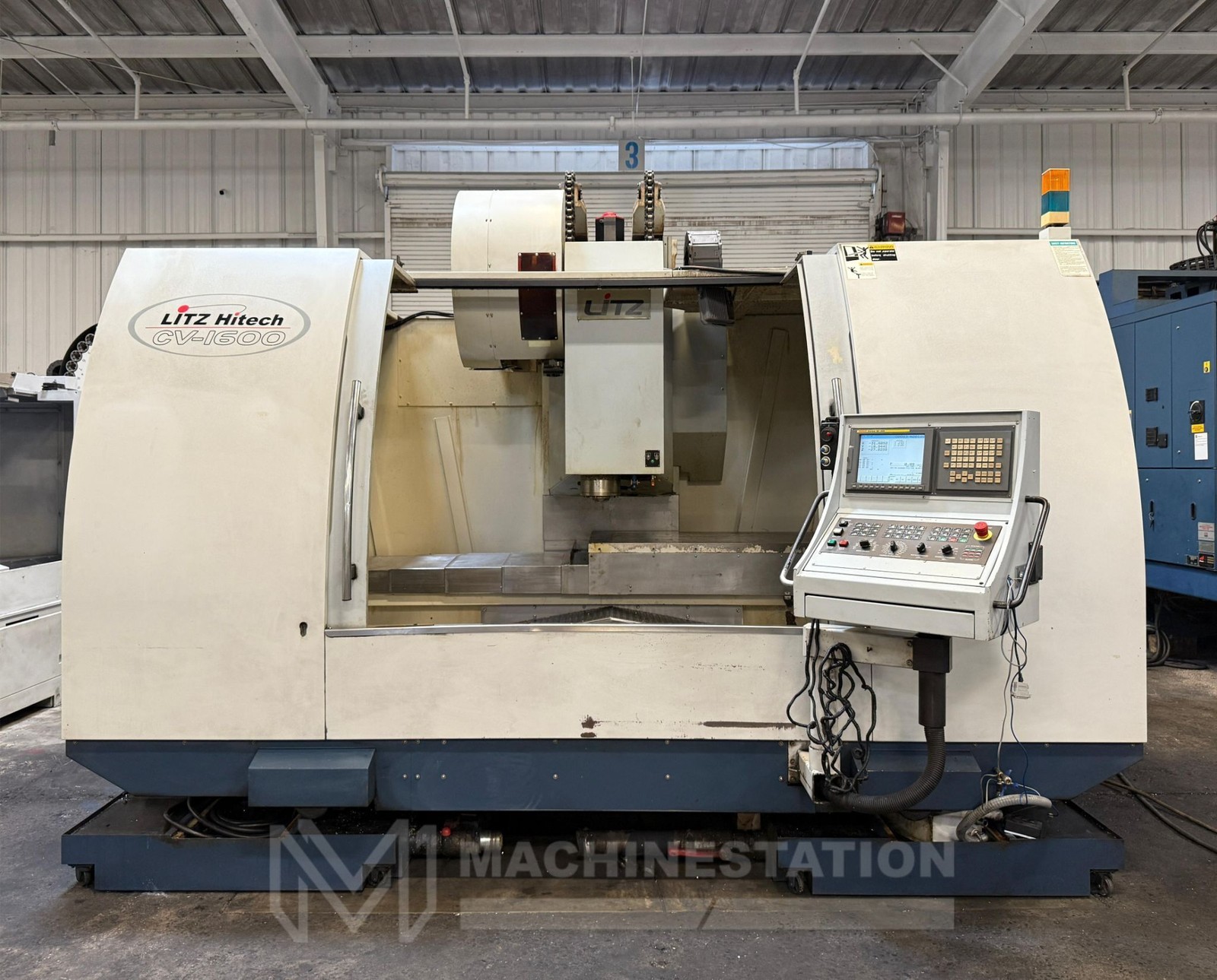

Litz Hitech CV-1600 CNC Vertical Machining Center - Mill For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Litz Hitech CV-1600 CNC Vertical Machining Center - Mill:
$29700.00

Litz Hitech CV-1600 CNC Vertical Machining Center - Mill Overview:

Type:

Machining Centers, Vertical

Brand:

LITZ HITECH

Model:

CV-1600

Year:

2007

Stock #:

112876

specifications:

X Axis

62.99\"

Y Axis

35.43\"

Z Axis

31.49\"

Power

20 hp

RPM

10,000 RPM

# ATC

Taper

Table-W

33.46\"

Table-L

66.93\"

# Axis

Weight

41887 lbs Approx.

Dimensions

152″ x 144″ x 132″ High Approx.

Spec Sheet:

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.Equipment is sold AS-IS, WHERE-IS. All sales are final.Features:Fanuc Series 18i-MB CNC Control10,893 Hours Cutting TimeLinear Guideways Construction40 Spindle TaperRigid TappingCoolant SystemTable:Length: 66.93″Width: 33.46″Number of Std T-Slots: 7Max Weight on Table: 4,410 lbsTravel:X-Axis: 62.99″Y-Axis: 35.43″Z-Axis: 31.49″Rapid Traverse Rates X & Y Axis: 787 Inch Per MinuteRapid Traverse Rates Z Axis: 590 Inch Per MinuteCutting Feed Rates: 314 Inch Per MinuteSpindle Nose to Table: (Min.- Max.): 3.93″ – 35.43″Automatic Tool Changer:Capacity: 30 StationMax Tool Dia: 4.921″Max. tool length: 13.78″Max. tool weight: 33.06 lbsSpindle:Taper Size: 40Speed Range: 10,000 RPMSpindle Power: 20 HPGeneral:Air Required: 85 psi 6 scfmPower: 220v / 50/60 Hz / 3-Phase / 42 kvaMachine Diemensions: 152″ x 144″ x 132″ High Approx.Weight: 41,887 lbs

equipped with:

10,000 RPM High Speed Spindle30 Station Automatic tool changerSpindle Chiller UnitMPG Hand Wheel ControlDual Chip Auger
