JDSU VIAVI OneExpert ONX-620 CATV Meter Docsis 3.1:
$999.99

JDSU VIAVI OneExpert ONX-620 CATV Meter
Sweep-Capable High-Split Module ONX-CATV-D31-S-4220-1012 + Charger

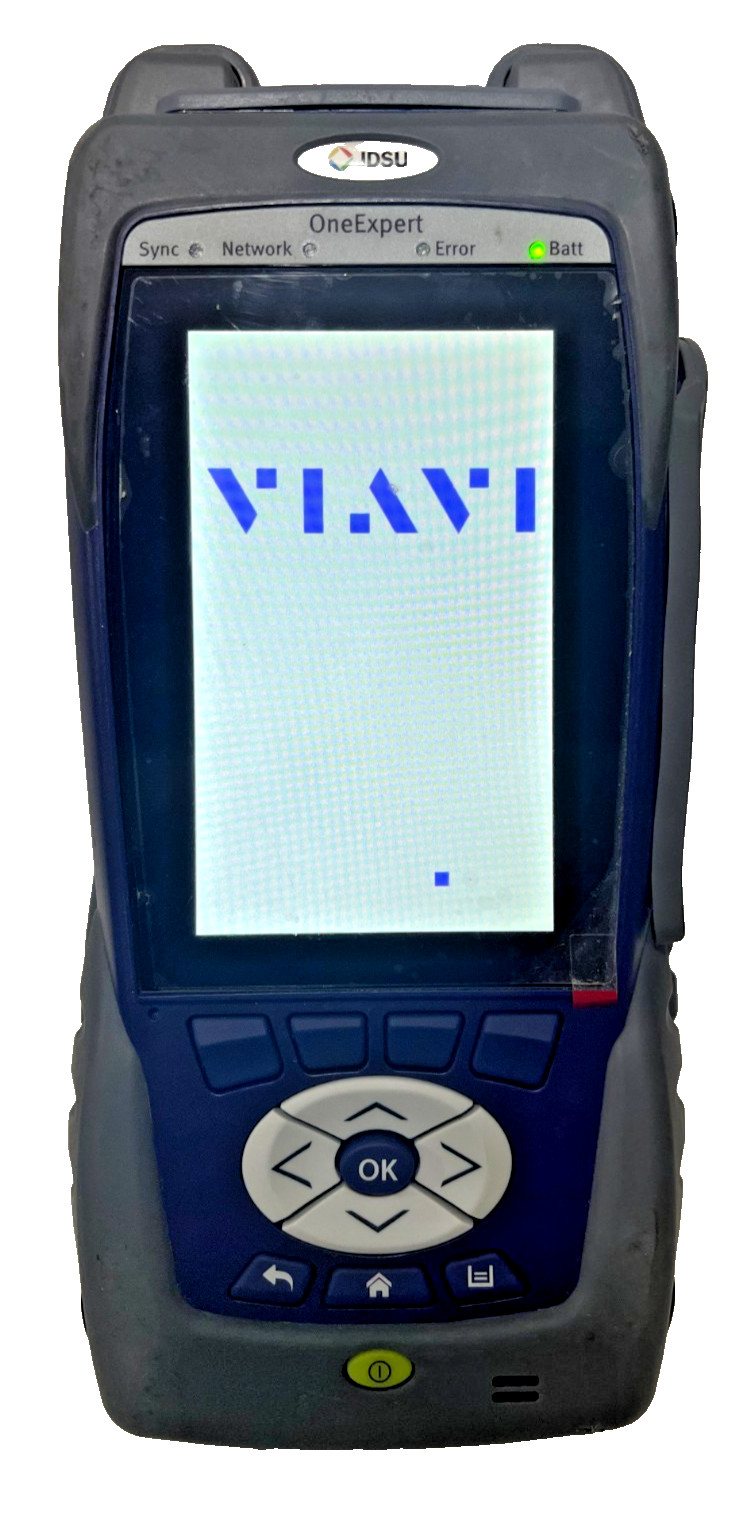

Used VIAVI / JDSU OneExpert ONX-620 with a high-split, sweep-capable CATV module installed. Meter powers on, boots to the VIAVI splash screen, and shows 100% battery in the photos. AC charger included.

WHAT YOU GET

VIAVI OneExpert ONX-620 mainframe
Installed RF/DOCSIS module: ONX-CATV-D31-S-4220-1012, serial RRXB0005000002
AC charger / power supply

This listing is the meter, module and charger only. No extra instruments, no extra cases, no extra jumpers unless pictured.

METER IDENTITY

Meter model: ONX-620
Unit ID: RRQA0052660177
Assembly ID: 22089324
SW bundle: ONXCBL.3.20.10_MFG038
Base: 4.30.10_MFG038
Cable: 3.20.10_MFG038
DOCSIS cable modem 3390: 1.6.620
Ethernet MAC: 00:07:11:10:BB:CE
System MAC: 00:07:11:10:BB:CF

MODULE / HARDWARE OPTIONS (read from the meter)This is not a basic 42/85 install module. The sled is:

Hardware reports:

DOCSIS 3.1 HW capable
Low/high diplexers: 42/200 MHz – 1.0/1.2 GHz
Ingress scan range 4–204 MHz
Sweep capable
Field View capable
MoCA 2.0 bonding capable
Port 2 clamping
WiFi region FCC/IC, country US
HL leakage capable
Digital hum capable

What that means on the plant:

Dual diplex 42 MHz and 200 MHz (high-split)
Downstream to 1.0 GHz on the low split and 1.2 GHz on the high split
Upstream / ingress to 204 MHz
Sweep hardware is in the module

SOFTWARE THAT IS ENABLED

ONX DOCSIS 32x8 bonding
ONX Bluetooth
ONX Mobile
RSG TX
Ingress Expert

SOFTWARE THAT IS NOT ENABLED (shows Upgradeable)Sweep hardware is present. Sweep licenses are not turned on. Do not buy this as a ready-to-sweep 630 replacement unless you already have licenses or plan to buy them.

Not enabled on this unit:

ONX DOCSIS 3.1 OFDM
ONX Forward Sweep
ONX Reverse Sweep
Sweepless Sweep
Reverse Alignment
SWX / NTX / TSX / IPX packages
OneCheck Expert
Field View / Field View with RSG
Home TDR
HL Leakage (software)
Ookla / VoIP MOS
IP Video
ONX MoCA
RSG Loopback
SmartAccess Anywhere
Database Mining

So you get a 620 chassis with a high-split D3.1 sweep-ready module, 32x8 bonding, Bluetooth/Mobile, Ingress Expert, and RSG TX. OFDM lock and sweep tests still need licenses.

CONDITIONUsed field meter. Holster and bumpers have normal scuffs and dirt from truck use. Screen is readable. Battery showed 100% in the photos. Sold as-is, tested for power-on and menu access. No current VIAVI calibration certificate included unless stated in a later message. Buyer should verify licenses and calibration against their own plant requirements.

WHY THIS ONE IS DIFFERENTMost used ONX-620s ship with a 42/85, non-sweep 1 GHz module. This one already has the Charter / Spectrum / Cox style high-split sled: 42/200 MHz, 1.0/1.2 GHz, sweep-capable hardware. The chassis is still an ONX-620 (96 Wh class), not an ONX-630, so sweep apps stay locked until licensed.

GOOD FOR

High-split 204 MHz return plant
DOCSIS 3.0 32x8 service testing
Ingress Expert work
Techs who already own sweep licenses or will add OFDM / sweep later
Spare / backup 620 with a better module than stock

NOT READY FOR (without extra licenses)

DOCSIS 3.1 OFDM analysis
Forward / reverse / sweepless sweep
Home TDR, Field View, Speedtest, TrueSpeed, VoIP

SHIPPING / TERMSShips with the charger. Packed to protect the F-ports and screen. No returns for missing software options — they are listed above from the actual screens. Ask questions before offerding if you need a specific license or a current cal sticker.
