For Compressed Air Line System Max Line 3/4" Shop Piping Kit Rapid Air Maxline:
$155.99

Compressed Air Line System Max Line 3/4" Shop Piping Kit Rapid Air Maxline M7500

Description:

Set up a compressed air system with the 3/4-Inch Master Kit with 3 air outlet locations. The tubing has an aluminum core sandwiched between an inner and outer layer of polyethylene. Tubing can be mounted on wall surfaces, in wall, or buried underground or concrete. Tubing holds any hand bent shape. Reduce shop clutter with this industrial compressed air piping system. No glue, soldering or crimping needed. Simply cut the tubing to length, insert in the fitting and tighten. Easy to expand with more air outlet locations or modify later.

Features：
Easy to Bend.
Easy Installation.
Flexible Layout.

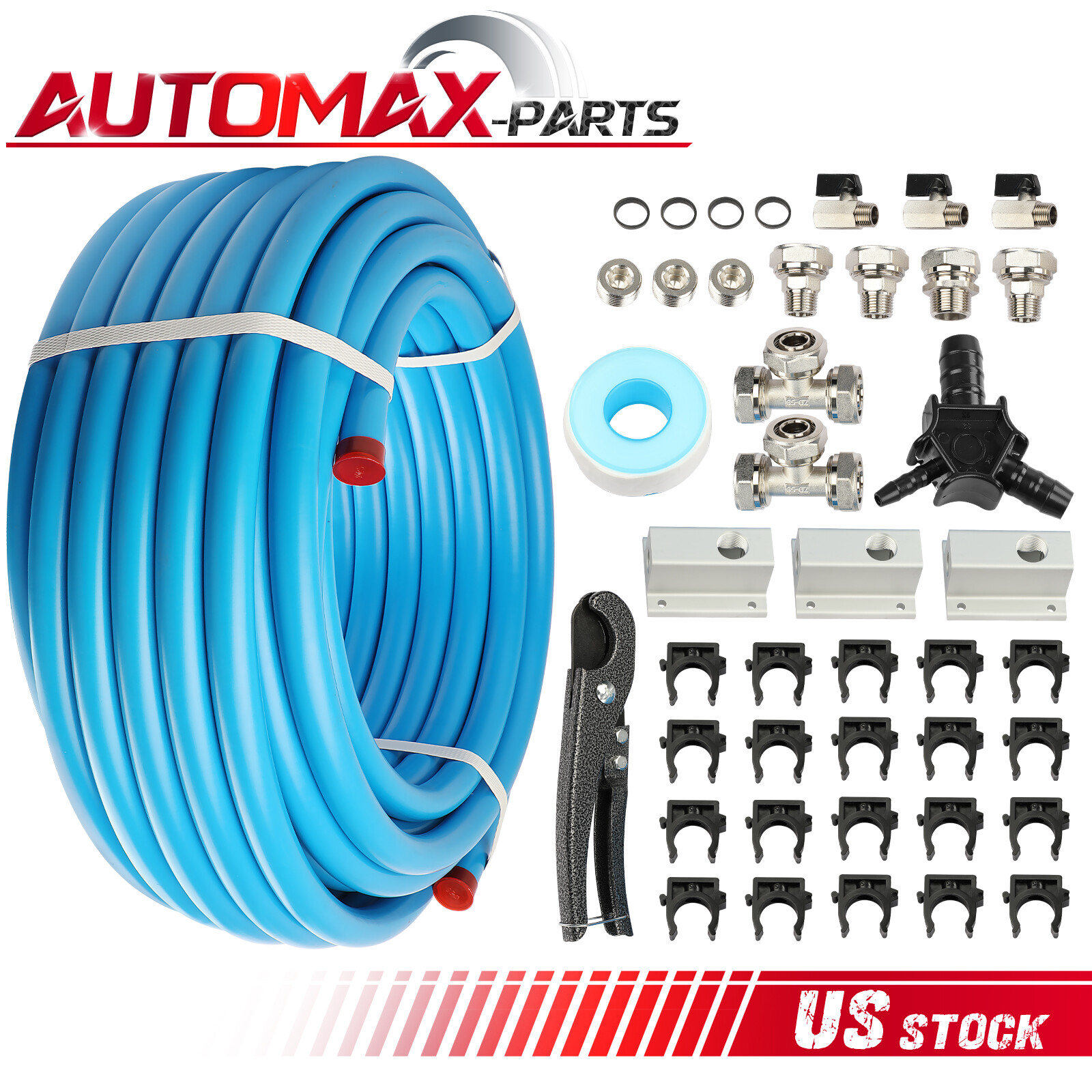

Package Includes:100 ft M6030 Tubing
M81010 Aluminum Blocks*3
M8005 ¾” Tubing x 1/2” NPT fittings*3
50136 ½” npt Plugs*3
50120 3/8” npt Drain Valves*3
M8003 ¾” Tubing x ¾” NPT Fitting*1
M8011 Tee Fittings*2
M8065 10 PACK Tubing Clips (20 clips total)*2
M8091 Cutter*1
M8095 Bevel Tool*1

Installation:

Cut the tubing square
Bevel the pipe end
Push the fitting onto the tubing
Turn the nut finger tight
Tighten the nut with wrench a minimum ¾ turn

Note:

175 psi maximum working pressure, 3/4-Inch inside diameter x 1-Inch outside diameter

Compression style nickel plated brass fittings

Recommended usage 150 ft.; maximum from the air compressor, up to 4000 sq.; ft.; buildings, up to 10-HP air compressor

Use only with 3/4-Inch system
