On eBay Now...Compressed Refrigerated Air Dryer for 7.5-10HP Compressor 110-115V 35CFM 1 Phase For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

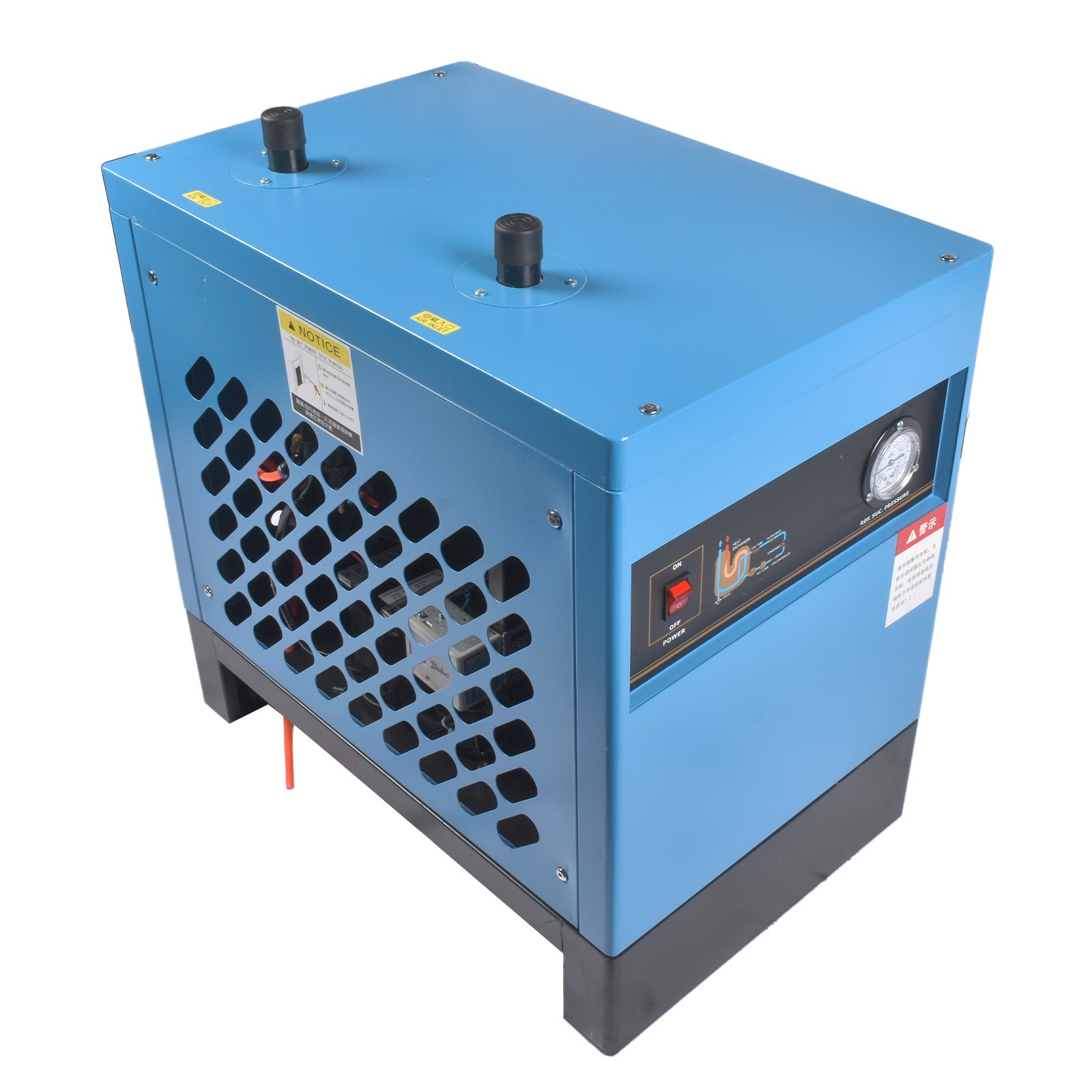

Compressed Refrigerated Air Dryer for 7.5-10HP Compressor 110-115V 35CFM 1 Phase:
$695.00
Vehicle Refrigerated Air Dryer with R134a Cooling System for Air Compressors – 35 CFM, 0.58 KW, 110V/60Hz – Removes Moisture, Oil, Contaminants – Ideal for Workshop, Garage, Pneumatic ToolsPowerful Moisture Elimination: Designed for 7.5 HP & 10 HP air compressors, this industrial-grade refrigerated air dryer efficiently removes water vapor, oil aerosols, and contaminants from compressed air, ensuring clean, dry airflow for pneumatic tools, spray painting, and CNC machines.
High-Performance Cooling with R134a Refrigerant: Equipped with an energy-efficient R134a cooling system (0.58 KW), this dryer maintains stable temperatures to prevent moisture buildup, even in high-demand workshop or garage environments.
Heavy-Duty 35 CFM Capacity: Delivers 35 cubic feet per minute (CFM) of dry air, making it ideal for industrial, automotive, and manufacturing applications where moisture-free compressed air is critical.
Versatile & Reliable for Multiple Uses: Perfect for sandblasting, laser cutting, HVAC systems, and woodworking. Operates at 115V/60Hz and includes safety protections against overheating and voltage Refrigerated Air Dryer
Flow Capacity: 35 CFM
Refrigerant Type: R134A
Voltage: 110-115V / 60HZ / 1 Phase
Power: 0.58KM
Air capacity: 1.0m³/min
Work pressure: ≤1.0Mpa
Inlet temperature: ≤45℃
Dew point temperature: 2-10℃
Operation method
1. Check whether the refrigeration system pressure of the machine is normal. Check that the ball valve at the front of the automatic drainage valve is open.
2. Send the power supply to the control box, press ON/OFF button switch ON button, machine contactor suction, compressor operation. At this time, the refrigerant low pressure gauge pointer should indicate that it is in the range of 60~85Psig. If the load exceeds this range, adjust it.
3. After the compressor runs smoothly, the pressure of the refrigerant high pressure gauge rises to between 120 and 240psi.
When the high pressure of the refrigerant is higher than this range, check whether the heat dissipation of the condenser is good, and whether the inlet temperature of the air compressor and the ambient temperature are too high. When the antifreeze switch is lower than 140Psig, the condensing fan stops running to increase the pressure to ensure the normal operation of the machine. If the machine is operated at low pressure for a long time, check whether the refrigeration system leaks.
4. Please turn off the air compressor before shutting down. After turning OFF the air compressor, press the ON/OFF switch to turn off the power supply of the machine.
Shipping Policy-Please leave us your full name, your telephone number and detailed address when ordering.
-We ship to your or Paypal address. Please make sure your and Paypal address is correct before you pay the order.
-We try our best to pack the products as good and safe as possible ,so they always arrive in a good condition.
-The items will be the shipped the same working day for the order before 10:00 a.m.
-The items will be the shipped the other working day for the order after 10:00 a.m.
-We accept PayPal only.
-All major credit cards are accepted through secure payment processor PayPal.
-Payment must be received within 4 business days of sale closing.
-We offer sophisticated products at a high technological level, with the highest possible quality and the most favorable price.
-With these parts you can replace your defective parts simply plug and play.
-Our warranty is valid for max. 24 months without mileage limitation.
-Please compare carefully with Photos or OE number before purchasing the part.
-Once a problem occurs with the purchased product, please do not hesitate to let us know with messages,we will offer you refund or replacement.
Powerful Moisture Elimination: Designed for 7.5 HP & 10 HP air compressors, this industrial-grade refrigerated air dryer efficiently removes water vapor, oil aerosols, and contaminants from compressed air, ensuring clean, dry airflow for pneumatic tools, spray painting, and CNC machines.
High-Performance Cooling with R134a Refrigerant: Equipped with an energy-efficient R134a cooling system (0.58 KW), this dryer maintains stable temperatures to prevent moisture buildup, even in high-demand workshop or garage environments.
Heavy-Duty 35 CFM Capacity: Delivers 35 cubic feet per minute (CFM) of dry air, making it ideal for industrial, automotive, and manufacturing applications where moisture-free compressed air is critical.
Versatile & Reliable for Multiple Uses: Perfect for sandblasting, laser cutting, HVAC systems, and woodworking. Operates at 115V/60Hz and includes safety protections against overheating and voltage Refrigerated Air Dryer
Flow Capacity: 35 CFM
Refrigerant Type: R134A
Voltage: 110-115V / 60HZ / 1 Phase
Power: 0.58KM
Air capacity: 1.0m³/min
Work pressure: ≤1.0Mpa
Inlet temperature: ≤45℃
Dew point temperature: 2-10℃
Operation method
1. Check whether the refrigeration system pressure of the machine is normal. Check that the ball valve at the front of the automatic drainage valve is open.
2. Send the power supply to the control box, press ON/OFF button switch ON button, machine contactor suction, compressor operation. At this time, the refrigerant low pressure gauge pointer should indicate that it is in the range of 60~85Psig. If the load exceeds this range, adjust it.
3. After the compressor runs smoothly, the pressure of the refrigerant high pressure gauge rises to between 120 and 240psi.
When the high pressure of the refrigerant is higher than this range, check whether the heat dissipation of the condenser is good, and whether the inlet temperature of the air compressor and the ambient temperature are too high. When the antifreeze switch is lower than 140Psig, the condensing fan stops running to increase the pressure to ensure the normal operation of the machine. If the machine is operated at low pressure for a long time, check whether the refrigeration system leaks.
4. Please turn off the air compressor before shutting down. After turning OFF the air compressor, press the ON/OFF switch to turn off the power supply of the machine.
Shipping Policy-Please leave us your full name, your telephone number and detailed address when ordering.
-We ship to your or Paypal address. Please make sure your and Paypal address is correct before you pay the order.
-We try our best to pack the products as good and safe as possible ,so they always arrive in a good condition.
-We accept PayPal only.
-All major credit cards are accepted through secure payment processor PayPal.
-Payment must be received within 4 business days of sale closing.
-We offer sophisticated products at a high technological level, with the highest possible quality and the most favorable price.
-With these parts you can replace your defective parts simply plug and play.
-Our warranty is valid for max. 24 months without mileage limitation.
-Please compare carefully with Photos or OE number before purchasing the part.
-Once a problem occurs with the purchased product, please do not hesitate to let us know with messages,we will offer you refund or replacement.
