Fluke 1623-2 GEO Earth Ground Tester For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Fluke 1623-2 GEO Earth Ground Tester:
$800.00

Fluke 1623-2 GEO Earth Ground TesterMeasurement CapabilitiesTest Methods: 3- and 4-pole Fall-of-Potential, 4-pole Soil Resistivity, selective testing (1 clamp), and stakeless testing (2 clamps).Resistance Range: 0.020 Ω to 19.99 kΩ (Resolution: 0.001 Ω to 10 Ω).Accuracy: ±(2% rdg + 3 digits) for standard 3/4-pole tests; ±(7% rdg + 3 digits) for selective clamp tests.Measuring Frequency: 128 Hz with Automatic Frequency Control (AFC).Measuring Voltage: 48 V AC.General SpecificationsDisplay: 1999-digit LCD with fluorescent backlight.Memory: Internal storage for up to 1,500 records, downloadable via USB.Power Supply: Six 1.5 V alkaline AA batteries (typical life >3,000 measurements).Operating Temperature: -10°C to 50°C (14°F to 122°F).Enclosure Rating: IP56 for the case, IP40 for the battery door.Dimensions: 250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in).Weight: 1.1 kg (2.43 lb) with batteries.

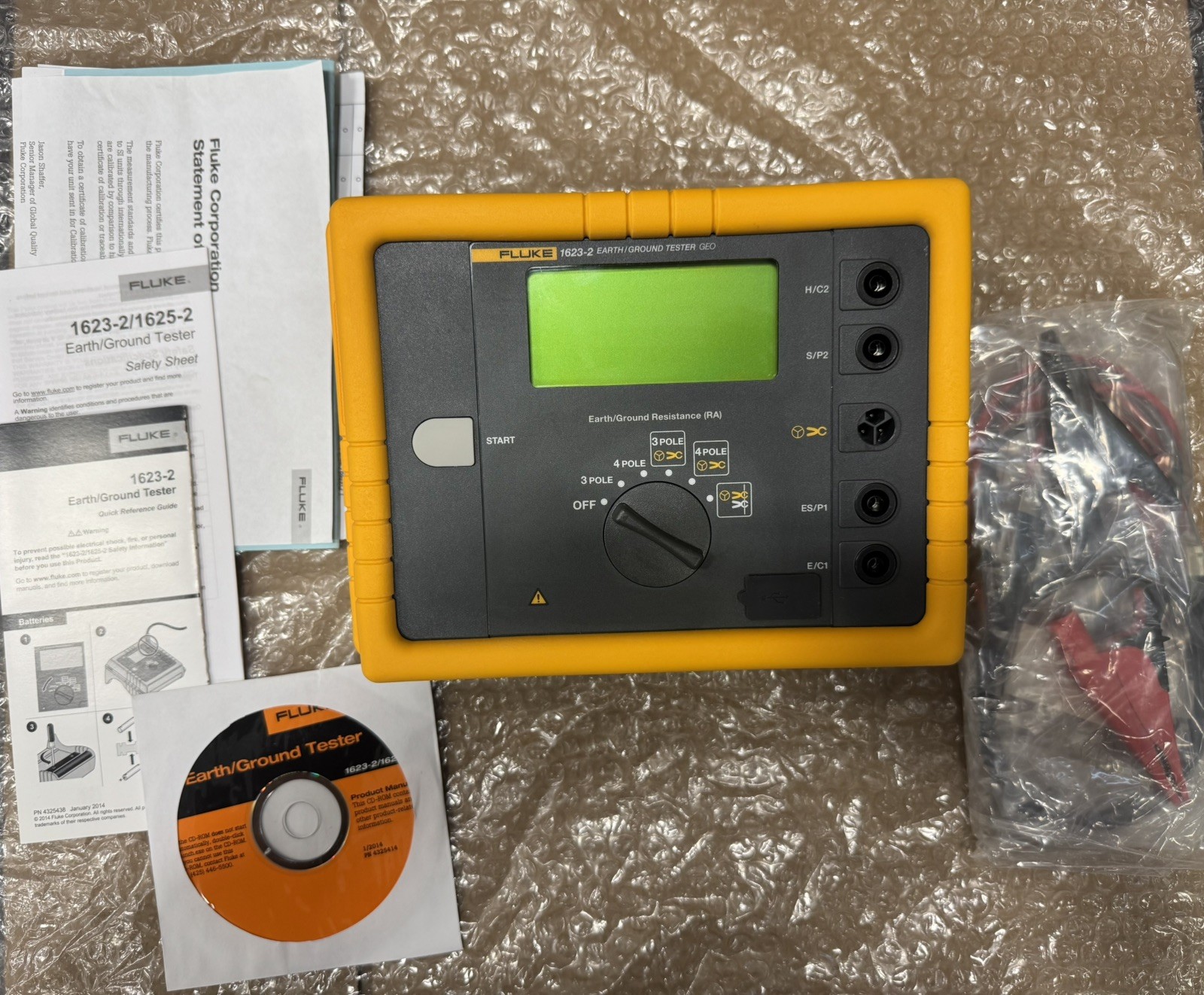

This items works great only used a handful of times. *Item is how it’s shown in pictures*
*No case / bag*
*NO RETURNS ACCEPTED*
