FLUKE 1623-2 KIT BASIC GEO EARTH GROUND TESTER GROUND STAKES WIRE REELS CLAMP For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

FLUKE 1623-2 KIT BASIC GEO EARTH GROUND TESTER GROUND STAKES WIRE REELS CLAMP:
$3286.00

SERIOUSBUYERS ONLY!
PLEASE READ STORE DETAILSCAREFULLY!

*** brand new ***

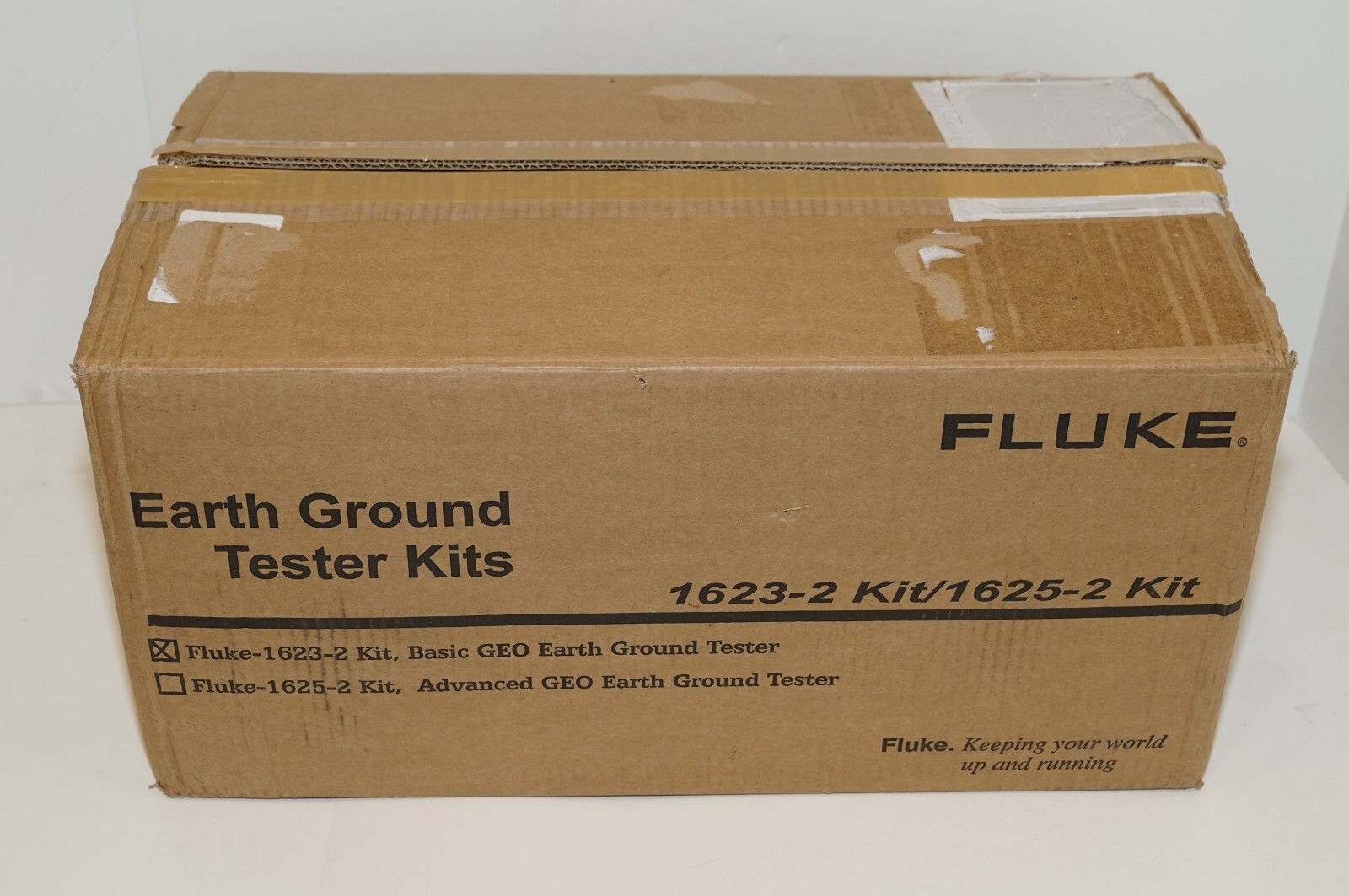

FLUKE 1623-2 KIT BASIC GEO EARTH GROUND TESTER WITH STAKES, WIRE REELS AND

EI-162X AND EI-162AC CLAMPS

Item Details:

Manufacturer:FLUKE

Description from Manufacturer:

Stakeless Testing

The Fluke 1623-2 earth ground tester is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall-of-Potential test method must be used.

With Stakeless testing, the earth ground rod does not need to be disconnected - leaving the bonded earth ground system intact during test. Gone are the days of spending time placing and connecting stakes for each earth ground rod on your system - a major time saver. You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil.

The Most Complete Tester

The Fluke 1623-2 is a unique earth ground tester that can perform all four types of earth ground measurement.

3- and 4-Pole Fall-of-Potential (using stakes)
4-Pole Soil Resistivity Testing (using stakes)
Selective Testing (using 1 clamp and stakes)
Stakeless Testing (using 2 clamps only)

The Fluke 1623-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port. World class accessories will simplify and speed up testing time.

Fluke 1623-2 GEO Earth Ground Tester summary

3- and 4-pole Fall-of-Potential, earth resistance loop testing
4-pole Soil Resistivity testing
Selective earth ground rod testing using 1 clamp
Stakeless earth ground rod testing using 2 clamps
IP56 rated for outdoor use
Rugged carrying case
USB data storage and transfer

General Specifications Display: 1999 digit LCD Display with special symbols, digit height 25 mm, fluorescent backlight User interface Instant measurement through TURN and START one button concept. The only operating elements are rotary switch and START button Robust, water and dust resistant Instrument is designed for tough environmental conditions (rubber protective cover, IP56) Memory Internal memory storage up to 1500 records accessible via USB port Temperature Range Operating temperature -10°C to 50°C (14°F to 122°F) Storage temperature -30°C to 60°C (-22°F to 140°F) Temperature coefficient ±0.1% of reading/°C < 18°C > 28°C Intrinsic error Refers to the reference temperature range and is guaranteed for 1 year Operating error Refers to the operating temperature range and is guaranteed for 1 year Climatic class C1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH Protective type IP56 for case, IP40 for battery door according to EN60529 Safety Protection by double and/or reinforced insulation. max. 50 V to earth. IEC61010-1: Pollution degree 2 EMC (emission immunity) IEC61326-1: Portable Quality system Developed, designed and manufactured according to DIN ISO 9001 External voltage V ext, max = 24 V (DC, AC < 400 Hz), measurement inhibited for higher values V ext rejection > 120 dB (162/3, 50, 60, 400 Hz) Measuring time Typical 6 seconds Max. overload 250 V rms (pertains to misuse) Auxiliary power 6 x 1.5 V Alkaline (type AA LR6) Battery life span Typical > 3,000 measurements Dimensions (W x H x D) 250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in) Weight 1.1 kg (2.43 lb) including batteries
7.6 kg (16.8 lb) incl. accessories and batteries in carrying case RA 3-Pole Ground Resistance Measurement (IEC 1557-5) Switch position RA 3-pole Resolution 0.001 O to 10 O Measuring range 0.020 O to 19.99 kO Accuracy ±(2% rdg + 3 d) Operating error ±(5% rdg + 3 d) Measuring Principle: Current/Voltage Measurement Measuring voltage Vm = 48 V AC Short-circuit current > 50 mA Measure frequency 128 Hz Probe resistance (RS) Max 100 kO Auxiliary earth electrode resistance (RH) Max 100 kO Additional error from RH and RS Monitoring of RS and RH with error indicator.
Automatic range selection.
Measurement is not performed if the current through the current clamp is too low. RA 4-Pole Ground Resistance Measurement (IEC 1557-5) Switch position RA 4-pole Resolution 0.001 O to 10 O Measuring range 0.020 O to 19.99 kO Accuracy ±(2% rdg + 3 d) Operating error ±(5% rdg + 3 d) Measuring Principle: Current/Voltage Measurement Measuring voltage Vm = 48 V AC Short-circuit current > 50 mA Measure frequency 128 Hz Probe resistance (RS + RES) Max 100 kO Auxiliary earth electrode resistance (RH) Max 100 kO Additional error from RH and RS Monitoring of RS and RH with error indicator.
Automatic range selection. RA 3-Pole Selective Ground Resistance Measurement with Current Clamp (RA with Clamp ) Switch position RA 3-pole with clamp Resolution 0.001 O to 10 O Measuring range 0.020 O to 19.99 kO Accuracy ±(7% rdg + 3 d) Operating error ±(10% rdg + 5 d) Measuring Principle: Current/Voltage Measurement (with External Current Clamp) Measuring voltage Vm = 48 V AC Short-circuit current > 50 mA Measure frequency 128 Hz Probe resistance (RS) Max 100 kO Auxiliary earth electrode resistance (RH) Max 100 kO Monitoring of RS and RH with error indicator.
Automatic range selection.
Measurement is not performed if the current through the current clamp is too low. RA 4-Pole Selective Ground Resistance Measurement with Current Clamp (RA with Clamp ) Switch position RA 4-pole with clamp Resolution 0.001 O to 10 O Measuring range 0.020 O to 19.99 kO Accuracy ±(7% rdg + 3 d) Operating error ±(10% rdg + 5 d) Measuring Principle: Current/Voltage Measurement (with External Current Clamp) Measuring voltage Vm = 48 V AC Short-circuit current > 50 mA Measure frequency 128 Hz Probe resistance (RS) Max 100 kO Auxiliary earth electrode resistance (RH) Max 100 kO Monitoring of RS and RH with error indicator.
Automatic range selection.
Measurement is not performed if the current through the current clamp is too low. Stakeless Ground Loop Measurement (2 Clamps ) Switch position RA 4-pole 2 clamps Resolution 0.001 O to 10 O Measuring range 0.020 O to 19.99 kO Accuracy ±(7% rdg + 3 d) Operating error ±(10% rdg + 5 d) Measuring Principle: Stakeless Measurement of Resistance in Closed Loops Using Two Current Transformers Measuring voltage Vm = 48 V AC Measure frequency 128 Hz Noise current (IEXT) Max. IEXT = 10 A (AC) (RA < 20 O) Max. IEXT = 2 A (AC) (RA > 20 O) Automatic range selection.
The information regarding stakeless ground loop measurements is only valid when used in conjunction with the recommended current clamps at the minimum distance specified.

Includes:

GEO Earth Ground Tester
2 Alligator clips
Stackable Test Leads
User’s Manual
Batteries
Quick Reference Guide
USB Cable
2 Clamps
C1620 Professional Carrying Case
4 Earth Ground Stakes
3 Cable Reels

Condition:BRAND NEW
