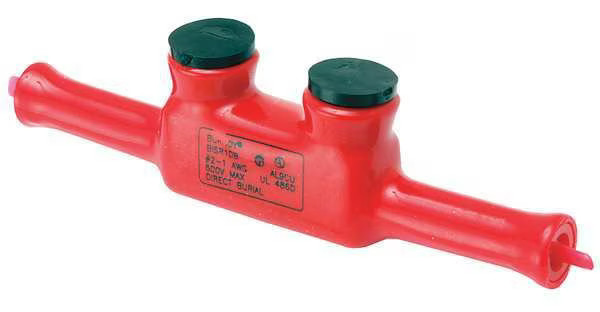

Burndy Bisr1db Insulated Multitap Connector,6.30 In. W:
$76.26

Insulated Multitap Connector, Body Material Aluminum, Color Red, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, Head Style Hex, Hex Size 5/32 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL 486A, UL 486B, UL Listed, Connector Type Double-Sided Entry
Item: Insulated Multitap Connector
Connector Type: Double-Sided Entry
No. of Ports: 2
Min. Conductor Size: 2 AWG
Max. Conductor Size: 1 AWG
Insulation Material: Plastisol
Stud Size: 5/16 in
Material: Aluminum
Length: 6.3 in
Width: 1.59 in
Head Style: Hex
Max. Voltage: 600V AC/DC
Body Material: Aluminum
Screw Material: Aluminum
Standards: UL 486A, UL 486B, UL Listed
Direct Burial Rated: Yes
Length (Straight Wireway): 6.3 in
Maximum Voltage: 600 V
For Stranded Copper Wire Size - Minimum: 2 AWG
Overall Length: 6.3 in
Maximum Operating Temperature: 194 Degrees F
Torque: 130 in-lb
For Conductor Material: Aluminum, Copper
Hex Size: 5/32 in
Color: Red
Tap Shape: T
Number of Ports: 2
Special Features: Insulated, Oxide Inhibitor Pre-Installed Preventing Moisture and Contaminants From Entering Contact Area, Saves Time
For Stranded Copper Wire Size - Maximum: 1 AWG
Mounting Hole Size: Not Applicable
Finish: Unplated
Overall Width: 0.88 in
RoHS Compliant: Yes
Strip Length: 7/8 in
Type: BISR
Conductor Size: 2-1 AWG
Trade Name: UNITAPâ„¢
Operating Voltage: 600 V
Dimension - Height inch: 1.75 in
Conductor - AL Str Size: 2 AWG;1 AWG
Rating - Minimum Voltage: 600
Application: For Outside Direct Burial
Voltage - Maximum: 600 V
Dimension - Strip Length inch: 7/8 in
Insulation Type: Plastisol
Conductor - Copper Str Size: #2 AWG;#1 AWG
Plated: N
Dimension - Width inch: 0.88 in
Physical Attribute - Screw Type: Allen
Physical Attribute - Number of Screws: 2
Conductor Type: AL C Str-SizeCU C Str-Size
Standards - Industry Standards Met: UL468A-468B
Dimension - Screw Size inch: 45062
Dimension - Width mm: 22.3 mm
UL Listed: Yes
Conductor - Copper Str Size Range: 2 - 1 Str
Industry Standard(s): UL468A-468B
Dimension - Length Overall inch: 6.3 in
Insulation: Y
Conductor - AL Str Size Range: 2 - 1 Str
Installation Torque Recommended in-lb: 130 in-lb
Temperature Rating: 90 Â°C
Certification - UL Listed Direct Burial: Yes
Dimension - L Length Overall mm: 160 mm
Hex Key: 5/32 in
Plating Type: Unplated
Certification - CSA Approved: No
Country of Origin (subject to change): United States
Package Quantity: 1
