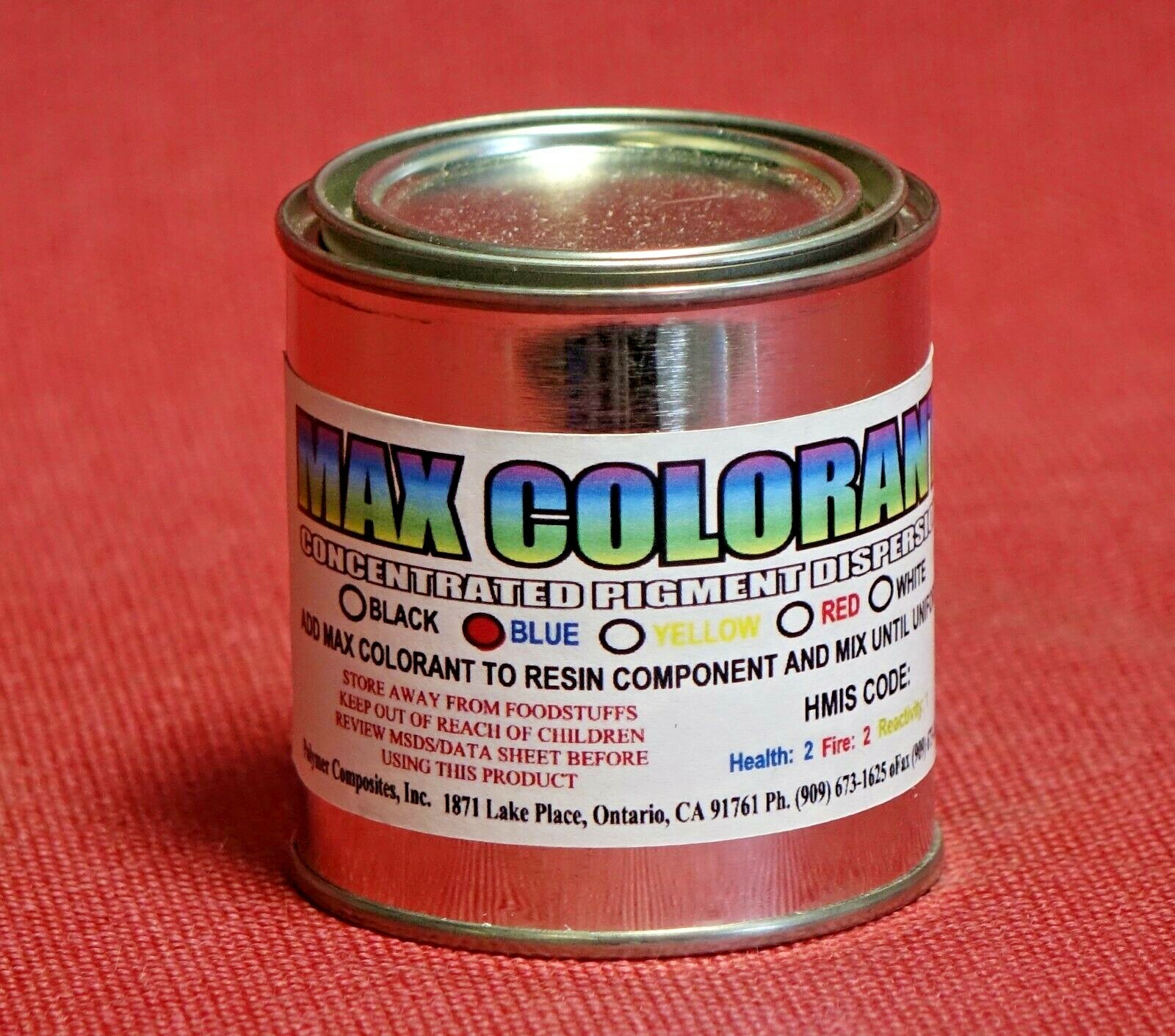

Blue Pigment Paste 4 All Epoxy Resins -Add Color & Tint , Improve UV Resistance :
$30.92

MAX PIGMENT PASTE BLUE8 Fluid Ounces ConcentratedPaste For Epoxy

MAX COLOR PIGMENT PASTE are concentrated color additives used to tintand color epoxy resin systems.It is a highly concentrated paste that exhibits strong color saturation and excellent color fastnessItis comprised of high-quality powder color pigments dispersed in an epoxy resin binder.It is processed through chromium hardened grind roller mill for absolute dispersion and color uniformity.This special processing breaks down pigment agglomerates into individual submicron particles.Special additives are also added to prevent agglomeration and to increase opacity and color quality.
MAX COLOR PIGMENT PASTEis a smooth workable pastethat is 100 percent reactive and compatible with thermoset epoxy resin systems.It will not reduce or alter the gloss property of the epoxy resinor other mechanical properties.Itwill not leach or bleed off making it suitable for protective,decorative coatingsand casting applications.

MAX COLOR PIGMENT DISPERSION PASTEis an excellent additive to enhance overall UV resistance properties.

AddMAX COLOR PIGMENT DISPERSION PASTEto the resin component (PART A) and mix until the paste is completely incorporated.

It is highly concentrated so a 3% addition to a clear epoxy system will produce translucent to opaque color density.

This 8-ounce kit will tint up to a gallon of epoxy resin to an opaque color.

It can be blended with otherMAX COLOR PIGMENT PASTEtocreate any desired colors.

Additions of greater than 5% to the epoxy resin will require adjustment of the curing agent mix ratio.

Color pigment addition to an epoxy resin system with a scale - YouTube

Video will open in a new windowUsing the App? Paste link into a browser window:

[isdntekvideo]

SCROLL DOWN FOR USAGE AND ADDITION INSTRUCTIONSOTHER AVAILABLE

MAXCOLOR PIGMENT CONCENTRATES

MAX YELLOW CONCENTRATE PIGMENT

MAX BLUE CONCENTRATE PIGMENT PASTE

MAX RED CONCENTRATE PIGMENT PASTE

MAX WHITE CONCENTRATE PIGMENT PASTE

MAX BLACK COLOR CONCENTRATE

All of our MAX COLOR CONCENTRATE dispersion is processed and milled using a precision 3 roll mill.This ensures pigment dispersion and particle size reduction of no greater than 2 microns.1-micron unit is equivalent to 0.039370079 inches or mil.To put it in simple perspective, a particle measuring 25 microns is 1/16 the size the human eye can detect.

The color featured in this picture is the WHITE COLOR CONCENTRATE, however, all MAX COLOR PIGMENT PASTE are milled to the same 2-micron particle size.The milled MAX COLOR PIGMENT PASTE is degassed to remove air bubbles that can affect color opacity.This process also ensures a homogeneous dispersion of the color pigment with the epoxy binder.

AllMAX COLOR PIGMENT PASTEAre Tested For Fineness Of Grind And Uniform Dispersion

Hegman Fineness of Grind Gauge measure the particle size of a pigment particle from 100 to 0microns.

1 Micron Unitis equivalent to 0.00003970079inchesormil.To put it in simple perspective, a particle measuring 25 microns is 1/16 the sizethe human eye can detect.

ADDITION PROCEDURE

Use a digital scale and take note proportions for color repeatability and making large batches.

NOW AVAILABLE: DIGITAL SCALE class="MsoNormal" align="center" style="text-align: center; font-size: large;">Purchase this digital scale and the shipping cost is free. Please make sure to request a total before paying so we can include the combined shipping discount.

Warm the resin component or part a and pigment concentrate to 100°F.
Pour all of the resin in an appropriate size container.
Use a variable speed mixer and an impeller/disperser to uniformly disperse the MAX COLOR CONCENTRATE into the resin or PART A first.
Engage the mixer under slow speed using an impeller.
For high color opacity, add at least 20% of CALCIUM CARBONATE.
Turn the mixer off and add a small amount of max colorant and mix until uniform.
To add more colorant, turn off the mixer first and then add the colorant.
Mix until a homogenous color consistency is achieved.
Allow the mixture to rest for 24 hours to allow any air bubbles to degas.
Re-warming the mixture will accelerate degassing.
Do not add the curing agent to the warm resin. Allow the mixture to cool to room temperature.
Some phase separation may occur if the resin is allowed to sit for more than 24 hours.
Adjust the mix ratio based on the amount of calcium carbonate added to the mixture.

Understanding Color Hues,Tints,Shades, And Tones

HUES

These are the purest and brightest colors.They form the full spectrum of colors which progress around the Primary Color Wheel in gradual increments.TINTSA Tint is sometimes called a Pastel. It's simply any color with white added. A color scheme using Tints is soft, youthful and soothing.Tints would work well in in a girl's room or for a website targeted to women.SHADESA Shade is simply any color with black added. Shades are deep, powerful and mysterious.They work well in a masculine environment and are best used as dark accents.TONESA Tone is created by adding both White and Black. Any color that is "grayed down" is considered a Tone.Tones are somehow more pleasing to the eye.They are complex, subtle and sophisticated and the best choice for most interior decorating and work well in almost any color scheme.
Reduce the curing agent by weight by 15% if the added weight of calcium carbonate is also 15%.Higher loading of the calcium carbonate, up to 50% by weight can be added but it will significantly increase the viscosity and density as well as extend the cure time.

SAMPLE OPAQUE COLOR

Parts in Grams

MAX CLRPart A Resin Component

80.0 grams

MAX COLOR PIGMENT PASTE (any color)

5.0 grams

CALCIUM CARBONATE(optional, for deep opacity)

15.0 grams

PART A Total

100.0 grams

Blend the first three components together until homogeneousand set aside for 2 to 4 hours and allow mixed in air bubbles to outgas. This mixture will not cure since there is curing agent in the mixture

The mix ratio of the MAX CLR is 200:100 or 2:1 based on unfilled state. The mix ratio based on weight only. For example, 80 grams PART A will require 40 grams PART B regardless of the amount of calcium carbonate added to the resin component

MAX CLRPart B Curing Agent

PART B Total

40.0 grams

PART A & PART B Total

140 grams

Adjust the batch size accordingly. The amount of calcium carbonate can be adjusted up to 50% of the resin component.
Make sure to keep the PART A to PART B mix ratio at a constant 2:1.

Adding the MAX PIGMENT PASTE andCALCIUM CARBONATEto the resin component (PART A) will form a more stable mixture.

MAX PIGMENT PASTE Can Be Used And Added To Any Of Our Max Epoxy Resin System.CALCIUM CARBONATEIs Used To Increase Color Density and Opacity

ADDING MAX COLOR CONCENTRATE TO THE PART A OR RESIN COMPONENT

MAX ACR CORAL REEF FABRICATION
MAX COLOR PASTE mixed with our MAX ACR was used to produce this aquarium safe reef display.

MAX ACR AQUARIUM SAFE CONSTRUCTION EPOXY RESIN - YouTube

Video will open in a new window

[isdntekvideo]

Links to products used;

MAX ACR A/BAquarium Safe Resin System, Other MAX resin systems can utilized
CALCIUM CARBONATE,Epoxy Filler

MAX EPOXY COLORANT KIT, Pigment Paste Kit

MAXCOLOR PIGMENT CONCENTRATES

These are color concentrates only and must be dispersed an epoxy resin or PART A component.

MAX COLOR class="MsoNormal" style="text-align: center; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">
