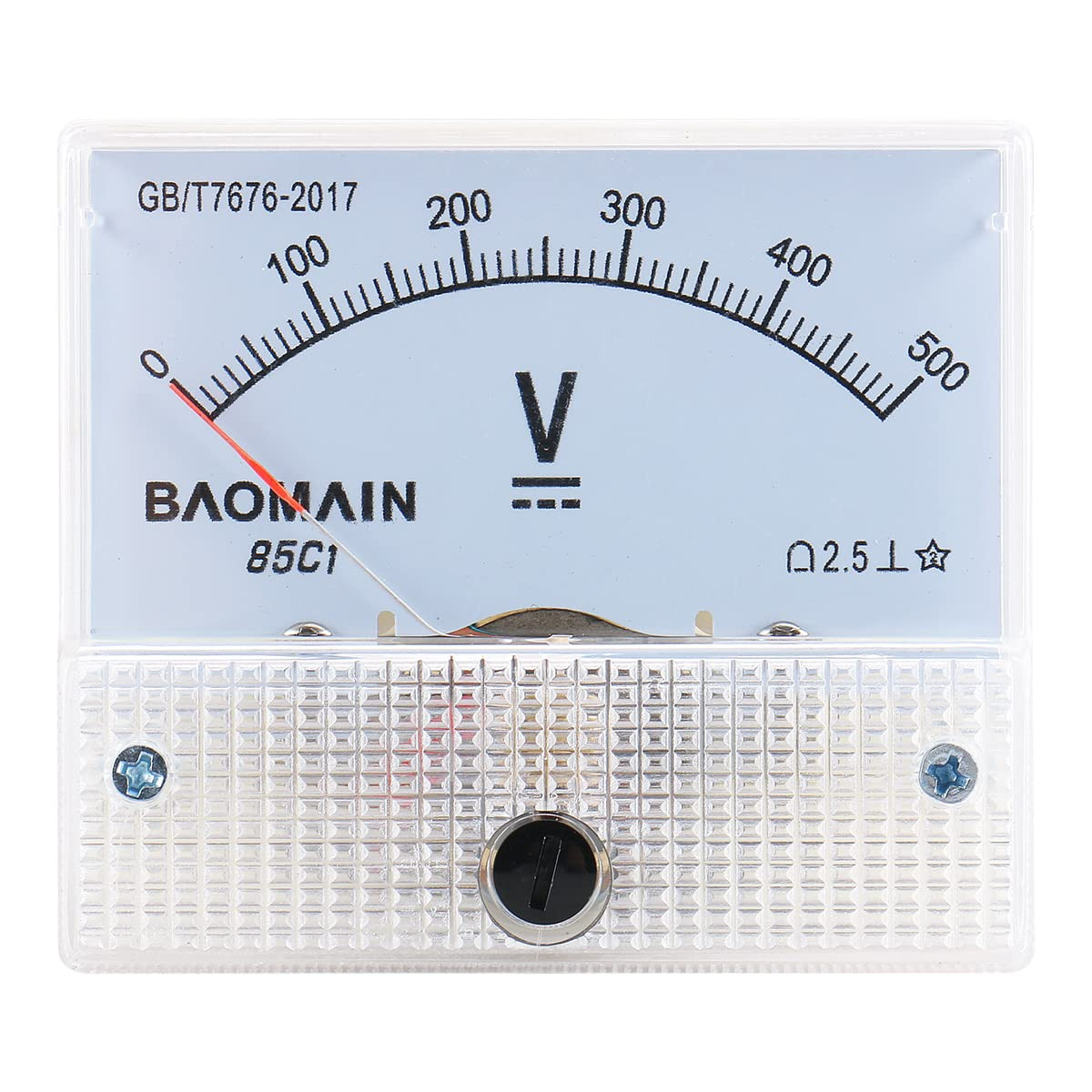

Baomain Analog Voltmeter 85C1 DC 0-500V Rectangle Analog Volt Panel Meter Gauge:
$16.43

• Store
• New Arrivals
• Add to Favorite
• View response
• Contact

Baomain Analog Voltmeter 85C1 DC 0-500V Rectangle Analog Volt Panel Meter GaugeDescription Item model number 85C1-V-50V Item dimensions L x W x H 2.52 x 28.32 x 2.2 inches Product Dimensions 2.52 x 28.32 x 2.2 inches Material Plastic Item Weight 0.07 Kilograms Is Discontinued By Manufacturer No Brand Baomain Manufacturer Hua

• Measuring Current Range: DC 0-500V
• Accuracy: Class 2.5
• Total Height(Not Included Screw): 47mm/1.85\"
• Panel Size: 65 x 57 x 10mm/2.6\" x 2.2\" x 0.4\"(L*W*T)
• Package Content: 1 x Analog Voltmeter ,Several Installing Parts

• Measures current range of DC 0-50V with accuracy of Class 2.5.
• Clear and easy to read scale and a button for fine tuning the dial.

---

---

---
