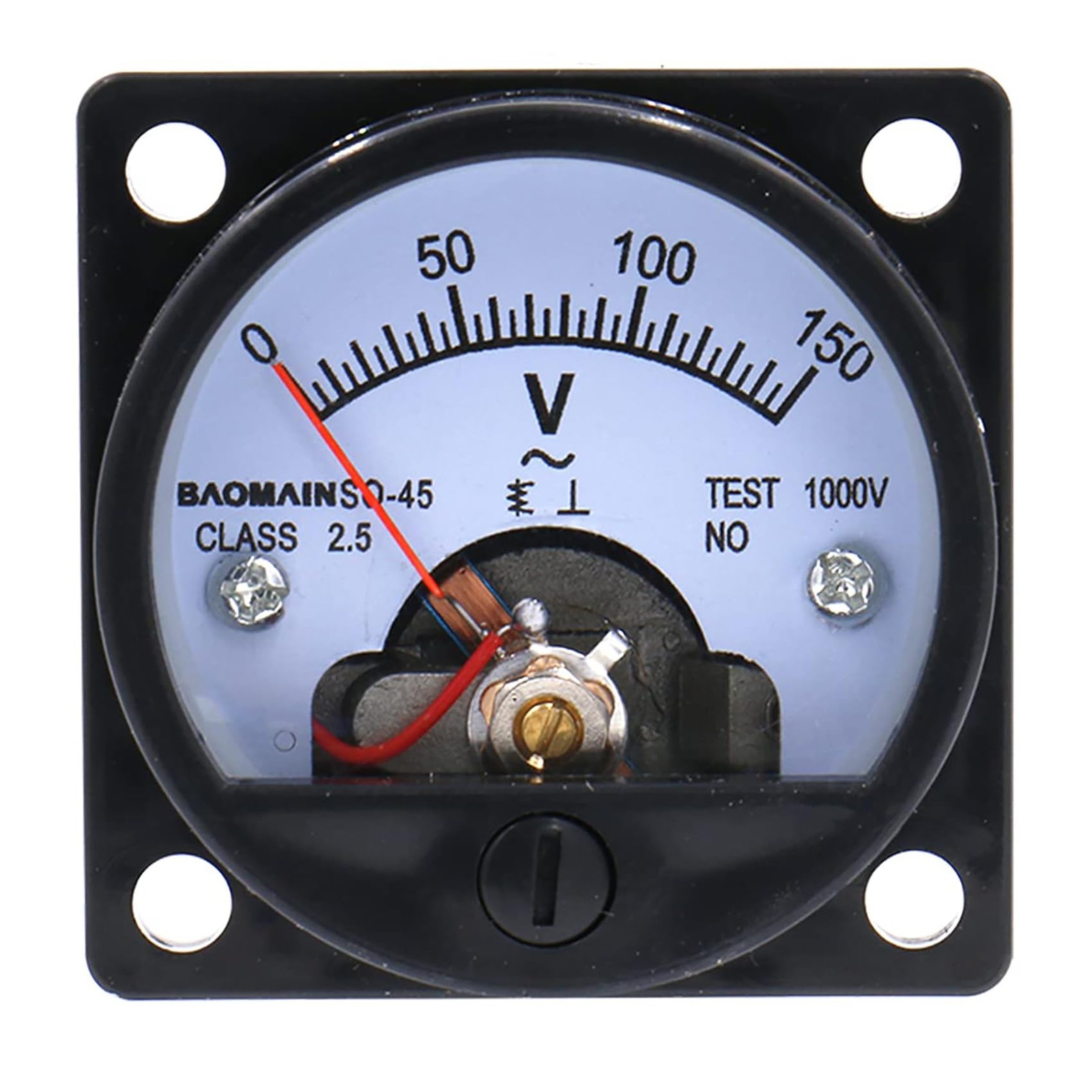

Baomain Analog Dial Panel Meter Voltmeter Gauge SO-45 AC 0-150V Round Black :
$12.75

Baomain Analog Dial Panel Meter Voltmeter Gauge SO-45 AC 0-150V Round Black
Product Details

• Measuring Current Range: AC 0-150V; Accuracy: Class 2.5
• Thread Size: 4.5mm/ 0.18\"
• Overall Depth: 47mm/ 1.9\"
• Meter Face Dia.(Approx): 45mm/ 1.8\"; Mount Size: 37 x 37mm/ 1.5\" x 1.5\" (L*W)
• Net Weight: 56g

Measures voltage range of AC 0-150V with accuracy of Class 2.5. Clear and easy to read scale and a button for fine tuning the dial.

---

---

---
