Appleton Powertite ACP3034BC Clamping Ring Plug | 30A | 4-Pole 3-Wire | 600V For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

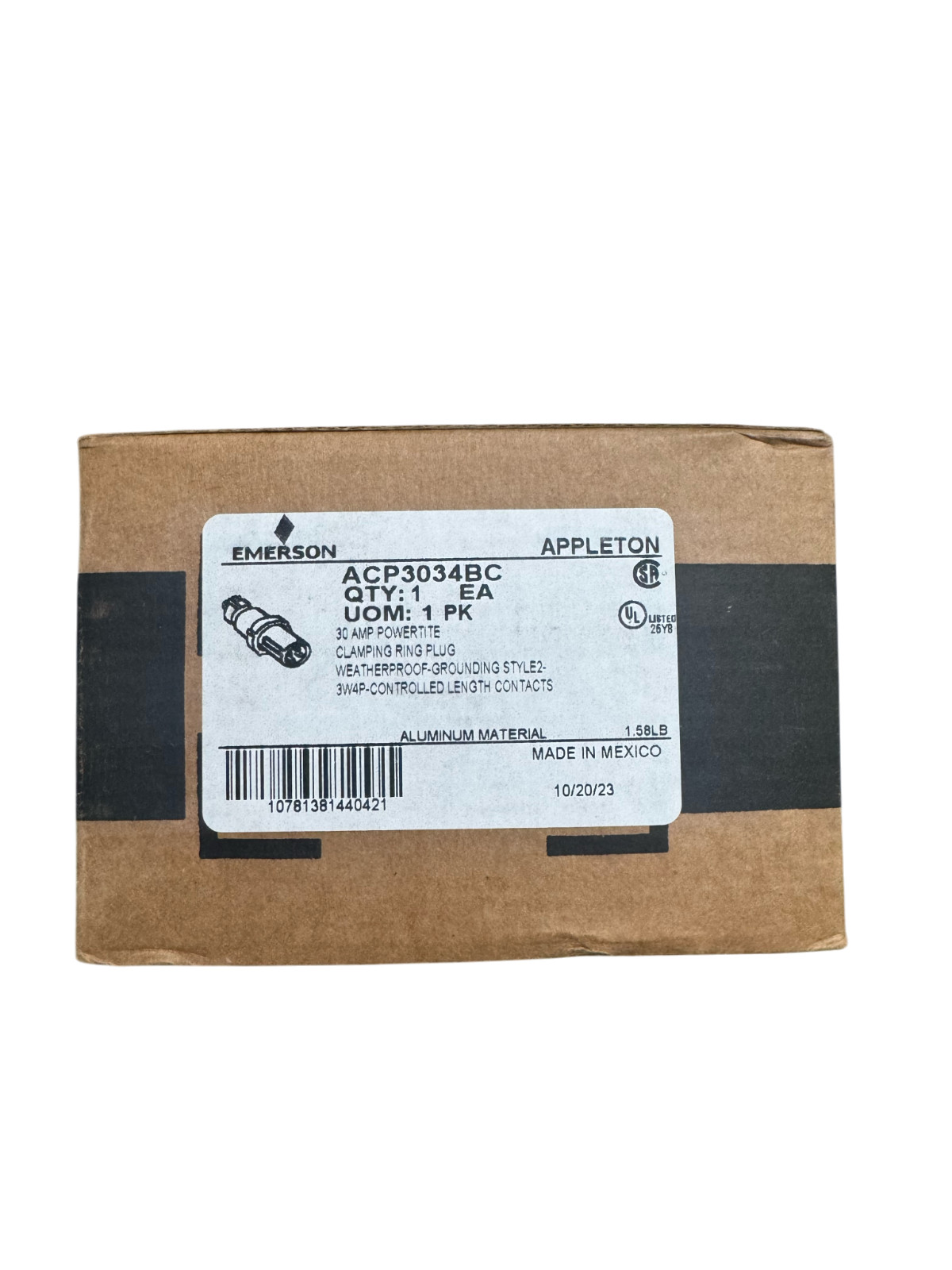

Appleton Powertite ACP3034BC Clamping Ring Plug | 30A | 4-Pole 3-Wire | 600V:
$237.49

FeatureDetailed SpecificationManufacturerEmerson / AppletonModel NumberACP3034BCSeriesPowertite™ Pin and SleeveAmperage30 AmpPhase / Poles3-Phase / 4-Pole 3-Wire (Style 2 Grounding)Voltage Rating600 VAC @ 50–400 Hz / 250 VDCGrounding StyleStyle 2 (Shell and extra pole grounding)Enclosure RatingNEMA 3, 3R, 4, 4X aluminum with epoxy powder coat finishHorsepower Rating20 hpCable Range0.50" to 1.25" diameterWire Size#10 to #6 AWG (Building) / #10 to #8 AWG (Extra Flex)

---

---

---

Appleton Powertite ADR1044RS Pin and Sleeve Receptacle

$289.99

---

Appleton Powertite ACP3034BC Clamping Ring Plug | 30A | 4-Pole 3-Wire | 600V

$237.49

---

Appleton ACP6044BC 60A 4W 4P 600VAC Powertite Aluminum Clamping Ring Plug

$190.00

---
