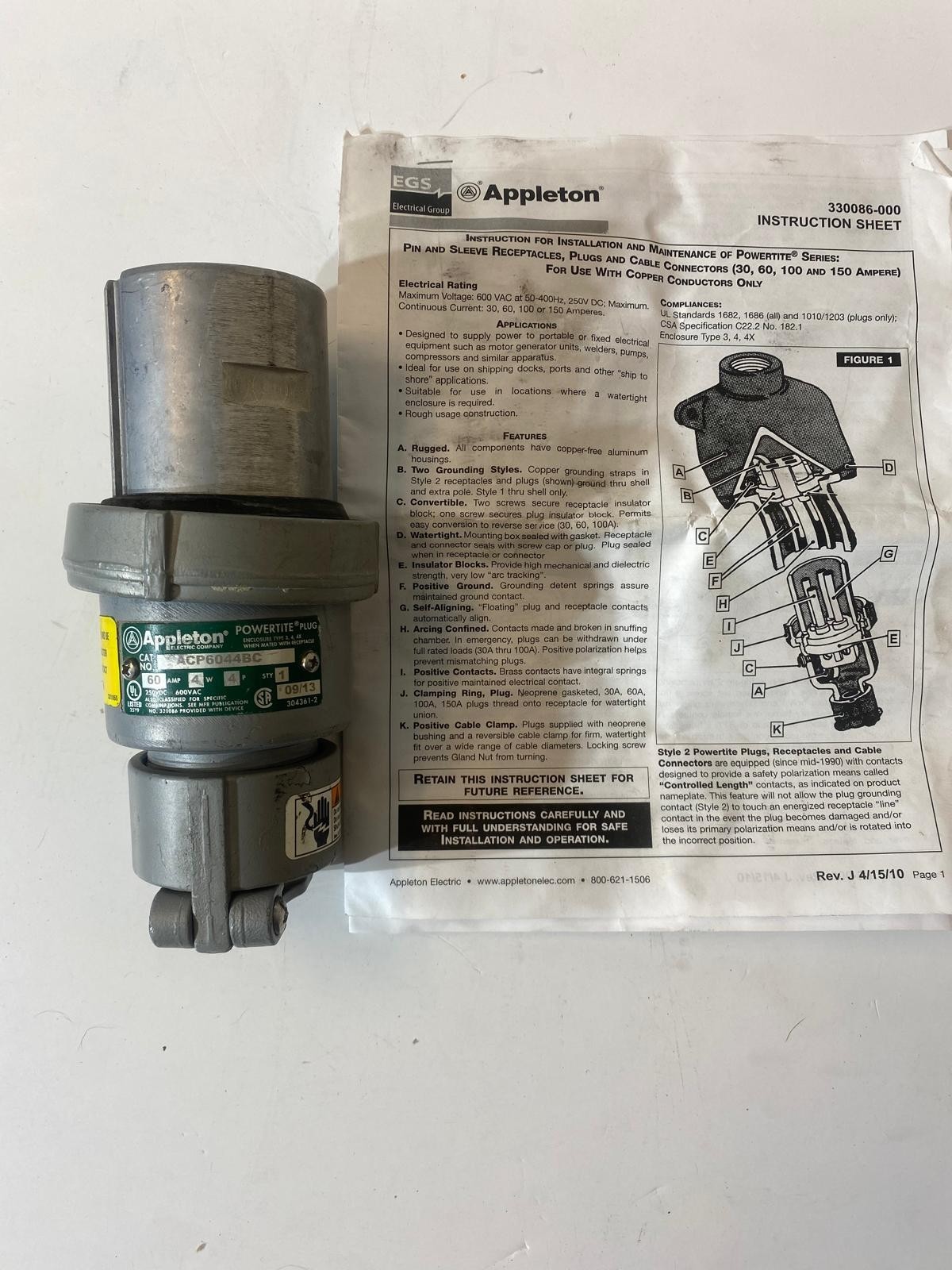

Appleton ACP6044BC 60A 4W 4P 600VAC Powertite Aluminum Clamping Ring Plug:
$190.00
Appleton Electric (EGS Electrical Group) Powertite series heavy-duty pin and sleeve plug. Catalog number ACP6044BC. Rated for 60 Amps, 4-pole, 4-wire configuration, supporting maximum electrical ratings of 600VAC at 50-400Hz and 250VDC. Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, and shipping docks. Includes the original factory installation instruction sheetSpecifications:Amperage: 60 A
Configuration: 4 Pole, 4 Wire (Style 2 Grounding)
Voltage: 600 VAC / 250 VDC
Enclosure Type: NEMA 3, 4, 4X (Watertight)
Material: Copper-free Aluminum
Cable Diameter Range: Compatible with standard 60A neoprene bushings and cable clamps
Condition: New. May show minor cosmetic marks. Sold exactly as shown in photos.
Fast handling and secure packaging. Message us with any questions before purchasing. Thanks for looking!
