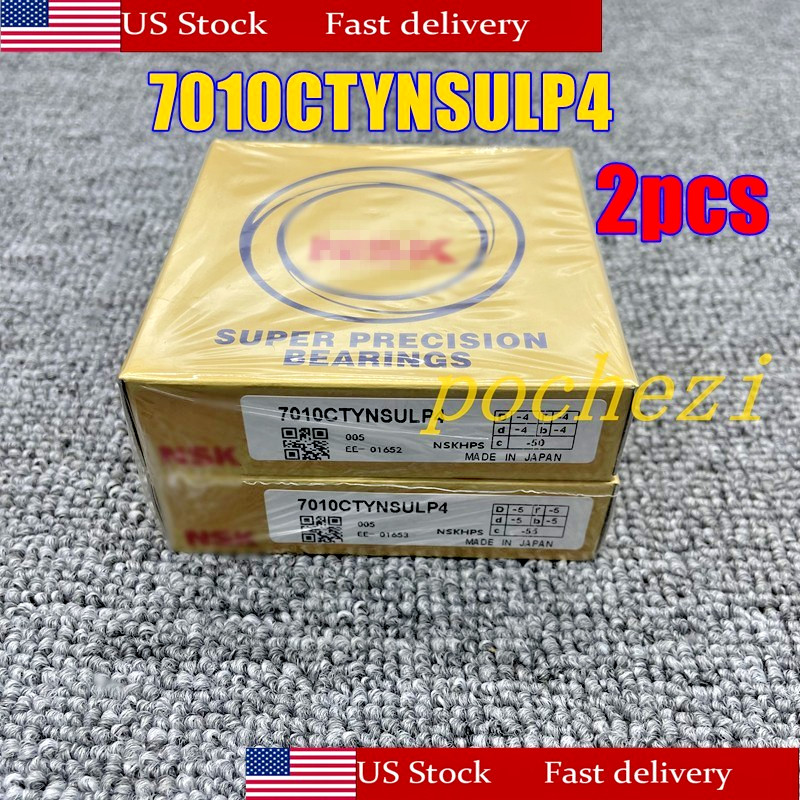

Abec-7 Super Precision Spindle Bearings. 7010CTYNSULP4 Matched Set of Two:
$102.80

NSK 7010CTYNSULP4SUPER PRECISION ANGULAR CONTACT SPINDLE BEARINGS

Brand NSK

Type Angular Contact Ball Bearings

Contact angle C:15 Degree

Cage material TYN:Ball guided polyamide Resin

Rings material Bearing steel (SUJ2)

Rolling elements material Bearing steel (SUJ2)

Arrangement SU:universal Single row for matched set

Accuracy rating P4:ISO Class 4 (ABEC – 7)

Limiting speeds Grease: 17,700 rpm Oil: 27,000 rpm

Dynamic load rating Cr: 26.0 KN

Static load rating Cor: 21.9 KN

Axial load rating Cur:13.9 KN

Dimensions 50mm x 80mm x 16mm

Quantity Two bearings

Made in Japan by NSK ltd.

THIS MATCHED SET OF TWO NSK 7010CTYNSULP4: REPLACES THE FOLLOWING

NSK 7010CTYNDBLP4 NSK 7010CTRDULP4Y NSK 7010CTRDULP4 NSK50BNR10STDUELP4Y

NACHI 7010CYDUP4 NACHI 7010CYDU/GLP4

FAG7010 CT P4S DUL

SKF 7010CD/P4A SKF 7010CD/P4A DBA

FAFNIR 2MM9110WI DUL

BARDEN 110HDL

RHP 7010CTDULP4

---

---

---
