AC 0-150V Analog Voltmeter Analogue Volage Panel Meter Dia. 66.4mm DH52 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

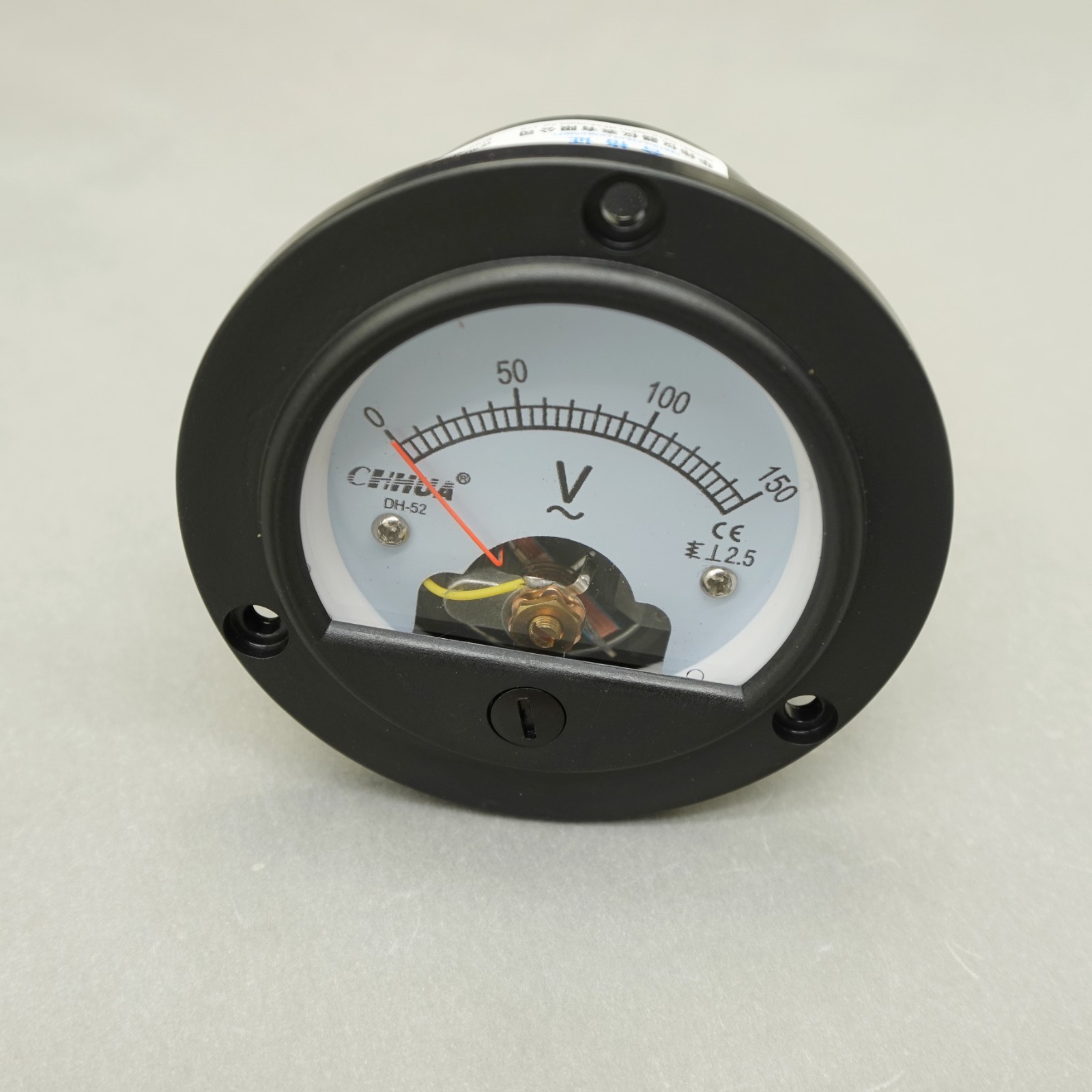

AC 0-150V Analog Voltmeter Analogue Volage Panel Meter Dia. 66.4mm DH52:
$5.28

1PC NEW

AnalogVOLTMETER

PanelACVOLTAGEMeter

AC 0-150V

Panel Face Max. Diameter:66.4mm(2.61")

Panel Cutout Diameter:53mm(2.09")

Need not shunt

Housing Material: Plastic

Measuring Range:AC 0-150V
Accuracy :Class 2.5
withstand voltage:2000V for 1 minute
Damping response time: less than 4S
Operating Temperature: -10 - +55℃

Please note:Import duties, taxes and charges are not included in the item priceor shipping charges. These charges are the buyer's responsibility.

---

---

---

Baomain Analog Dial Panel Meter Voltmeter Gauge SO-45 AC 0-150V Round Black

$12.75

---

AC 0-150V Analog Voltmeter Analogue Volage Panel Meter Dia. 66.4mm DH52

$5.28

---

IME AC voltmeter AN35DDC150 RQ96E 0. 150V NSMP thermal-magnetic

$129.99

---
