5V 30A 150W Enclosed Switching Power Supply PowerSupply1 PS1-150W-5 UL NEW:
$24.99

PowerSupply1.com PS1-150W-5 enclosed switching power supply. 5VDC 30A / 150W output. New and unused.

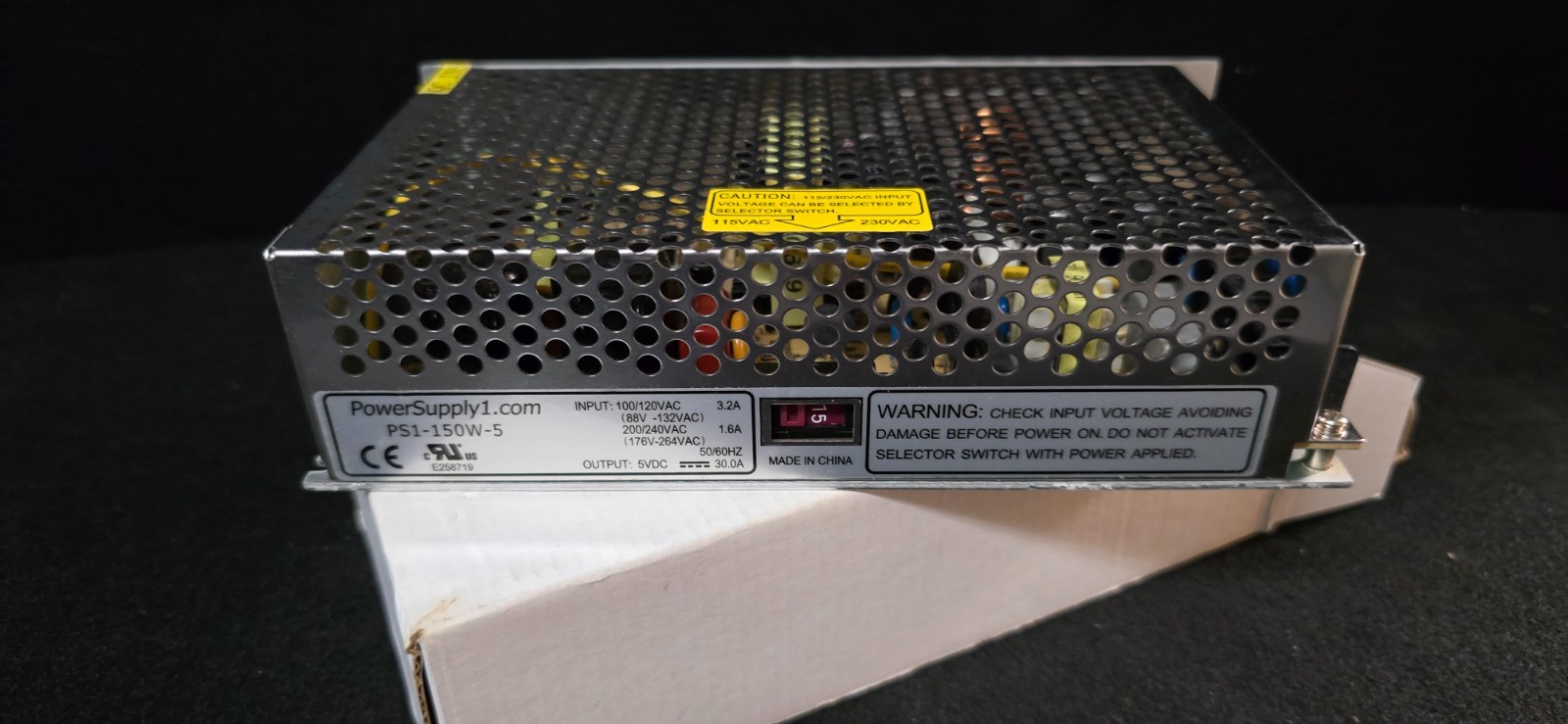

SPECIFICATIONS (from the unit label)Model: PS1-150W-5Output: 5VDC, 30.0A (150W)Input: 100/120VAC 3.2A (88-132VAC) or 200/240VAC 1.6A (176-264VAC), 50/60HzInput voltage selected by a slide switch on the side - 115VAC or 230VACSafety: cULus listed, file E258719. CE marked. RoHS compliant.Made in China
CONNECTIONSScrew terminal block along one end:L and N for AC input, plus a chassis earth terminal+V +V and -V -V for the DC outputV ADJ trimmer for fine output voltage adjustmentGreen power LED
CONSTRUCTIONPerforated steel enclosure with flat mounting flanges and screw holes on the base for chassis mounting. Approx 8 x 5 x 2 inches, 1.5 lb.
IMPORTANT - CHECK THE VOLTAGE SELECTORThis unit has a 115/230VAC selector switch. Confirm it is set correctly for your mains supply BEFORE applying power, and never move the switch while the unit is energised. Running a 115V supply with the switch set to 230V will under-power it; running a 230V supply set to 115V will damage it. The warning is printed on the unit itself.
CONDITIONNew and unused. These do not come in a sealed retail box - they ship from the factory in a plain white carton, which is what you will receive. Each unit carries its QC INSPECTED sticker. I have not bench-tested it, so it is sold as new-old-stock exactly as pictured.
QUANTITYI have two available. The quantity on this listing reflects that.
SHIPPINGShips promptly, well packed.
