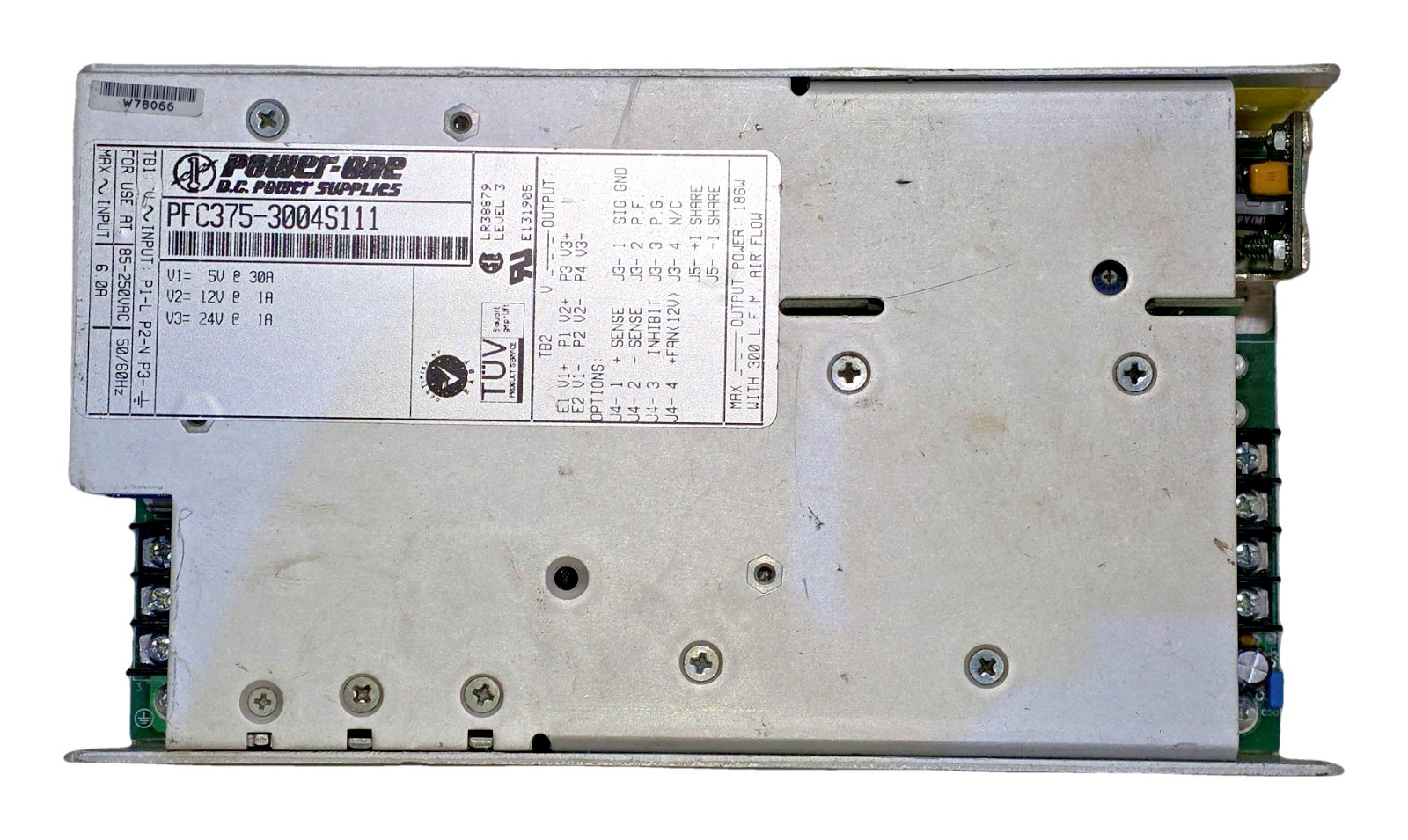

Power-One PFC375-3004S111 AC-DC Power Supply 5V 30A 12V 1A 24V 1A Triple Output For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Power-One PFC375-3004S111 AC-DC Power Supply 5V 30A 12V 1A 24V 1A Triple Output:
$399.99

Zombie Components LLC www.zombiecomponents.com Power-One PFC375-3004S111 PFC375-3004S111 Condition

60 Day Money Back Guarantee.

Specifications ParameterValue Manufacturer part numberPFC375-3004S111Topologyopen-frame AC-DC switcher with active power factor correctionAC input, per nameplate85 to 250 VAC, 50/60 Hz, 6.0 A maxAC input connectionTB1 terminal block, P1 line, P2 neutral, P3 earthOutput V15 VDC at 30 AOutput V212 VDC at 1 AOutput V324 VDC at 1 ACombined nameplate outputapproximately 186 WSeries frame rating375 W maximum, model dependent on output configurationSeries footprintapproximately 9.0 x 5.0 x 2.5 inchesSeries coolingfull rated output with 300 LFM forced airSeries featuresremote sense, power fail signal, logic level inhibit, DC power good, main channel current sharingAgency markings on plateUL file E131905, CSA file LR38879 Level 3, TUV Bauart geprueft, CE mark per series documentationUnit identifier on chassis barcode labelW78066 Included

[Included]

Not included:

Compatibility and requirements

This is an open-frame OEM assembly, not a bench or desktop supply. It requires installation in an enclosure with forced-air cooling and field wiring to the AC terminal block and DC output terminals. Nameplate AC range is 85 to 250 VAC, so it runs on both 120 V and 230 V mains without a range switch. Confirm the output terminal and signal connector pinout against the PFC375 series datasheet before wiring; the S111 suffix denotes a factory option or OEM build variant and pinout details for that variant are not published.

Quality control

Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.

Shipping

Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.

We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.

International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.

Returns, warranty, and money-back guarantee

This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.

All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.

If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
