2PCS DC 12V Linear Actuators Putter Motor W/ Controller Brackets 220LBS Max Lift For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

2PCS DC 12V Linear Actuators Putter Motor W/ Controller Brackets 220LBS Max Lift:
$109.99

2PCS DC 12V Linear Actuators Putter Motor W/ Controller Brackets 220LBS Max LiftProduct DescriptionLinear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
2PCS DC 12V Linear Actuators Putter Motor W/ Controller Brackets 220LBS Max Lift

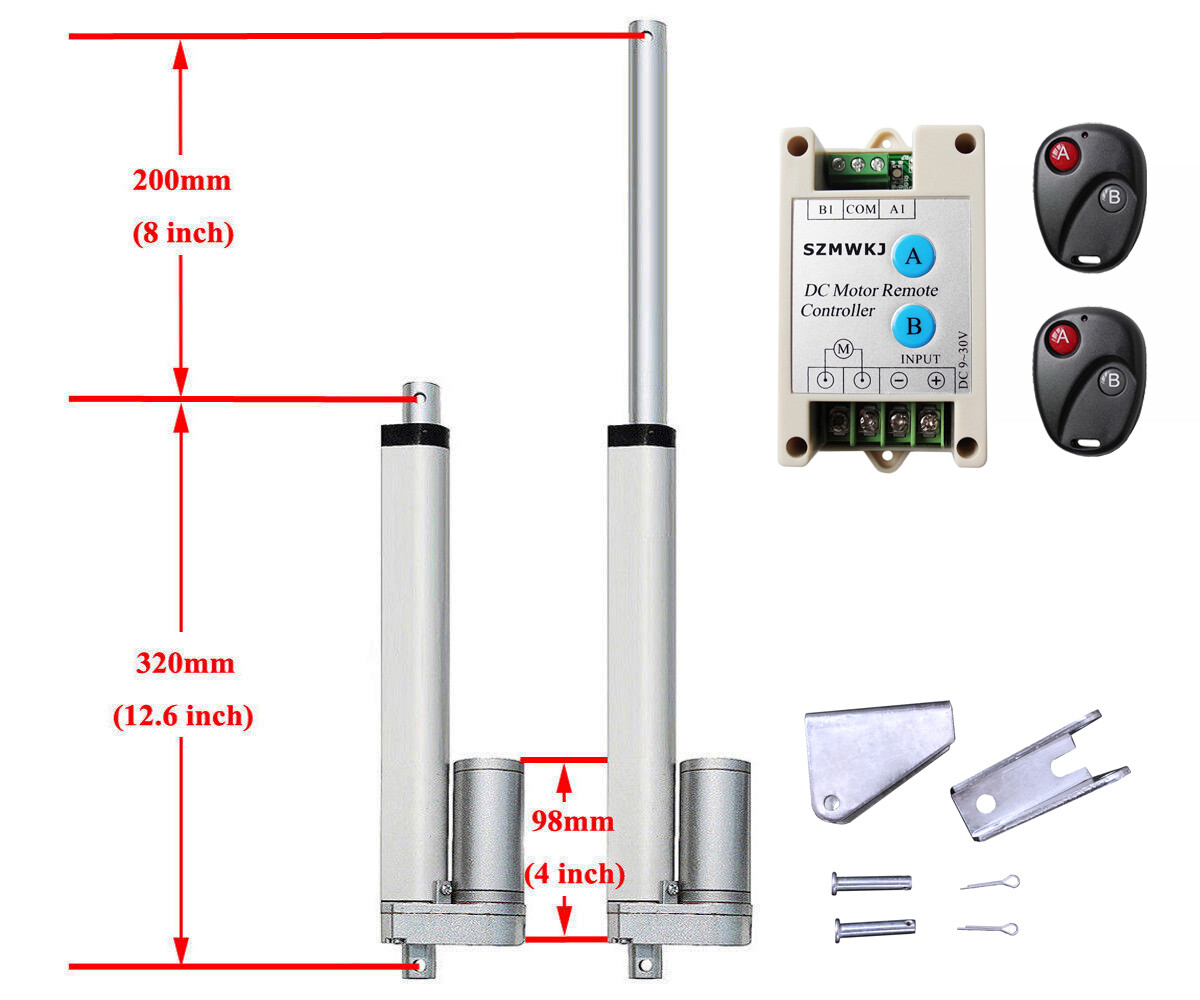

Here for sale is DC 12V Dual Linear Actuator System Kit, It comes with 4PCS Mounting Brackets&1 Set of Wireless Remote Control Kits for easy installation and convenient operation.
The wireless remote control kit can control the 2PCS linear actuators at the same time.

The control kit comes with 2PCS remotes which are very small in size, convenient for operation.

We have paired the 2PCS linear actuators and can guarantee 95%

synchronization for them.

Note 1: The battery in the photo is only for reference and is not included in the package.
Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 5A.
Note 3: If there is no reaction after correct wiring, pls try to exchange the positive and negative pole of the power cord.

* 2PCS 1000N 14mm/s DC 12V Linear Actuators.(Size is AT YOUR OPTION)
*1PCS Motor Controller Box.
*2PCS Wireless Remote Control.
* 4PCSMounting BracketsW/ 4PCSbolt and 4PCS cotter pinfor the linear actuators.

Notes: Pls check each mode carefully and choose the right mode as you need!

Stroke Length

10"

12"

14"

16"

18"

Stroke Length

200mm

250mm

300mm

350mm

400mm

450mm

Retracted Length

320mm

370mm

420mm

470mm

550mm

600mm

Extended Length

520mm

620mm

720mm

820mm

950mm

1050mm

Note: Please check the dimensions carefully and choose the right one as you need.

Product Name

Linear Actuator

Condition

100% New

Input Voltage

DC 12V

Power Cord Length

1.5Meters

Max Push Load

1000N/100KG/220lbs

Max Pull Load

800N/80KG/176lbs

Speed

14mm/s

Duty Cycle

25%

Operating Frequency

20%

Material

Aluminum Alloy

Color

Silver Grey

Operation Temperature

-26 ° C ~ +65 ° C

Protection Class

IP54

No-load Current

< 0.5A

Max load Current

Certification

Warranty

Standard 1 Year

Maintenance

Free-maintenance

* 100% Brand New and high quality

* Heavy Duty and Long Lasting Motor

* High quality aluminum alloy material

* High performance motor

* Built-in high qualitylimit switch

* The low noise design, noise level below 60 dB

* Multiple Purpose Applications Linear Actuator

* Commonly Used In Automotive, Medical Devices and Engineering Industry

* With CE certification

This is TK005-2 Controller with 2 remote controls, itowns the function to control DC brush motor’sforwardrotation andreverse rotation, it can also control two-way DC loads.This controller comes with remote control learning function,users can set one remote to control multiple controllers, one controller can be paired with 3 remotessimultaneously, users can also use 1 remote or 2 remotes,here are two remotes by default,the remote controls and controller have been paired before leaving factory.There are3 working modes: Jog Control, Self-Lock Control and Interlock Control,the 3 modes can be set and switched freely. The controller comes with limit port, users can use the limit function based on actual needs.Specification:

Brand

SZMWKJ

Model

TK005-2

Operating Voltage

DC 9-30V

Max Load Current

10A

Fuse

10A

Control Mode

Jog /Self-lock / Interlock Control

Manual Buttons

Yes

Wireless Remote

Yes

Frequency

433MHZ

Control Distance

≥50Meters

Protection Class

IP42

Operating Temperature

-20℃to + 60℃

Controller Dimension

Net Weight

115g

Package Weight

155g

Warranty

Standard One Year

Features:

*Wide voltage design, operating voltage range is DC 9-30V.

*Can control forward and reverse rotation of DC brush motors, can also work as a switch to control two-way DC loads.

*Three working modes (Jog Control, Self-Lock Control, Interlock Control) can be set freely.

*The controller is with replaceable internal fuse, with over-current and short-circuit protection function.

*Can be operated by the wireless remote control or the manual buttons on the controller box.

*The controller comes with remote learning function, it can be paired with 3 remotes simultaneously.

*With highly sensitive receiver, remote control distance ≥ 50meters.

*The controller is with low standby power, standby current ≤9mA.

For more details of our Wireless Remote Controller,PlsClick HereThis bracket provides easier installation, and allows for nearly 180 degrees ofrotation.
These are designed to fit easily onto either end of the actuator with a pin and cotter pin.
For more details of our Mounting Brackets,PlsClick Here* Autos;
* The wedding system;
* Solar tracking system;
* Agricultural machinery;
* Industrial electric lifting system;
* The medical electric bed, surgical bed, traction bed;
* Chair for medical use: Electric wheelchair, Massage Chair, dental chair;
* Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc
