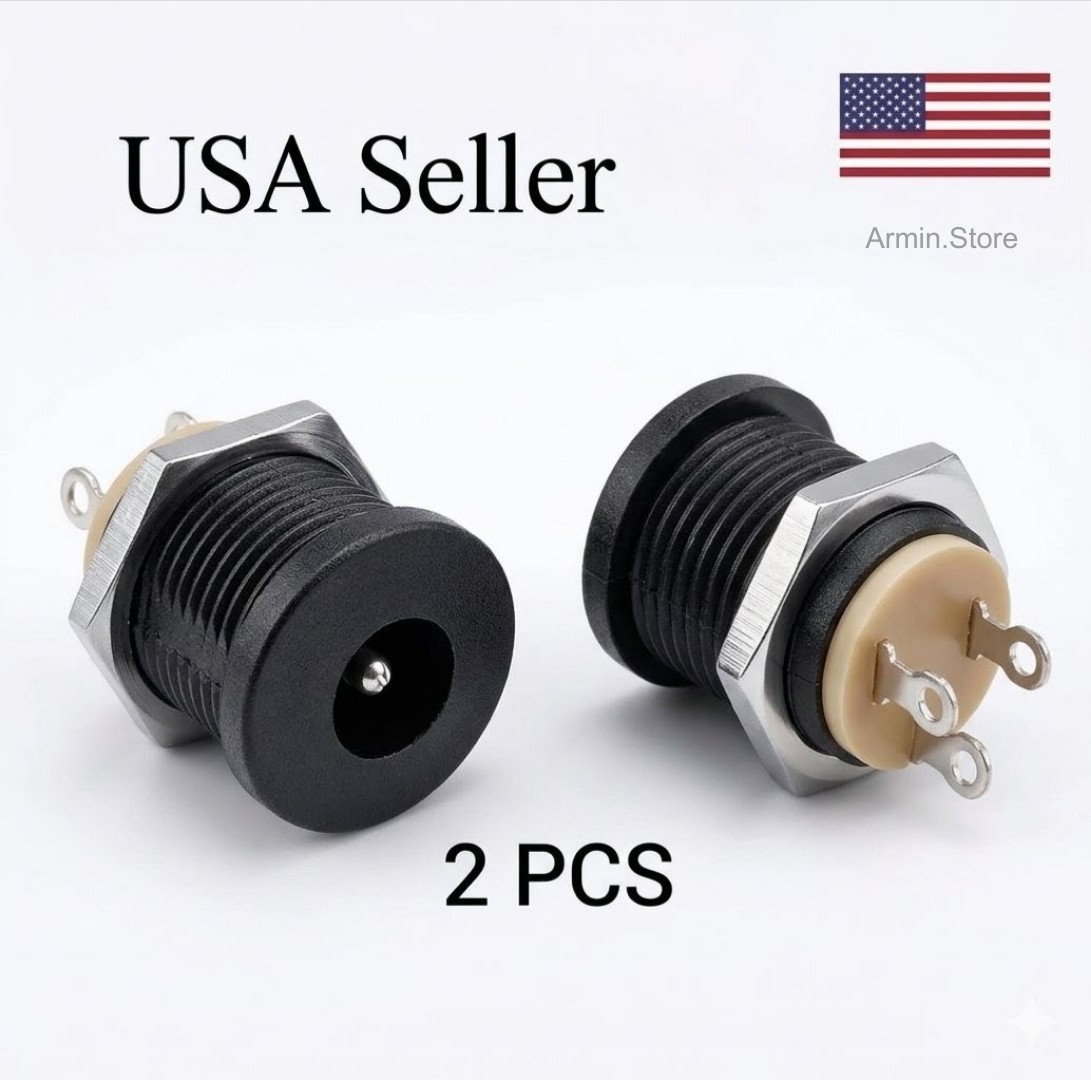

2 PCS DC-022 5.5-2.1 /5.5 x 2.1mm DC Power Socket/ DC Connector Female Panel New For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

2 PCS DC-022 5.5-2.1 /5.5 x 2.1mm DC Power Socket/ DC Connector Female Panel New:
$3.78

2 Pcs DC-022 5.5-2.1 / 5.5 x 2.1mm DC Power Socket/ DC Connector Female Panel. Condition is "New". Shipped with USPS First Class.

Feature:

Insulation Resistance: >=100 Mohm Withstand Voltage: AC 500V(50Hz)/min

Actuating Force: 3-20N Life: 5000 times

Specifications:

Gender: Female Suitable Plug Size: 2.1x5.5mm

Screw Diameter: 12mm Temperature: -40~55 deg C

Rated Load: DC30V/0.5A Contact Resistance: <=0.03 ohm

Package Included:

2 x DC Power Outlet Inner Pin 2.1mm 5.5x2.1mm DC-022 Diameter 5.5mm

---

---

---
