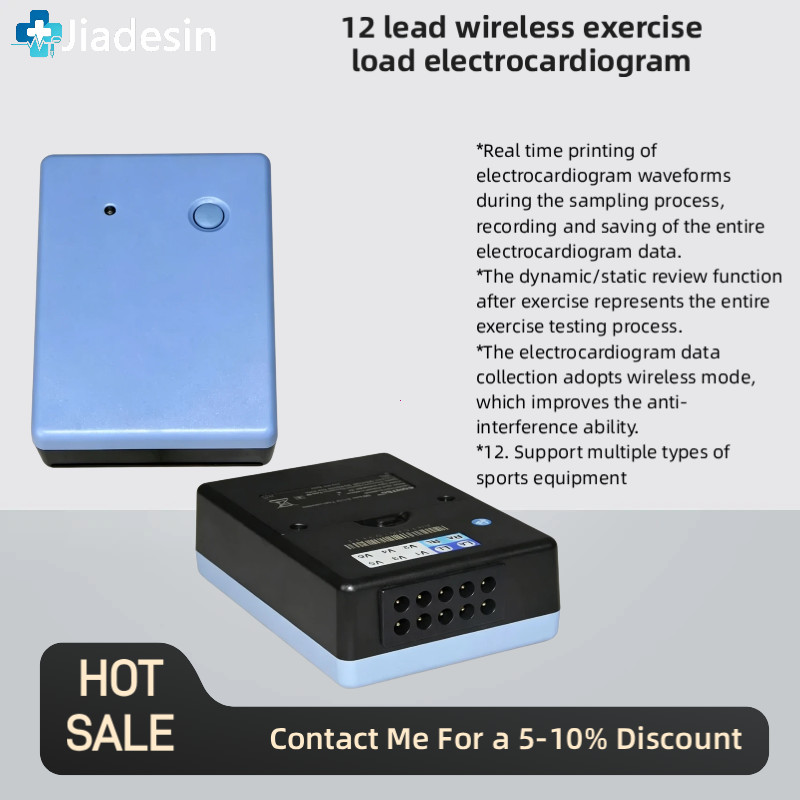

12-Lead Wireless Exercise Stress ECG Transmitter Test System + Software For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

12-Lead Wireless Exercise Stress ECG Transmitter Test System + Software:
$499.00

Introduction

The Stress ECG Analysis System consists of a sampling hardware device, specialized software system, and exercise equipment. Its functions include 12-lead synchronous ECG sampling, data storage, ST segment analysis, ECG review in dynamic/static/superimposed modes during the entire exercise process, trend chart analysis of multiple parameters, and multiple printable reports. The patient's exercise state can be recorded timely and accurately, reflecting heart function and providing reliable data for doctors in diagnosis.

Key Functions

Print ECG waveform in real-time during sampling; record and save ECG data of the whole process
Real-time observation of ST segment changes, enlarged display of user-selected lead, automatic calculation of ST-related data
Anti-interference technology ensures baseline stabilization and reduces EMG interference, baseline drift, and AC interference on ECG waveforms
Available for both standard and user-defined exercise schemes; automatic instantaneous notice of print and BP measure can be set according to exercise phase
Operator can mark events during exercise; marked event ECG waveforms can be compared with current waveforms. Events can be observed, edited, and printed after exercise
Display and print of various trend charts, mainly including: HR, BP, METS, HR*BP, exercise trend, ST segment level/influence/slope/3D/J level and ST/HR, etc.
Dynamic/static review function after exercise, representation of the whole exercise testing process
Case Import/Export function. Compress cases for storage, taking up less disk space. Compressed cases are associated with file types in the operating system, making import operations simple and quick
System setting function includes multiple setting items, such as switching Chinese/English language, format and mode of displaying waveform (12 leads × 1 column / 6 leads × 1 column / 6 leads × 2 columns / 3 leads × 2 columns / 3 leads × 1 column, etc.), background color, print-related settings, filter settings, and display of optional parameters
Multiple functional tools for device management, case statistics, and other operations
Wireless mode of ECG data sampling improves anti-interference capability
Supportive for various types of exercise equipment

Performance Specifications

Patient Leak Current:<10µA
Input Impedance:≥50MΩ
Frequency Response:0.05Hz～150Hz (-3dB~+0.4dB)
Time Constant:≥3.2s
Common Mode Rejection Ratio (CMRR):>60dB, >100dB (filter on)
Calibration Voltage:1mV
Sampling Frequency:max. 1000 Hz
Sampling Accuracy:max. 24 bits
Input Loop Current:≤50nA
Polarization Resistance Voltage:±500mV
Noise Level:≤15µVp-p
Safety Type:Internally powered equipment, Type BF

Physical Characteristics

Dimension:94mm (L) × 66mm (W) × 31mm (H)
Weight:Approx. 200g (without battery)

Package Included

✅ 1 × Stress ECG Transmitter
✅ 1 × Wireless Network Card
✅ 1 × Lead Cables
✅ 1 × Electrodes Pad (20 PCS)
✅ 1 × Grounding Wire
✅ 2 × Velcro
✅ 1 × Serial-Port Cable
✅ 1 × USB Cable
✅ 1 × Software Dog
✅ 1 × Serial-Port Card
✅ 1 × User Manual
