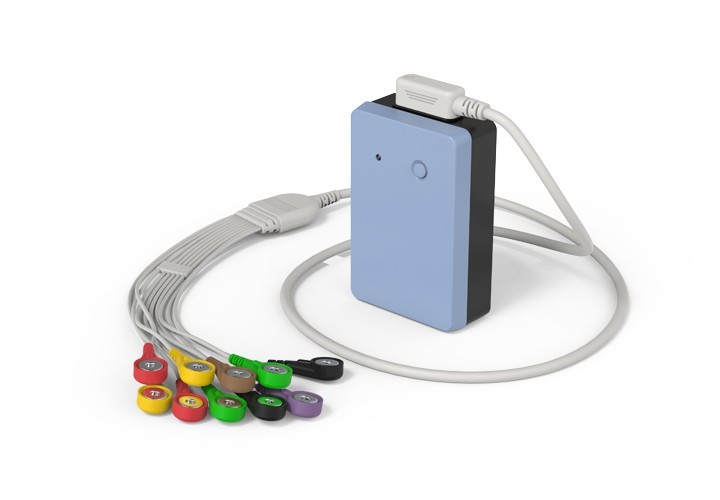

12 Lead Wireless Exercise Stress ECG Machine EKG Holter Recorder Analysis System:
$499.00

Upper Arm Blood Pressure Monitor 24h BP Recorder+Software+Finger Pulse OximeterWireless Stress ECG System with PC softwareDescription

Instruction

The Stress ECG Analysis System is consist of sampling hardware device, special software and exercise equipment etc. Its functions include 12 leads ECG synchronously sampling, saving the data of the whole exercise process, ST segment of the whole exercise process, ECG review/replay/average review of the whole exercise process, Multiple trend chart analysis, and multiple printable report etc. The patient's exercise state can be recorded, the heart exercise function can be showed. Then doctor can get reliable advice in diagnoses.

Features

1. Print ECG waveform in real-time during sampling process, record and save ECG data of whole process.

2. Observation of the changes of ST segment in real-time, enlargement display of user selected lead, automatic calculation of ST related data.

3. Adopt anti-interference technology to ensure the stabilization of baseline, reduce the effect on ECG waveform from EMG interference, baseline drift and AC interference.

4. Available for both standard and user-defined exercise scheme, automatic instantaneous notice of print and BP measure can be set according to exercise phrase.

5. Operator can mark events during exercise, the ECG waveform of marked event can be compared with current waveform. The event can be observed, edited and printed after excise.

6. Display and print of all kinds of trend chart. Mainly including: HR, BP, METS, HR*BP, exercise trend, ST segment level/influence/slope/3D/J level and ST/HR, etc.

7. Dynamic/static review function after exercise, representation of the whole exercise testing process.

8. Case Import/Export function. Compress the case for storage, which takes up less disk space. The compressed case shall be associated with the file type in operation system. This will make the import operation much more simple and quick.

9. System setting function includes multiple setting items. For example, switching Chinese/English language, format and mode of displaying waveform (12 leads * 1column / 6leads * 1column / 6leads * 2columns / 3leads * 2columns / 3 leads * 1column, etc), color of background, print related setting, filter setting and displaying of optional parameters, etc.

10. Provide multiple functional tools, which are used for device management, cases statistics and other operations.

11. Wireless mode of ECG data sampling, improves the anti-interference capability.

12. Supportive for variety types of exercise equipment

Performance

 Lead: Standard 12 leads

 Gain setting and accuracy: three levels: 5, 10, 20 mm/mV, accuracy: ±5%

 Time base and accuracy: 12.5 mm/s, 25 mm/s, 50 mm/s,accuracy: ±5%

 CMRR: ＞89 dB

 Calibration voltage: 1 mV, deviation within ±5%

 Input impedance: >2.5 MΩ

 Noise level：≤30µVp-p

 Amplitude-frequency characteristic:

Method Rated input amplitude（mV） Input frequency and waveform Relative output response

A 1.0 0.67 Hz ～ 40 Hz，Sine wave ±10 %a

B 0.5 40 Hz ～ 100 Hz，Sine wave +10 %, -30 %a

0.25 100 Hz ～ 150 Hz，Sine wave +10 %, -30 %a

C 0.5 150 Hz ～ 500 Hz，Sine wave +10 %, -100 %a

D 1.5 ≤1 Hz ,200 ms,Triangle wave +0 %, -10 %b

a relative to 10 Hz

b relative to 200 ms

 Accuracy of input signal reconstruction:±5%

 Minimum detection signal:A sinusoidal signal with a deflection of 10Hz、20µV(p-p)

 Patient leakage current: <10 µA

 Sampling frequency of waveform data processing: 1 kHz

 Sampling accuracy: 24 bits

 Safety type: Type BF defibrillation-proof applied part

 Power supply:Two AA alkaline batteries

Accessories

Bluetooth adapter 1pc

Lead cable 1pc

Chest electrode 20pc

Ground wire 1pc

Hook and loop fasteners 1pc

Serial cable 1pc

Software installation USB flash drive 1 pc

Security Dongle 1pc

User manual 1pc

Physical Characteristic

Dimension: 90mm(L) *62mm(W)*28mm(H

Weight: about 94.6g (without battery)
