10W 3535 Infrared LED 4chips 4-LEDs IR 740nm 808nm 850nm 940nm 3V6V12V led bead For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

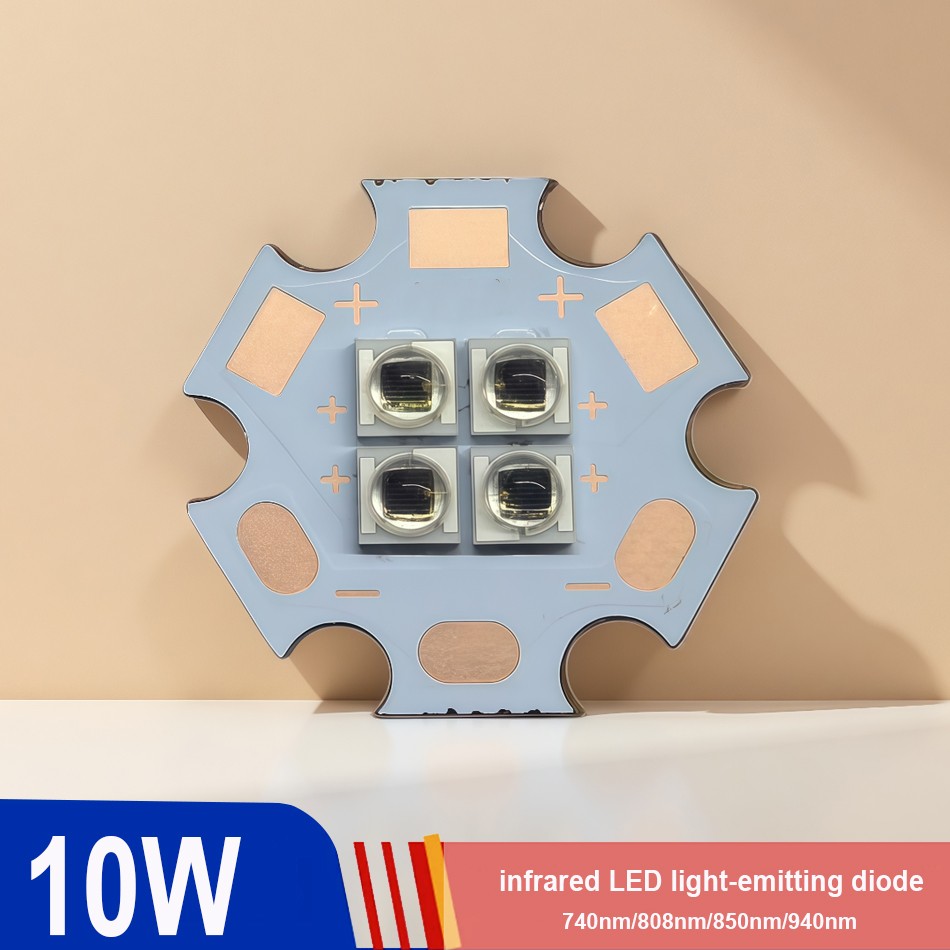

10W 3535 Infrared LED 4chips 4-LEDs IR 740nm 808nm 850nm 940nm 3V6V12V led bead:
$6.32

High power led Bead 10W 4LEDs Infrared lamp light 740nm /808nm /850nm Type:10w 740nm/808/850/940nmLED ChipVoltage:3V/6V/12V PCB for option

Working Voltage: 3V, Current: 2800mA
WorkingVoltage: 6V, Current: 1400m
WorkingVoltage: 3V, Current: 700mA

View Angle: 115-120degreesChips:4pcs 3535 740nm/808/850/940nm LEDWavelength:740nm/808/850/940nm LELens color: water clearPCB board: Diameter 20mm Copper PCB basResin (Mold): Silicone ResinLifeSpan Time : > 50,000 hoursAttention to the heat,working temperature maintained at 50 degrees Celsius or lower as possible

---

---

---

10W 3535 Infrared LED 4chips 4-LEDs IR 740nm 808nm 850nm 940nm 3V6V12V led bead

$6.32

---

740nm 808nm 850nm 940nm 10W 3535 Infrared LED 4-LEDs IR 3V 6V 12V led bead

$42.78

---

XP-G4 HI 10W 3A 1017 Lumens 6500K 5000K SMD 3535 LED

$5.58

---
