XP-G4 HI 10W 3A 1017 Lumens 6500K 5000K SMD 3535 LED For Sale

XP-G4 HI 10W 3A 1017 Lumens 6500K 5000K SMD 3535 LED
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

XP-G4 HI 10W 3A 1017 Lumens 6500K 5000K SMD 3535 LED:
$4.38

Product Description

XP-G4 LEDs are are the fourth generation of LED’s standard-setting XP-G product family, featuring both best-in-class efficacy and optical performance. New features in this generation include a higher maximum drive current of 3000 mA and an optimized optical profile that maximizes on‑axis light output.

With the same mechanical dimensions as XP-G3, the XP-G4 is an easy upgrade path for many high‑power LED designs. XP-G4 provides higher maximum current and lower thermal resistance than competing high‑power LEDs, enabling new levels of output and reliability for many lighting applications.

XP-G4 LEDs are optimized for a wide range of directional lighting applications where light control and long lifetime are critical, including outdoor, indoor premium, architectural, portable and entertainment.


Product Features

- Available in no CRI minimum white, 70-, 80- and 90-CRI white

- ANSI-compatible chromaticity bins

- Broadcast color option at 5700 K provides maximum performance for TV events that require extremely high TLCI

-3-step and 5-step options

-Binned at 85 °C

-Maximum drive current: 3000 mA

-Wide viewing angle: 120°

-Unlimited floor life at ≤ 30 ºC/85% RH

-Reflow solderable

-Electrically neutral thermal path

-RoHS and REACH compliant

-UL recognized component

(Remarks: General description from official description)


Package Content:

1 x XP-G4 HI LED


on KDLitker DTP Copper MCPCB

Product Description:

Material:
CopperLEDs:

XP-G4 HI C4 1B White 6500K /

XP-G4 HI C2 3A Neutral White 5000K

(Imported)

(Options)

Base Plate Dim.:

10mm (Dia.) x 1.5mm (Thickness) /

16mm (Dia.) x 1.5mm (Thickness) /

20mm (Dia.) x 1.5mm (Thickness)

(Options)

Weight:5g
Buy Now

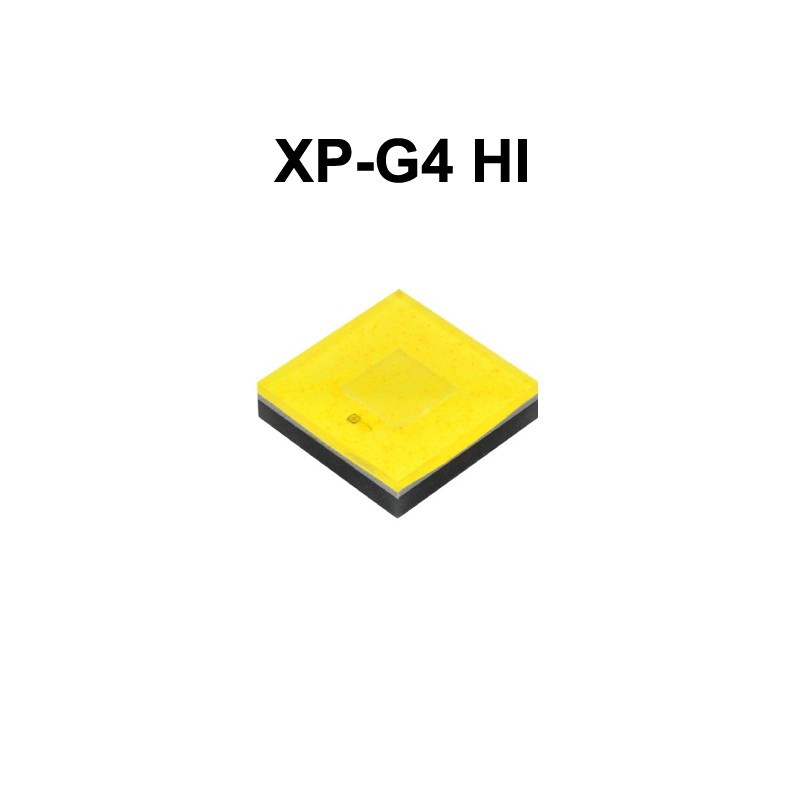

XP-G4 HI 10W 3A 1017 Lumens 6500K 5000K SMD 3535 LED picture

XP-G4 HI 10W 3A 1017 Lumens 6500K 5000K SMD 3535 LED

$5.58
