x2 HEYCO LIQUID TIGHT SNAP IN CORD GRIP CABLE GLAND M4830GAG SCG 1.093\":
$12.99

>SEE ALL MY LISTED HEYCO ITEMS CLICK HERE<

>SEE ALL MY LISTED LIQUID TIGHT CORD GRIPS CLICK HERE<

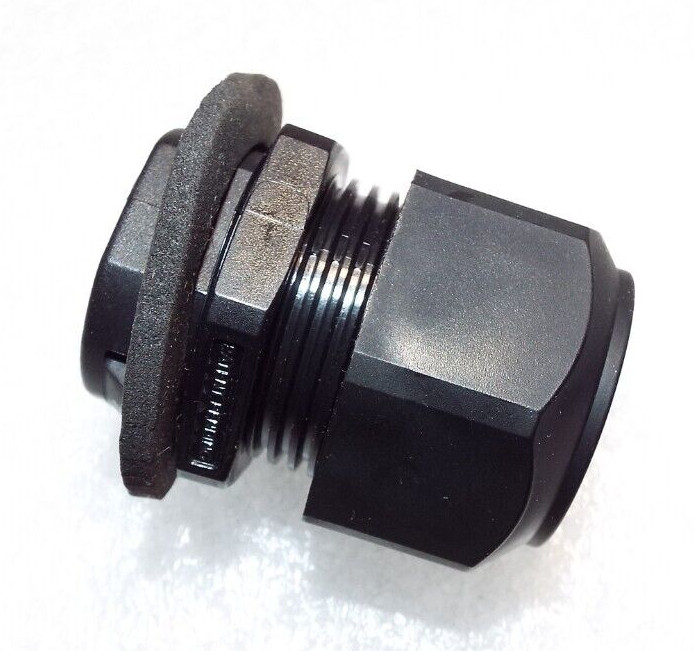

LiquidTight Cordgrips Cable Gland

Multi-Hole, Snap-In Hubs - IP 64 Rated

The Ultimate in Liquid Tight Strain Relief Protection

QUANTITY 2 IN THIS SALE

For use in Clearance Holes in Panels: 1.093\" CLEARANCE

from .032˝ (0,8 mm) to .093˝ (2,4 mm) Thick

NO NUT NEEDED: \"SNAP IN\"

FOAM SEALING WASHER INCLUDED

COLOR: BLACK

CLEARANCE PANEL HOLE: .032\"> .093\" 0,8 MM > 2,4 MM

LIQUID TIGHT CORDGRIP STRAINRELIEF

MULTI 4 HOLE SINGLE WIRESNAP IN HUB

IP 64 RATED

MATERIAL: NYLON 6/6 WITH TPE SEALING GLAND

FLAMABLE RATING: 94V-2

TEMP RATING: -22 F (-30 C) >212 F (100 C)

PART# M4830GAG SCG 1093

WIRE SIZE SINGLE: AWG 10/4 & 12/4 5,2 MM

CONDUCTOR TYPE: USE-2 UNDERGROUND SERVICE ENTRANCE

MOUNTING HOLE DIAMETER: 1.093\"27,8 MM

TO PREVENT ROTATION: .97\" 24,6MM (OR DOUBLE D)

OVER ALL LENGTH: 1,75\" 44,5MM

SOLAR PANEL INTERIOR &EXTERIOR

House multiple wires at one entrypoint providing a liquid tight sealaround each wire and at the panel.

Easy installation–Unique fingerssecurely lock into a range of panelsizes without use of locknut.

No tools required.Secure “click in place” fit reducestightening errors by installers.

Limited intrusion into enclosurewhere access is tight.

Ideal when individual conductors forpower or control are used rather thanjacketed cable.

Made of nylon construction with TPEsealing glands that resist salt water,weak acids, gasoline, alcohol, oil,

grease, and common solvents.

Rotation prevented when used in“Double D” mounting holes.

Ratchet design of sealing nutassembly provides superioranti-vibration and ensures a firm grip

on the cable.

USE-2

U=Underground
S =Service
E =Entrance

USE-2 cable stands for Underground ServiceEntrance cable. USE-2 cable can be used underground since it is able withstandpressure and is resistant to other elements such as sunlight (black only), oiland gas. USE-2 is a good choice for industrial applications where betterinsulation toughness and resistance to moisture and heat are desired. USE-2 canbe used as RHW-2 or RHH cable at temperatures up to 90°C in wet or drylocations.

What does the “-2” stand for? It is adesignation used for the 90° C temperature rating. In the past, there was aplain USE, but it is now generally considered obsolete and replaced by USE-2.
